Viglen BX130 - Upgrading the CPU

Viglen BX130 – VIG385P User Manual
26

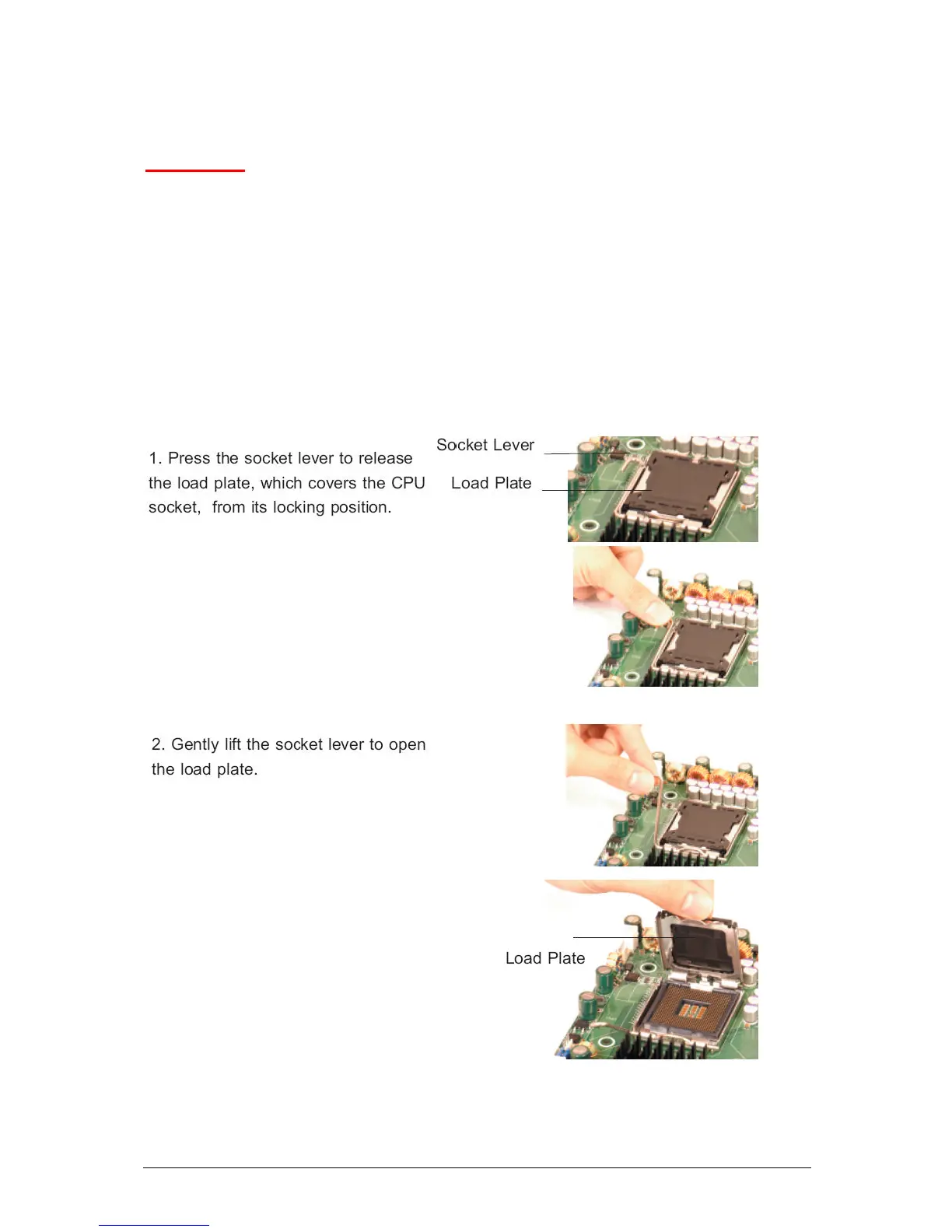

Upgrading the CPU
CAUTION!
Allow time for the processor and heatsink to cool before touching either of
them.
NOTE: When installing a single CPU it MUST be installed in the CPU slot for
the system to work. The CPU slot nearest the edge of the Motherboard. Refer
to the System board components page for the clear location of CPU.
Figure 9: Heatsink components
