TECHNICAL SUPPORT 1 800 908 0884
34
10.85"
2.15"
3.10"
13.49"
8.05" 2.79"
Grade Level
3.05" I.D.
Consult Local Codes
for Depth and Concrete
Requirements
3.00"O.D. Pipe
(Maximum)
Mounting Nut
Washer
Pipe Stand
Washer
Mounting Bolt
Reinforcement
Bracket
F-1 or R-6
Gate Operator
F-1 or R-6 Gate Operator
(sold separately)
Secure Stand to Pipes
Using (6) Supplied Bolts
Note:
All Mounting Hardware
Supplied with Pipe Stand

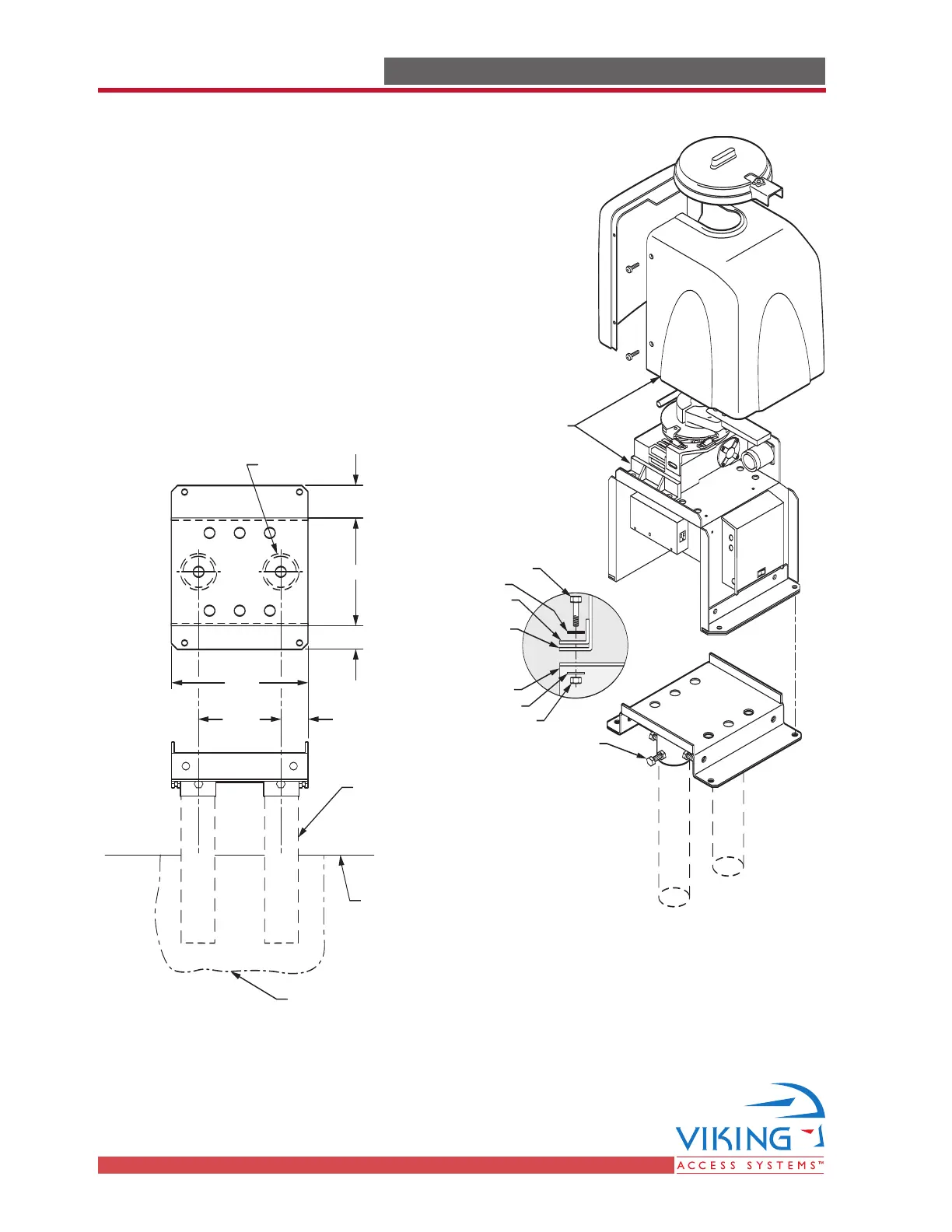

VIKING PIPE STANDVIKING PIPE STAND
Part No. VA-F1PS
For Viking F-1 & R-6 Vehicular Gate Operator
Standard Features
• Main pieces made of 1/4” thick material
• All hardware included
Installation
1. Remove Chassis Reinforcement Brackets and Bolts
2. Place Operator on Pipe Stand
3. Replace Chassis Reinforcement Brackets
4. Attach the Operator and Brackets to the Pipe Stand
using the Mounting Bolts, Nuts and Washers
supplied with the Pipe Stand
5. Tighten Bolts securely
6. Refer to F-1 or R-6 Manual for Plan of Installation
