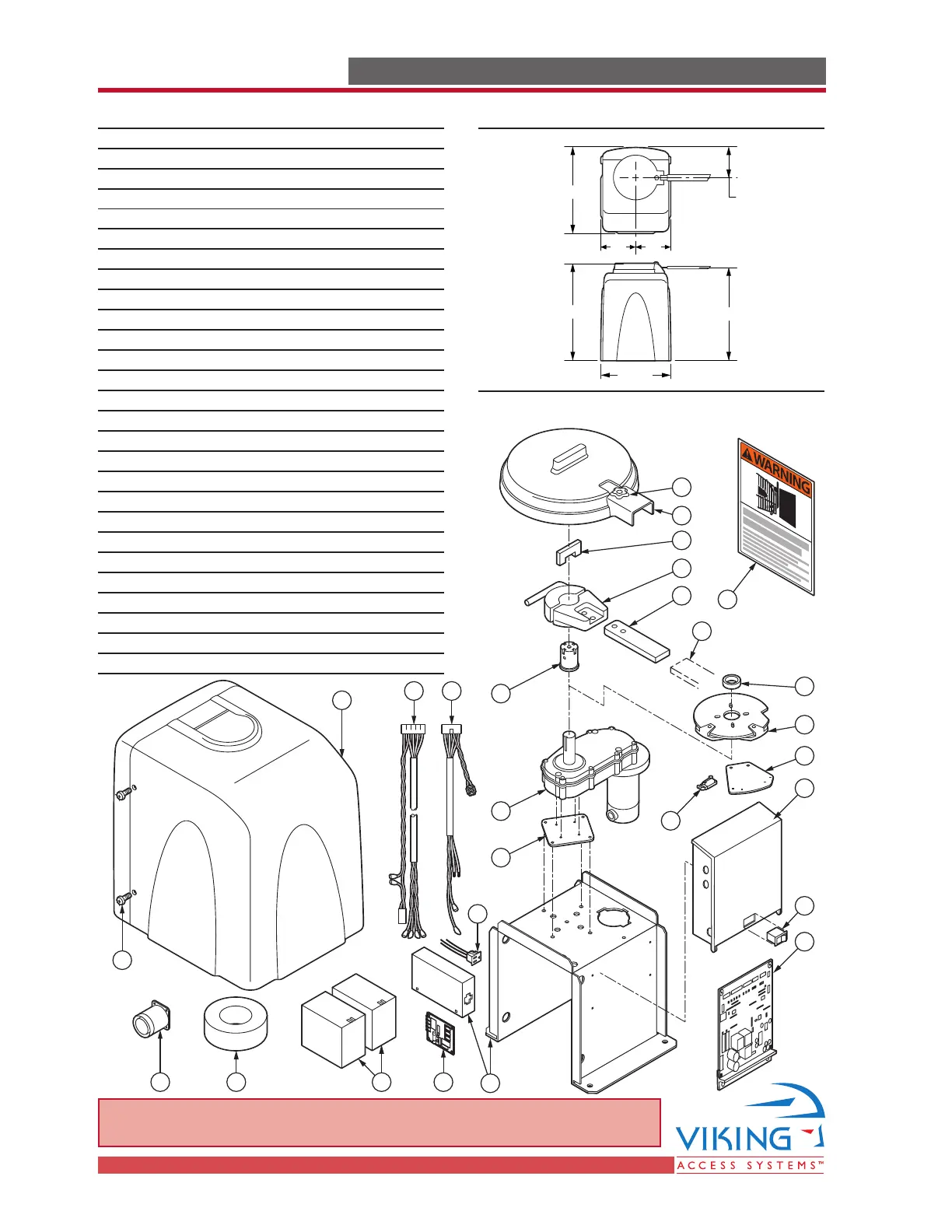

PARTS DIAGRAMPARTS DIAGRAM
16
17
1819
4
5
3
2
1
26 Multi-Part Arm
See Page 11 for
Additional Details
20
7
8
6
13
15
14
10
9
11
24
21
25
12
27
2223
Item Description
Part No.
1 Output Shaft Knob
DWOUK10
2 Output Shaft Cover DWOC20
3 Clutch Key VAWRCK20
4 Clutch and Handle DWCL20
5
Output Arm DWAR20
6 Output Shaft R6OP10
7 24V 1/2 HP DC Motor VAR6MO
8 Motor Base Plate
R6MBPL10
9 Spacer DWSPA10
10 Limit Cam & Holder DWLC10
11 Limit switch (2) DULS10
12 Limit switch Holder R6LH10
13 Electric Box DUEB10
14 Reset Switch DUMRS5
15 Control Board
DUPCB20-R6
16 Chassis R6CH10
17 120V Receptacle DUOL120
18 EMI Board DUEMI10
19 Battery DUBA12
20 Toroid Transformer DUTT10
21 Alarm DUAL10
22 Power Harness VAF1PHA
23 Limit Switch Harness VALSWH
24 Operator Cover R6CO10
25 Operator Cover Bolt VASWCB
26 Multi-Part Arm
VA-F1ARM20
27 Warning Placard DUWPA
Overall Dimensions
Weight 100 lb.
WARNING - For Installation By Qualified Personnel Only.
21-1/2"
16-1/2"
1
9-3/4"
E
Q
E
Q
6
-1/4"
1
9-1/4"
