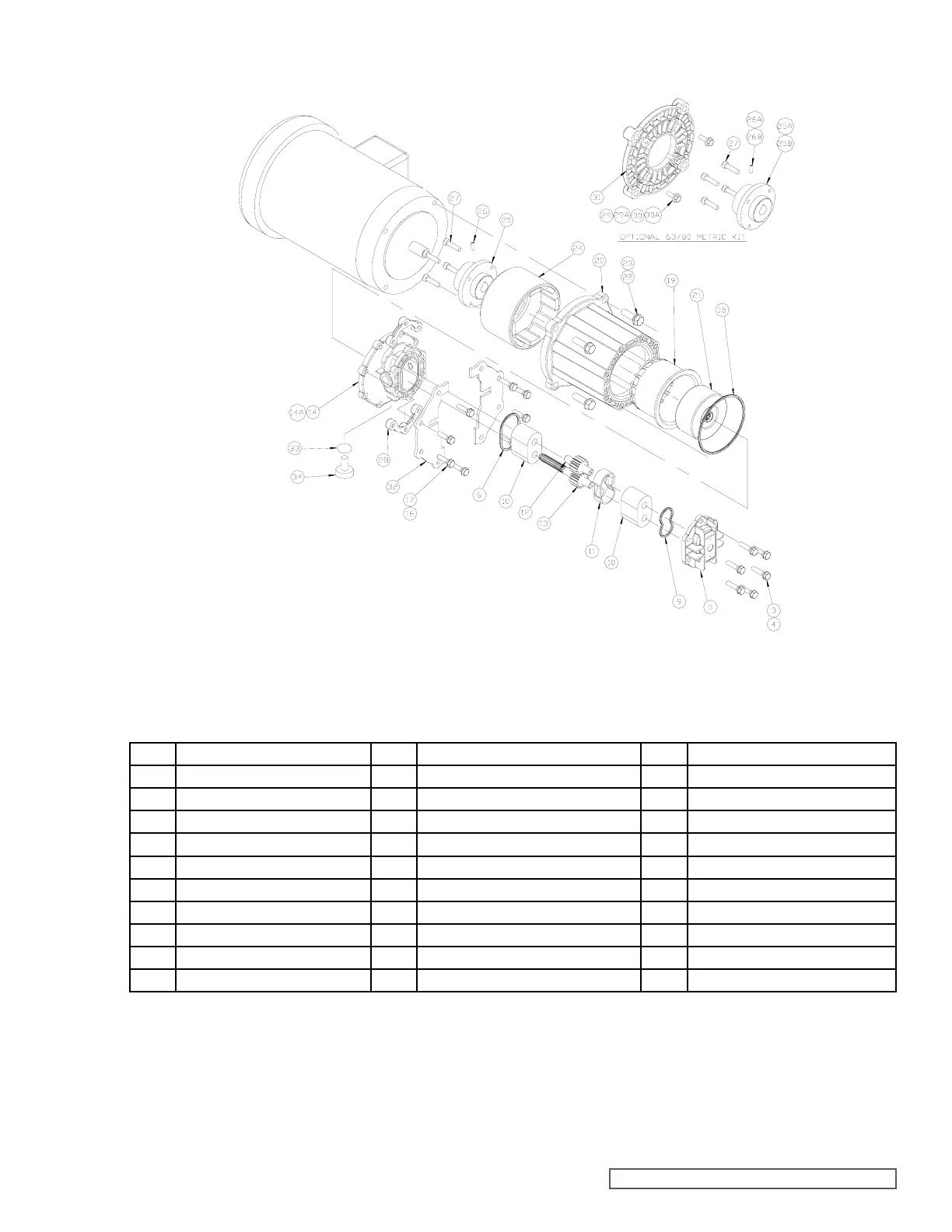

SECTION TSM 344 ISSUE E PAGE 5 OF 24
2 Drive Screw 14 Center Housing 25 Coupling Hub
3 Bolts 15 O-Ring, Containment Canister * 26 Set Screw
4 Washers 16 Bolts 27 Screws
5 Front Cover 17 Washers 28 Nut Plate
6 O-Ring, Cover * 19 Containment Canister 29 Bolts
9 O-Ring, Compression * 20 Adapter, Spool 30 Washer
10 Bearing * 21 Driven Magnet Assembly 31 Adapter, Motor
11 Housing Liner * 22 Bolts 32 Retaining Plate
12 Idler Gear Assembly * 23 Washer 33 O-Ring, Drain Plug *
13 Drive Gear Assembly * 24 Drive Magnet 34 Drain Plug
