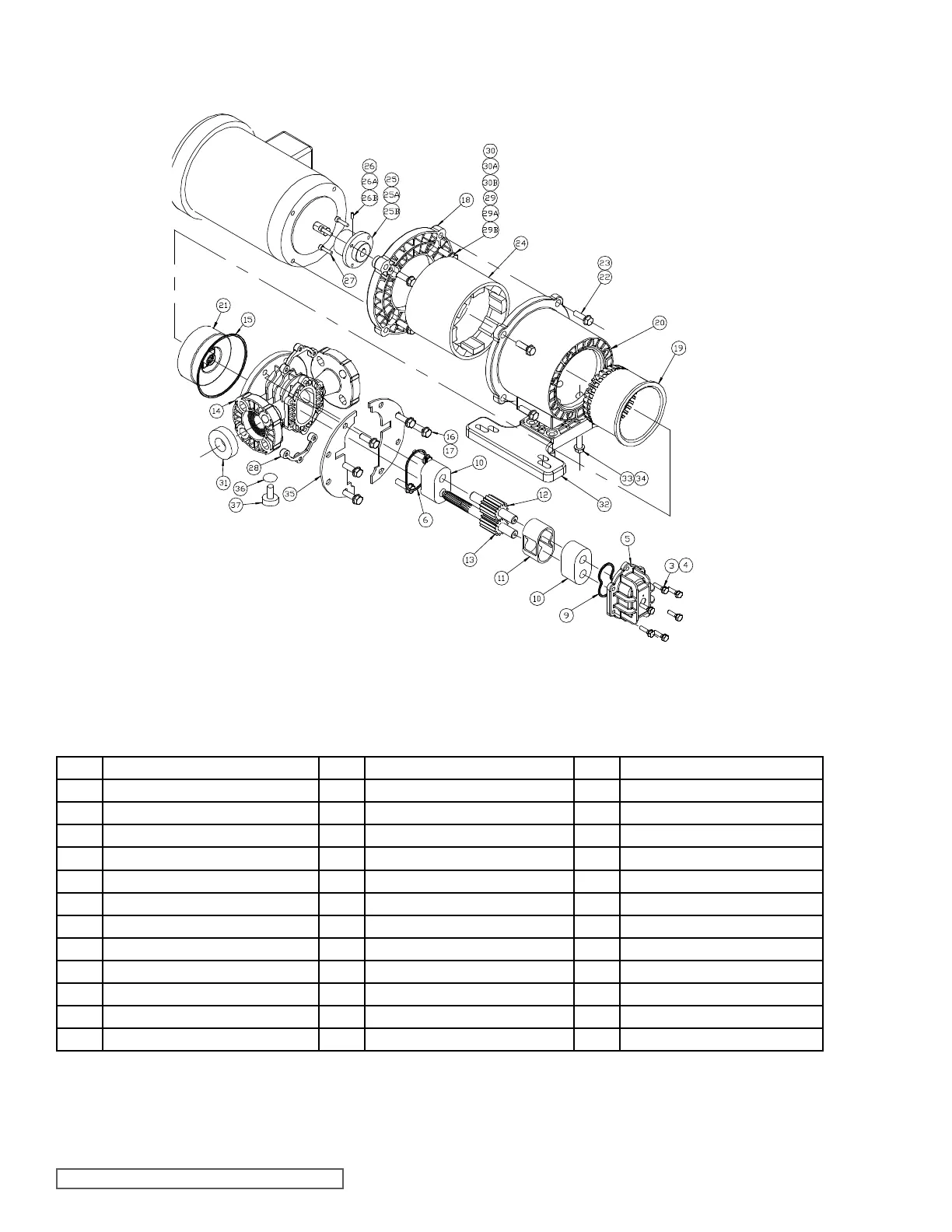

SECTION TSM 344 ISSUE E PAGE 8 OF 24
2 Drive Screw 16 Bolts 28 Nut Plates
3 Bolts 17 Washers 29 Bolts
4 Washers 18 Adapter, Motor 30 Washer
5 Front Cover 19 Containment Canister 31 Flange Gaskets
6 O-Ring, Cover * 20 Adapter, Spool 32 Mounting Base
9 O-Ring, Compression * 21 Driven Magnet Assembly 33 Bolt
10 Bearing * 22 Bolt 34 Washer
11 Housing Liner * 23 Washer 35 Retaining Plate
12 Idler Gear Assembly * 24 Drive Magnet 36 O-Ring, Drain Plug *
13 Drive Gear Assembly * 25 Coupling Hub 37 Drain Plug
14 Center Housing Flange 26 Set Screw
15 O-Ring, Containment Canister * 27 Screws
