Viking 30'' W - VEDO 205 Lower Self-Clean Latch Service; Oven Removal for Latch Servicing; Procedure for Accessing Latch Mechanism

41
VEDO 205
Illustration 1 Illustration 2
LOWER SELF-CLEAN LATCH
The oven will have to be removed from the
wall to service the lower self-clean
latch and the
components located on the latch mechanism.
! Remove the oven doors to lighten the load.

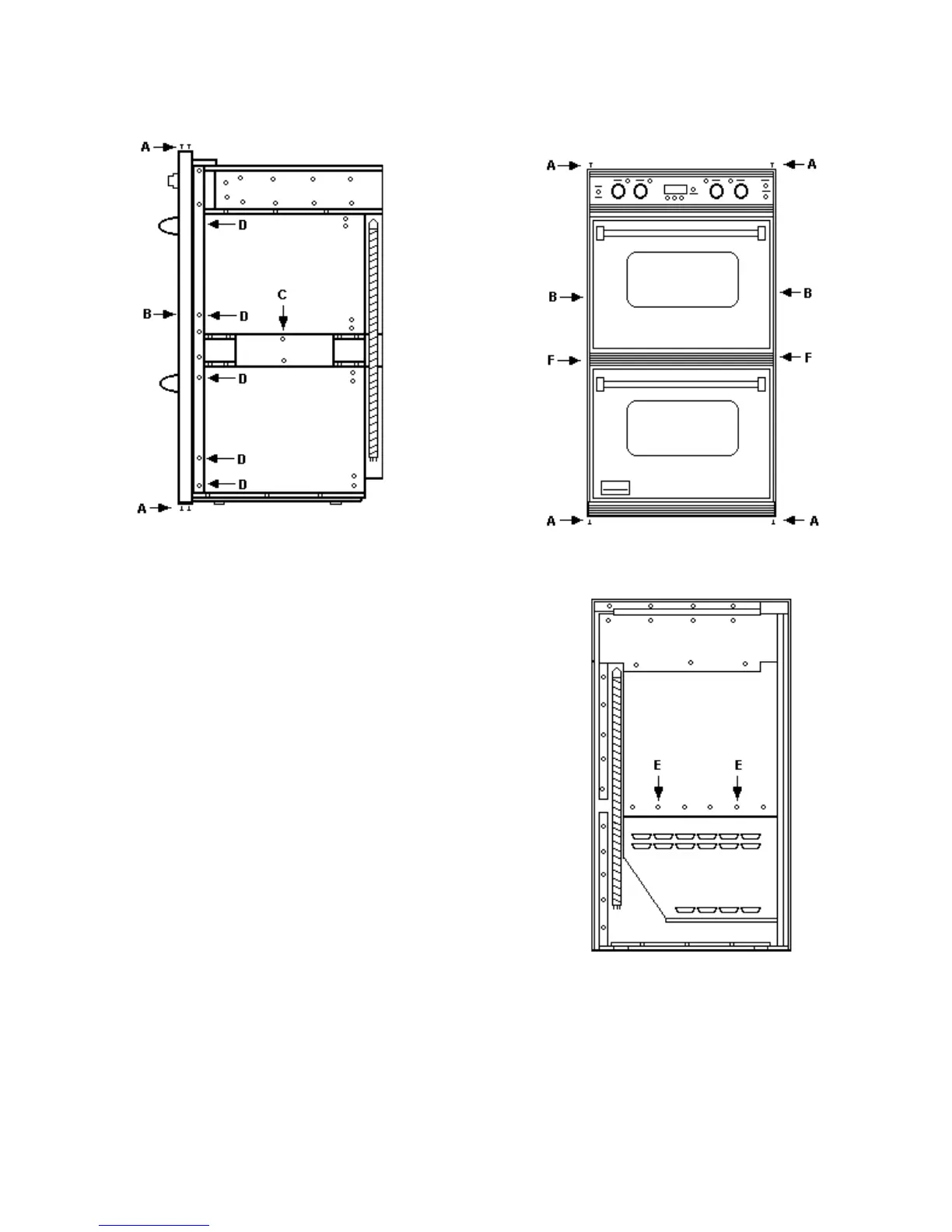

! Remove the side trim pieces “B” by removing
the top and lower screws marked “A” and the
screws along the side marked “D” on (Ill. #1).
! Remove the center trim “F” (Ill. #2).
! Remove the brackets “C”, one on each side of
the oven.
! Tilt the upper oven back, hinging on the rear
screws “E” (Ill #3).
ILLUSTRATION 3
