Viking 30'' W - Burner and Element Technical Specifications; Burner Wattage and Amperage Ratings; Element Resistance and Operating Values

49
Left Rear (Dual Element) Burner
2400W / 1000W @ 240 vac 10A / 4.2A
1800W / 750W @208 vac 8.7A / 3.6A
Left Front Burner
1500W @ 240 vac 6.3A
1125W @ 208 vac 5.4A
Right Rear Burner
1800W @ 240 vac 7.5A
1350W @ 208vac 6.5A
Bridge Heater
800W @ 240 vac 3.4A
600W @ 208 vac 2.9A
Right Front Burner
1800W @ 240 vac 7.5A
1350W @ 208 vac 6.5A

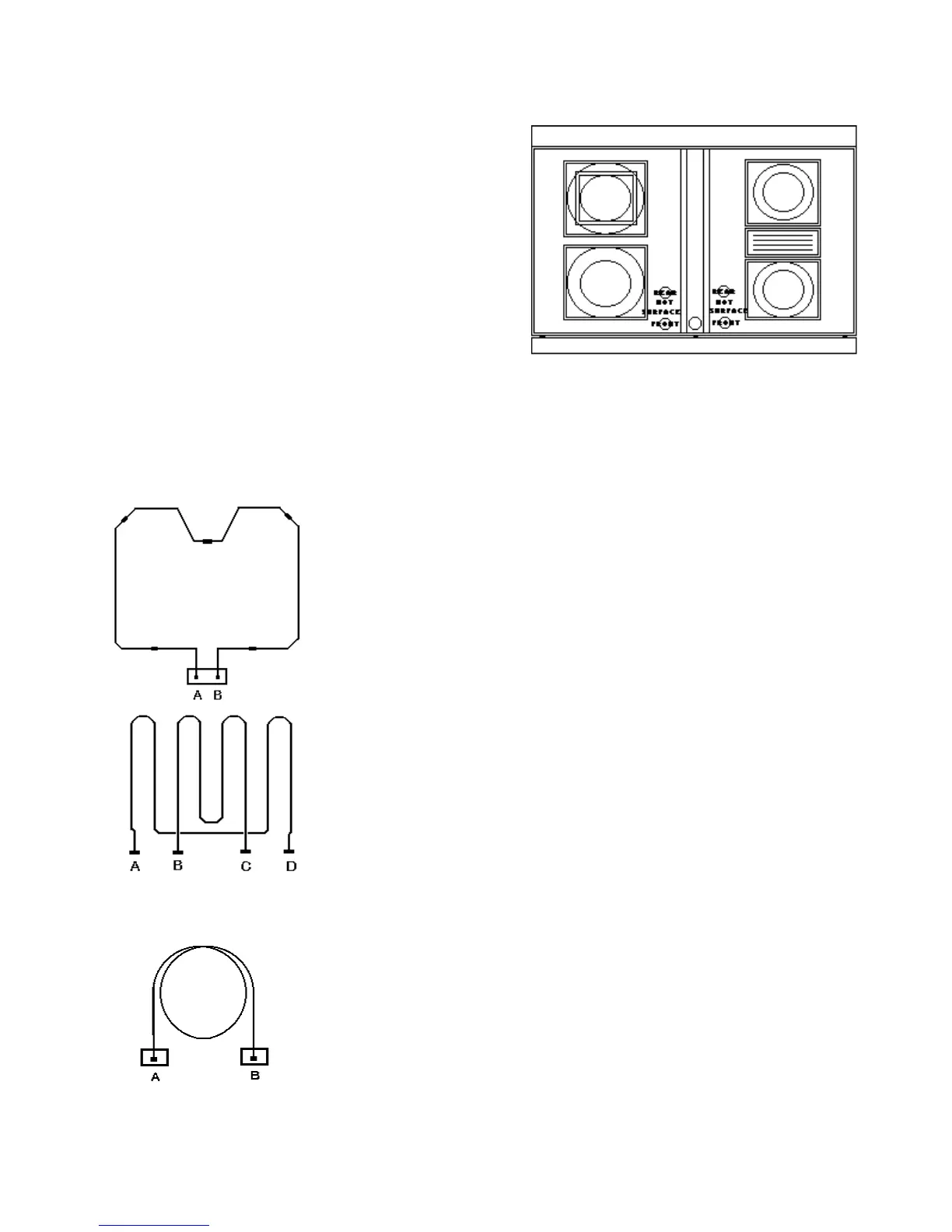

Bake Element “A” to “B” 21.1 ohms
“A” to “B” 240 vac during bake and convection bake
120 vac during self-clean
2935W @ 240 vac 12.2 A
2205W @ 208 vac 10.6A
Broil Element “A” to “D” (outside element) 32.6 ohms
“A” to “D” 50 vac during bake and convection
bake
240 vac during maxi broil
240 vac during convection broil
240 vac during self-clean
“B” to “C” (inside element) 32.6 ohms
“B” to “C” 70 vac during bake and convection bake
240 vac during mimi broil
240 vac during maxi broil
240 vac during convection broil
240 vac during self-clean
Maxi broil 3000W @ 240 vac 12.5A
2255W @ 208 vac 10.8A
Mini broil 1250W @ 240 vac 5.2A
940W @ 208 vac 4.5A
Convection Element “A” to “B” 26 ohms
“A” to “B” 240 vac during convection cook
2200W @ 240 vac 9.2A
