VDSC305 SELF-CLEAN LOCK (con’t)

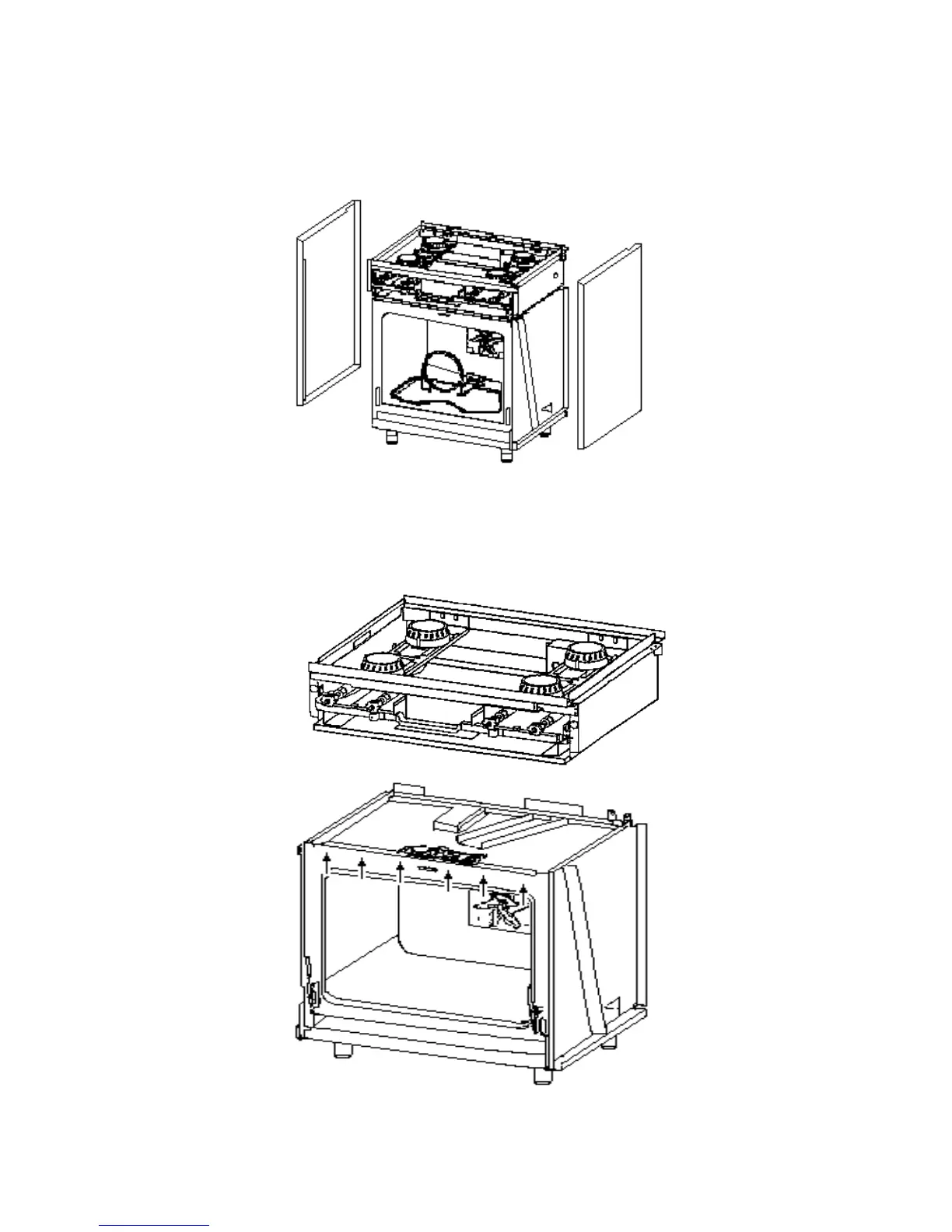

Remove both side panels and insulation
Remove the six(6) screws along the upper frame above the door that hold the burner box assembly to the
oven body. Lift the front of the burner box high enough to gain access to the self-clean lock and associated
components (High Limit Switch and Cooling Fan Switch.) Use a block, approximately 6" high, to hold the
burner box in place while working on the lock.
