Module and Heater Assembly
1. Remove module and support assembly.
2. Install module and support assembly on
replacement mold and heater assembly.
Fill Cup
1. Remove module and support assembly.
2. Remove ejector blades and shut-off arm.
3.
Pull fill cup from mold.
Ice Maker
Ejector Blades or Stripper
1. Remove module and support assembly.
2. Install ejector blades, realigning “D”
coupling with module cam.

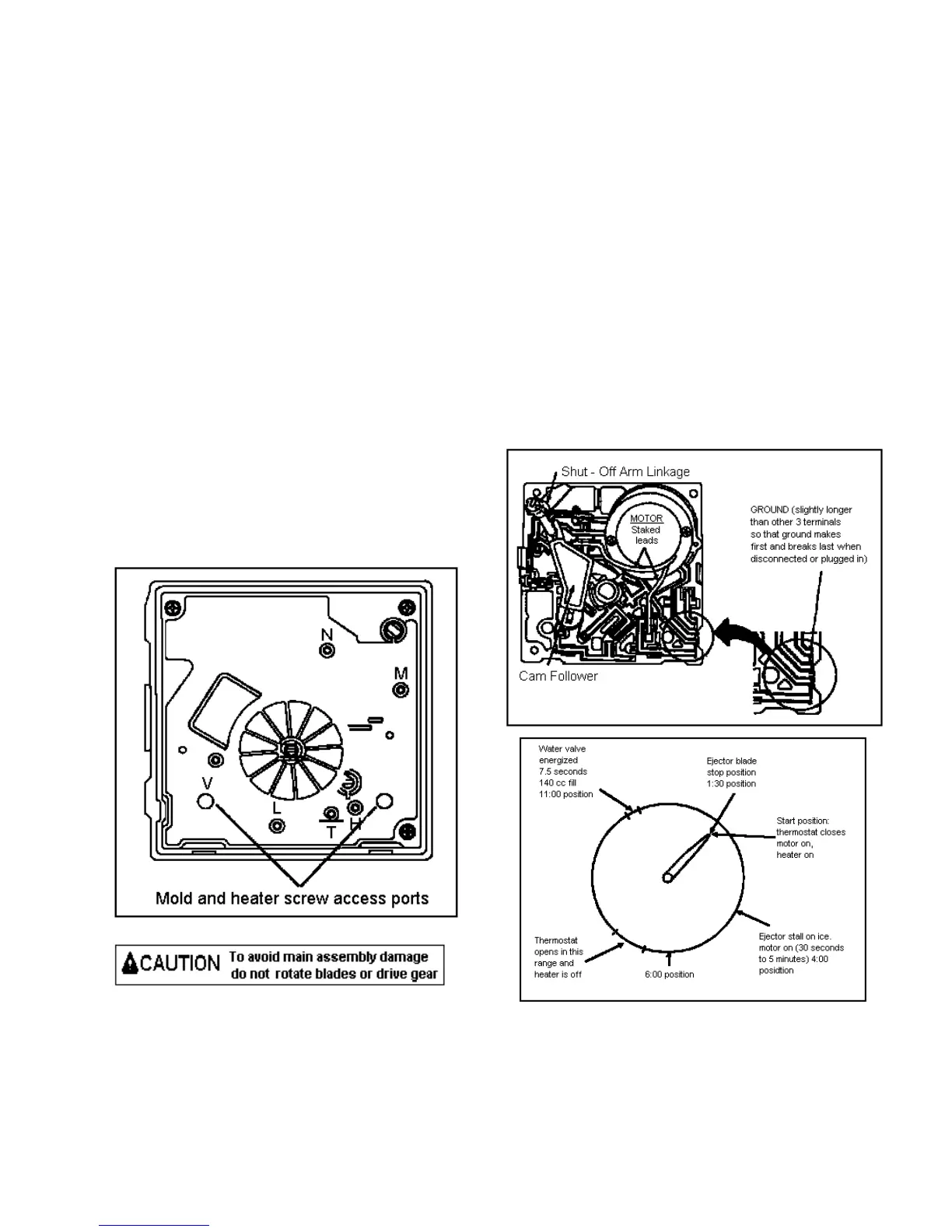

Accessing Control Box
1. Remove motor and contact assembly from
control box be removing 3 screws.
2. Remove shut-off arm.
3. Pull free.
Switches will jam if turned counterclockwise
and gears will be destroyed if turned clockwise.
Advance ice maker into cycle be using a jumper
to bridge H to R. Ice maker will not run if motor
is defective. Shut-off arm must be in on
position.
There are several slotted shafts on motor
assembly board. Do not insert screwdriver and
attempt to turn shafts. Slots permit assembly
only.
There are non-repairable and non-replaceable
components in module. When diagnosing or
repairing ice maker, do not remove module
unless replacing module.
49
