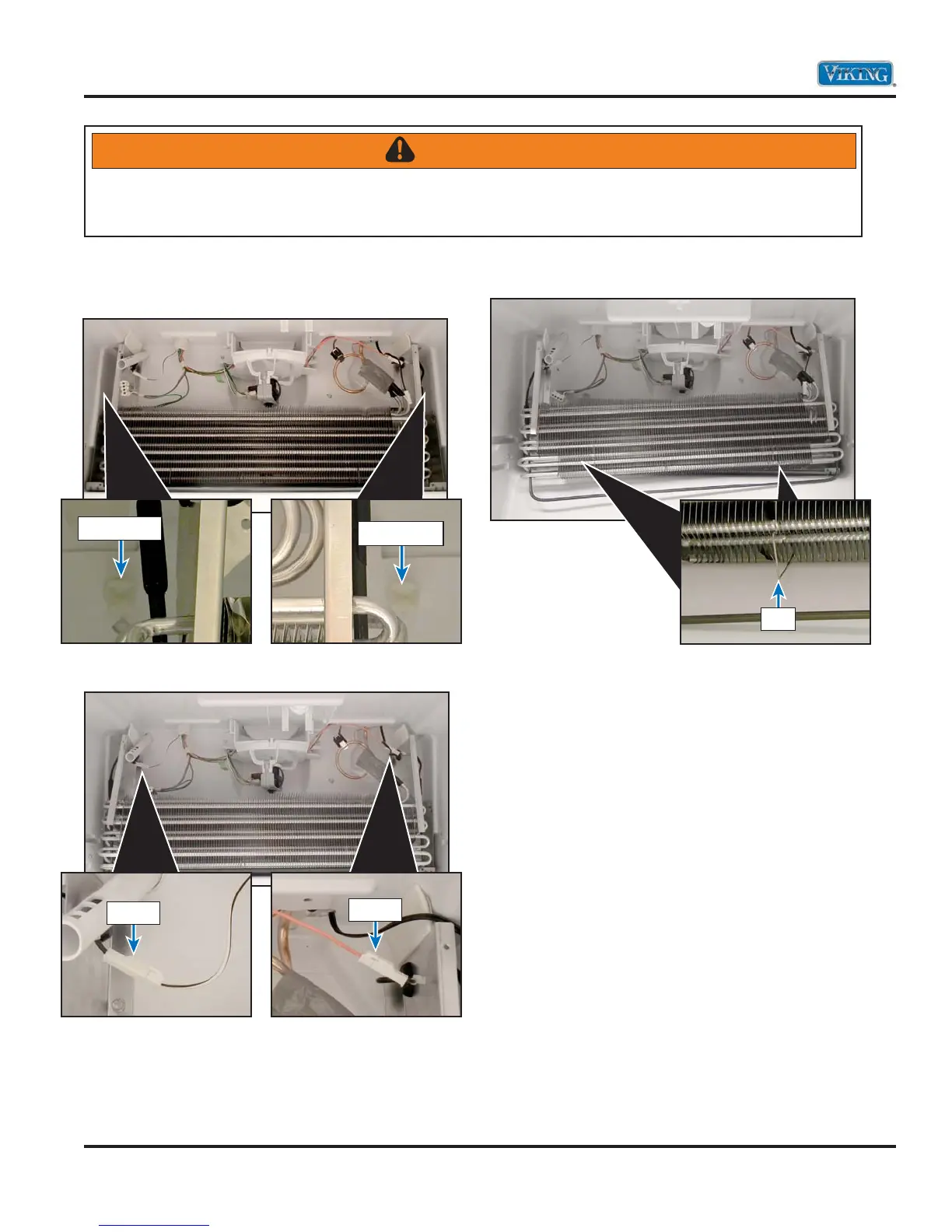

5. Pull evaporator assembly forward to release
from rear wall connectors.
6. Disconnect wiring on both ends of heater.
7. Release clips to remove heater.
8. Repair or replace defrost heater.
9. Reverse procedure to reinstall.
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit using power
switch before servicing. Wires removed during disassembly must be replaced on proper terminals to insure
correct earth ground and polarization. After servicing, reconnect power using power switch.
Service Diagnostics and Procedures–Disassembly
Connector
Connector
Wiring
Wiring
Clip
To Next Page
