Viking X-9 - Parts Diagram

TECHNICAL SUPPORT 1 800 908 0884
i
PARTS DIAGRAMPARTS DIAGRAM
1
9
4
5
2
6
10
7
8
3

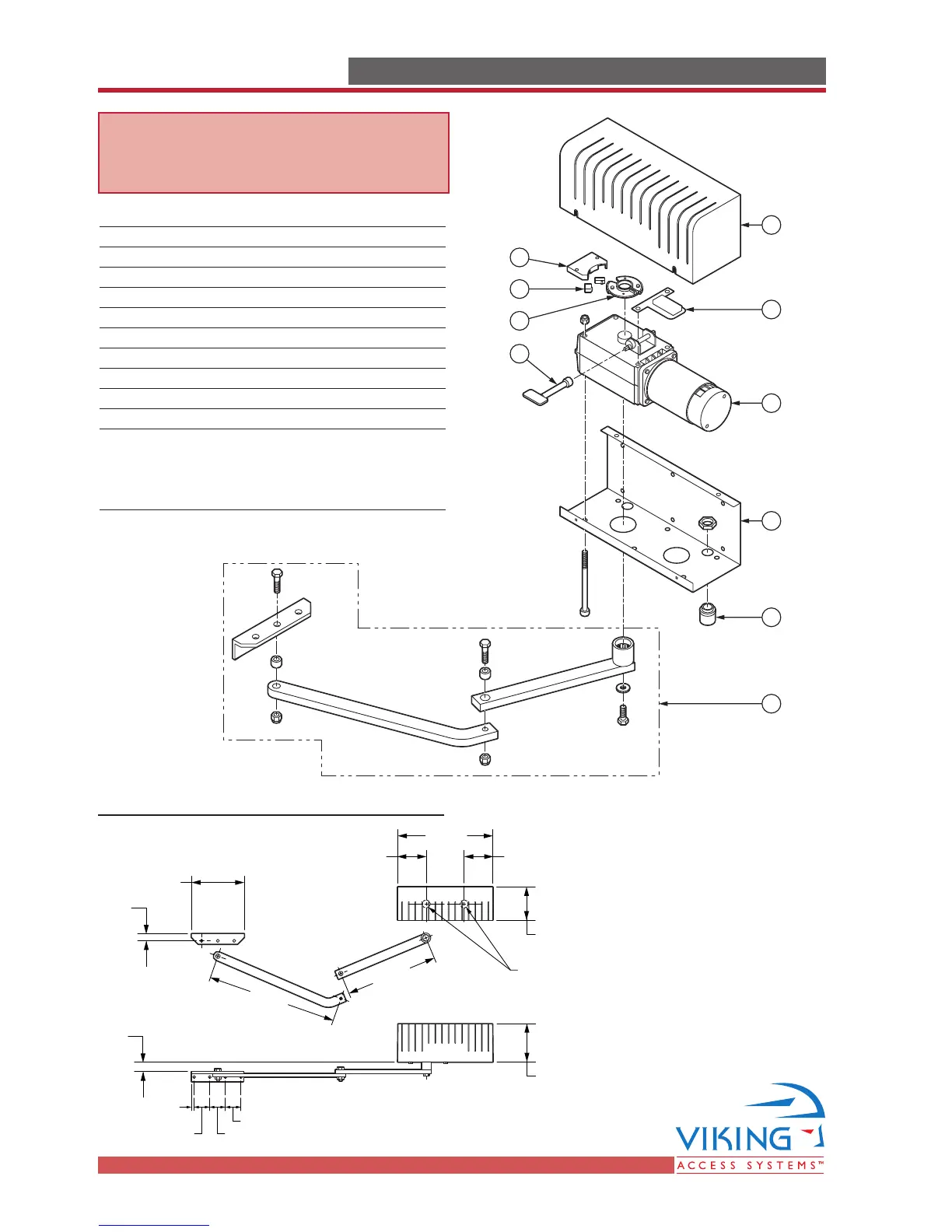

Item Description Part No.
1 Cover, Plastic VAX9PC
2 Motor/Gear Unit VAX9
3 Chassis, Motor/Gear VAX9CH
4 Strain Relief VAX9ST
5 Arm Assembly, Articulated VAX9AA
6 Holder, Limit Switch
7 Limit Switch (2) VAX9LS
8 Cam, Limit Switch VAX9LCS
9Terminal Block VAX9TB
10 Key Release VAX9KR
Weight 40 lb.
Overall Dimensions
14.724"
13.975"
19.685"
7.874"
4.33" 4.33"
5.12"
.985"
Gear/Motor Unit
Can Be Mounted
Left or Right
5.90"
1.50"
.394"
2.36"
2.36"2.36"
WARNING - For Installation
By Qualified Personnel Only.
