Viking X-9 - Gate Overlap Setting

TECHNICAL SUPPORT 1 800 908 0884
27
SPECIAL FEATURESSPECIAL FEATURES
Inside
Outside
Opens First
Slave UnitMaster Unit
Obstruc
t
Sensor
Overlap Delay
1.5
Hold Open
Timer
m
it
03
A Master/Slave control board is required to
operate two gates with a single controller.

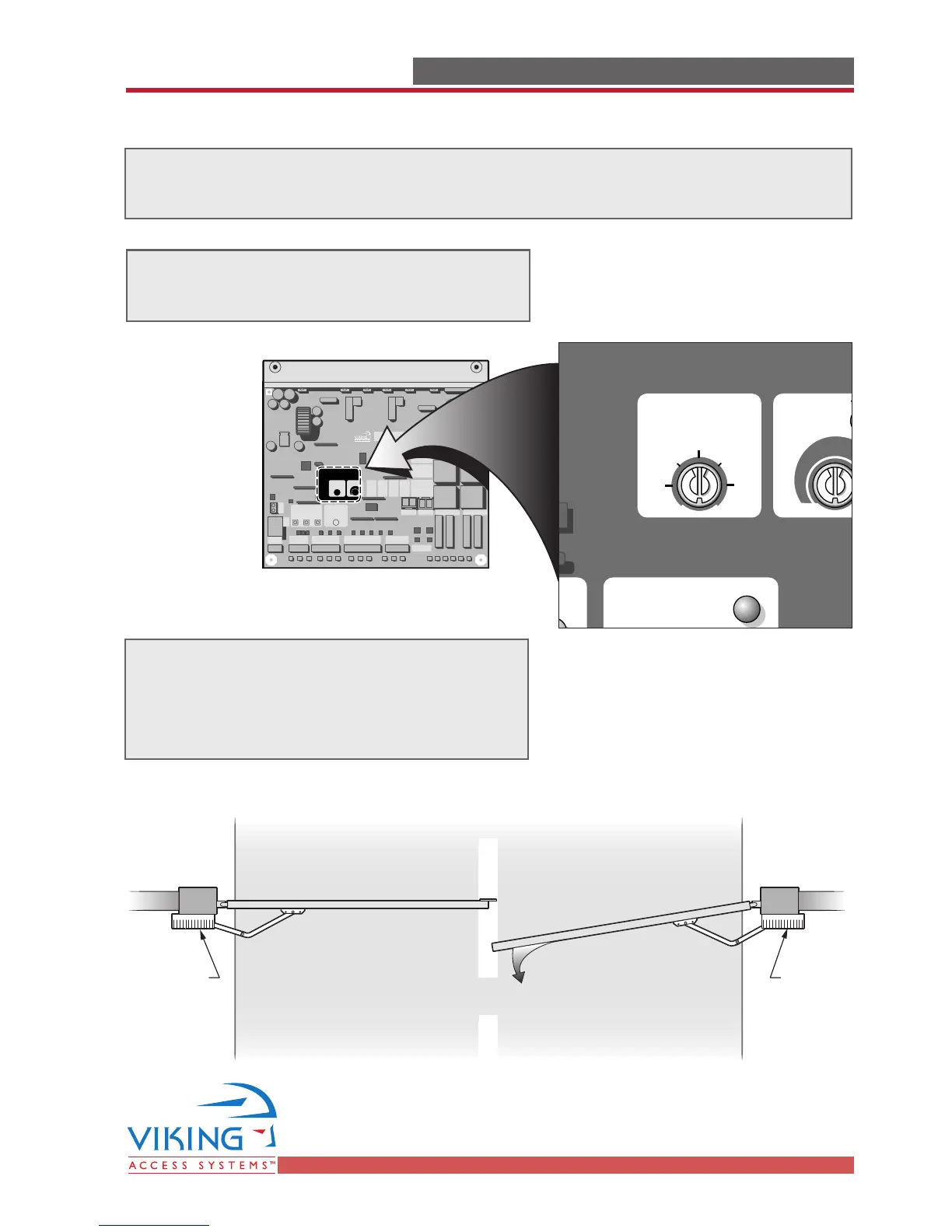

Gate Overlap Setting
Setting the Overlap Delay Pot to any value
other than zero will cause the master unit to
delay in opening.
The time delay can be set for up to 3 seconds.
Setting the Overlap Delay Pot to “0” will cause the master and the slave units to
open and close at the same time
Trim Pot Location
(Master/Slave Unit Board shown)
