Viking X-9 - Master;Slave Connections

TECHNICAL SUPPORT 1 800 908 0884
19

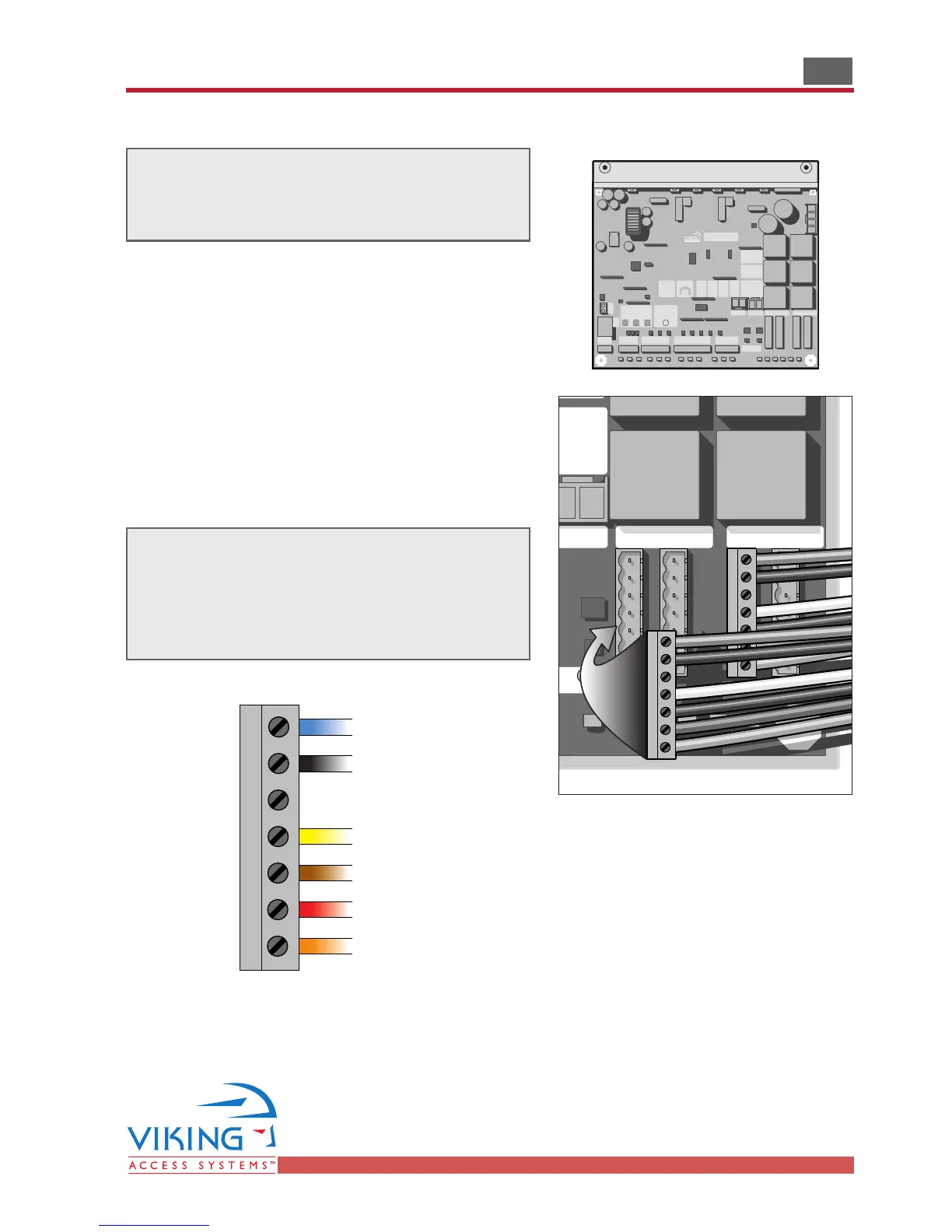

Using the connectors provided insert the
wires from the motor units as shown in the
diagram below. Insert the connectors in the
proper receptacles (Master or Slave, Open
Inside or Outside).
Master/Slave Connections
ELECTRICAL INSTALLATION – MASTER/SLAVEELECTRICAL INSTALLATION – MASTER/SLAVE
a
rger
r
ake
i
l Safe/Secure
Master
Master Open Slave Open
Slave
w
er
w
Battery
Inside Outside Inside Outside
Black
Blue
Free
Yellow
Brown
Orange
Red
A Master/Slave control board is available,
when required, to run two gate operators in
synchronous mode.
