24
Load control
• Tapping displays the screen with which you can force the loads.
• Tapping the icon corresponding to the desired load, forces that load.
The above icon is only displayed if the load can be forced. During configuration your installer will set which loads
can be forced and which cannot (see an example of the screen below).

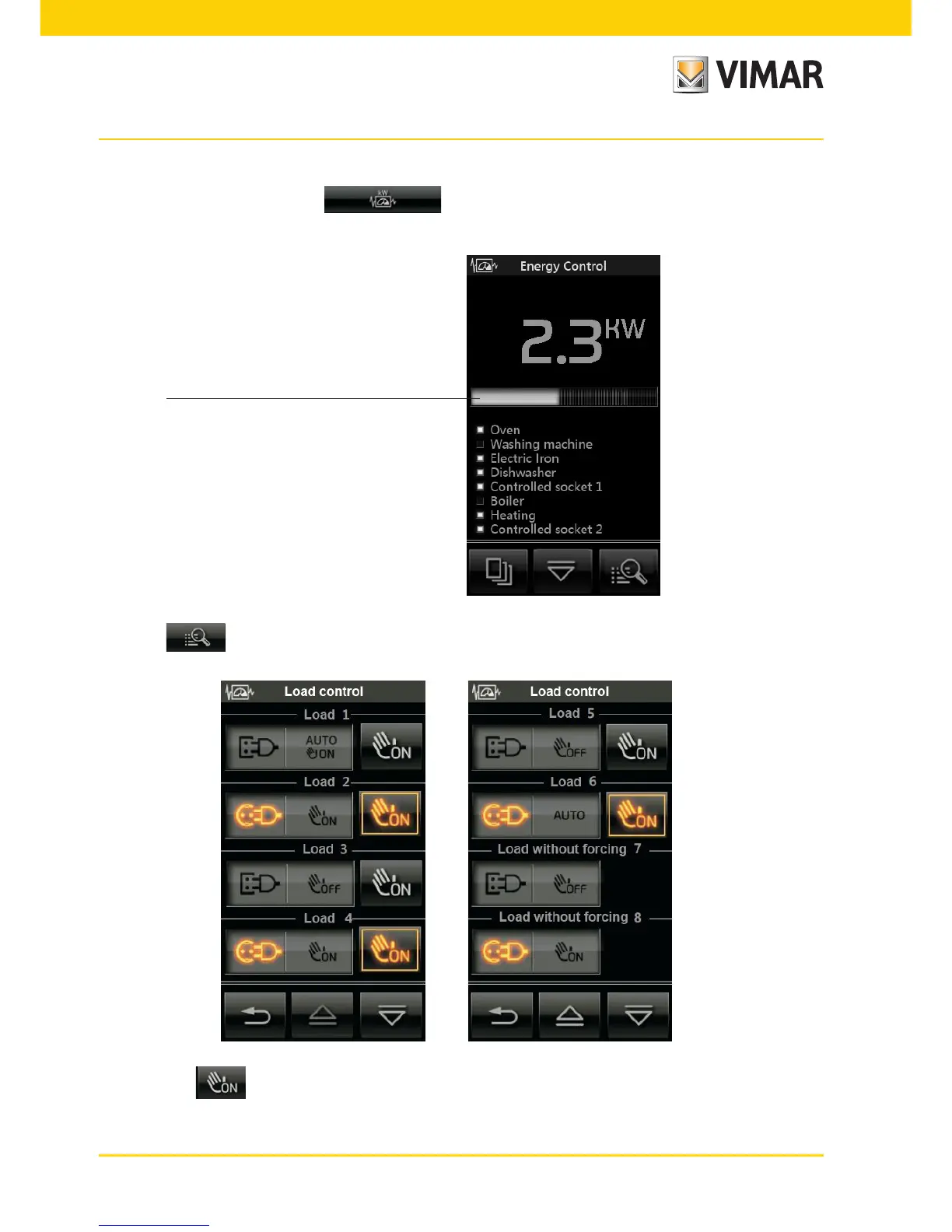

5. LOAD CONTROL.
From the main MENU, tapping the icon takes you to the screen where you can view the status
of the controlled loads and the power consumption.
Indicator of consumption with respect
to the thresholds. If you have the
full-scale production changes dyna-
mically, taking into account the energy
produced.
Dynamic Mode: Pressing the area that displays
the instantaneous power for 2 min after the read-
ing of the will value every 2 s thus increasing the
frequency of update of the data represented. At
the end of 2 min, the reading will repeat every 30
seconds until an eventual new pressure.
