58
Speaker System
7.2 CONTROL FOR RCA TRANSMITTER WITH IR INTERFACE
When a transmitter is configured together with an IR interface on an audio zone, it is possible to control the sound
source connected to the transmitter by means of its RCA input.
The screen relating to this zone will show the icon for accessing the Details page associated with the transmitter.

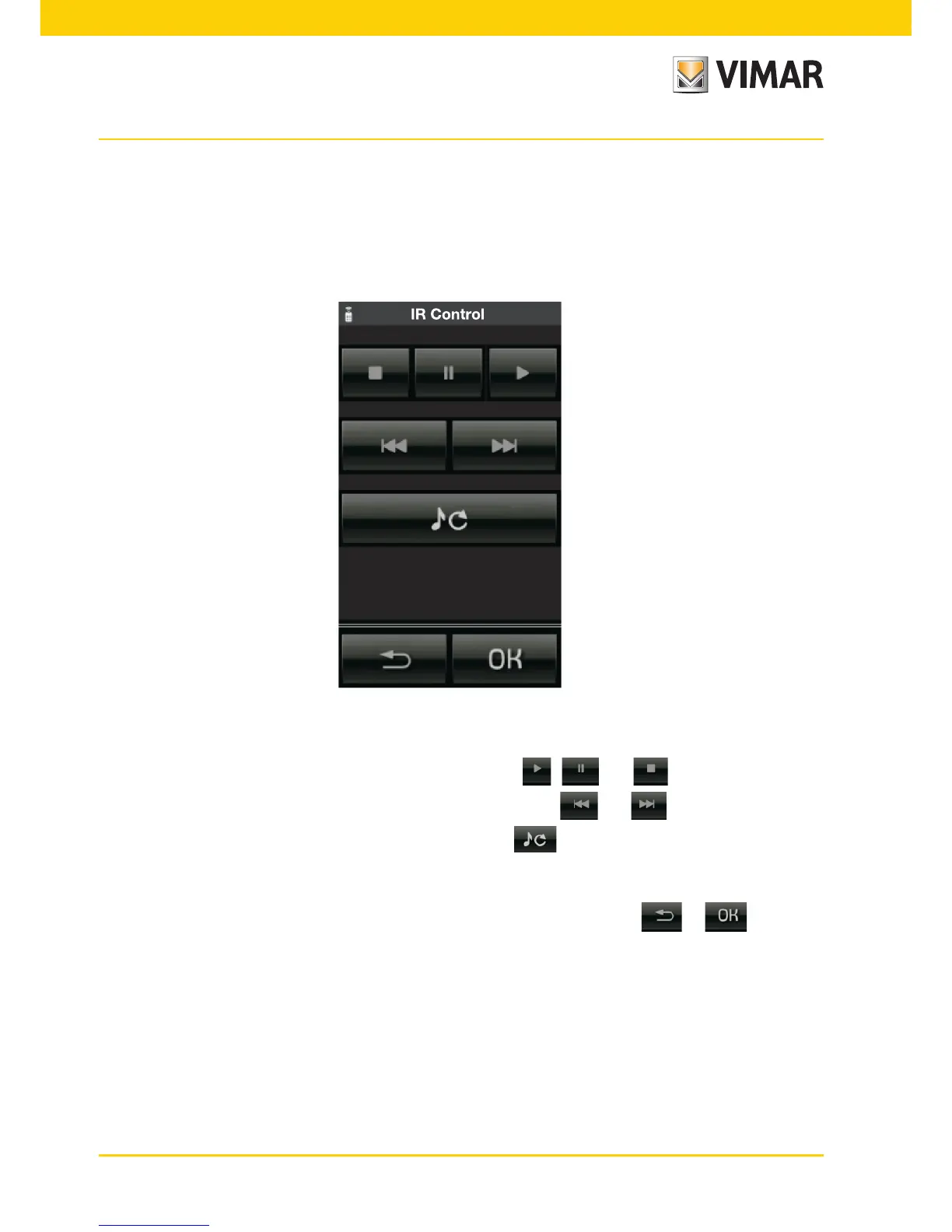

The screen for controlling the RCA transmitter associated with the IR interface is the following:
On this screen it is possible to:
• select the play/pause/stop status of the source playback (icons , and );
• shift playback to the track or to the previous or next one saved (icons and );
• cyclically vary the internal source of the controlled device (icon ).
For these controls to be usable it is necessary for the installer, in the programming phase, to have appropriately
configured them within the IR interface.
From the above screen it is always possible to return to the zone menu by touching or .
