6. ENERGY MONITORING.
From the main menu, tap the icon and you access the menu that, depending on the structure of the
system, displays the following options:
• Global consumption (always present)
• Energy production (optional)
• Energy flows (optional)
• Pulse counter (optional) from 1 to 8 (for example cold water, gas, etc.)
• Single load (optional) from 1 to 8 (for example fridge, boiler, etc.)

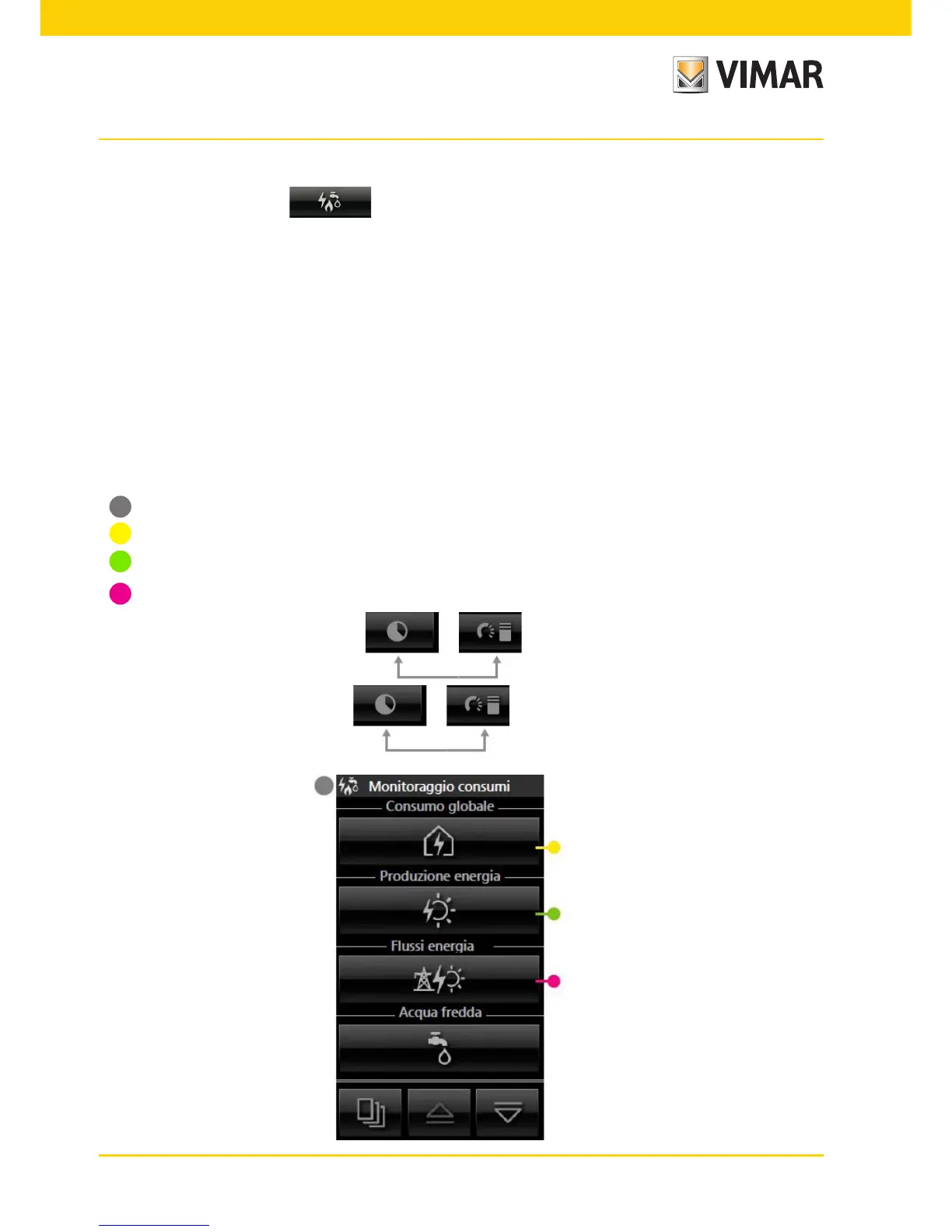

6.1 GUIDE TO NAVIGATING THE SCREENS
The purpose of this section is to provide the user with a complete, intuitive graphical guide, which illustrates navi-
gation among the screens of the touch screen dedicated to energy management.
The legend is as follows:
- : Main menu for Consumption Monitoring
- : Details of Global consumption
- : Details of the Production
- : Screen for the Energy flows
- On the screen for Global consumption : Estimated tap-off/self-consumption
- On the screen for Energy production : Estimated feed-in/self-consumption
