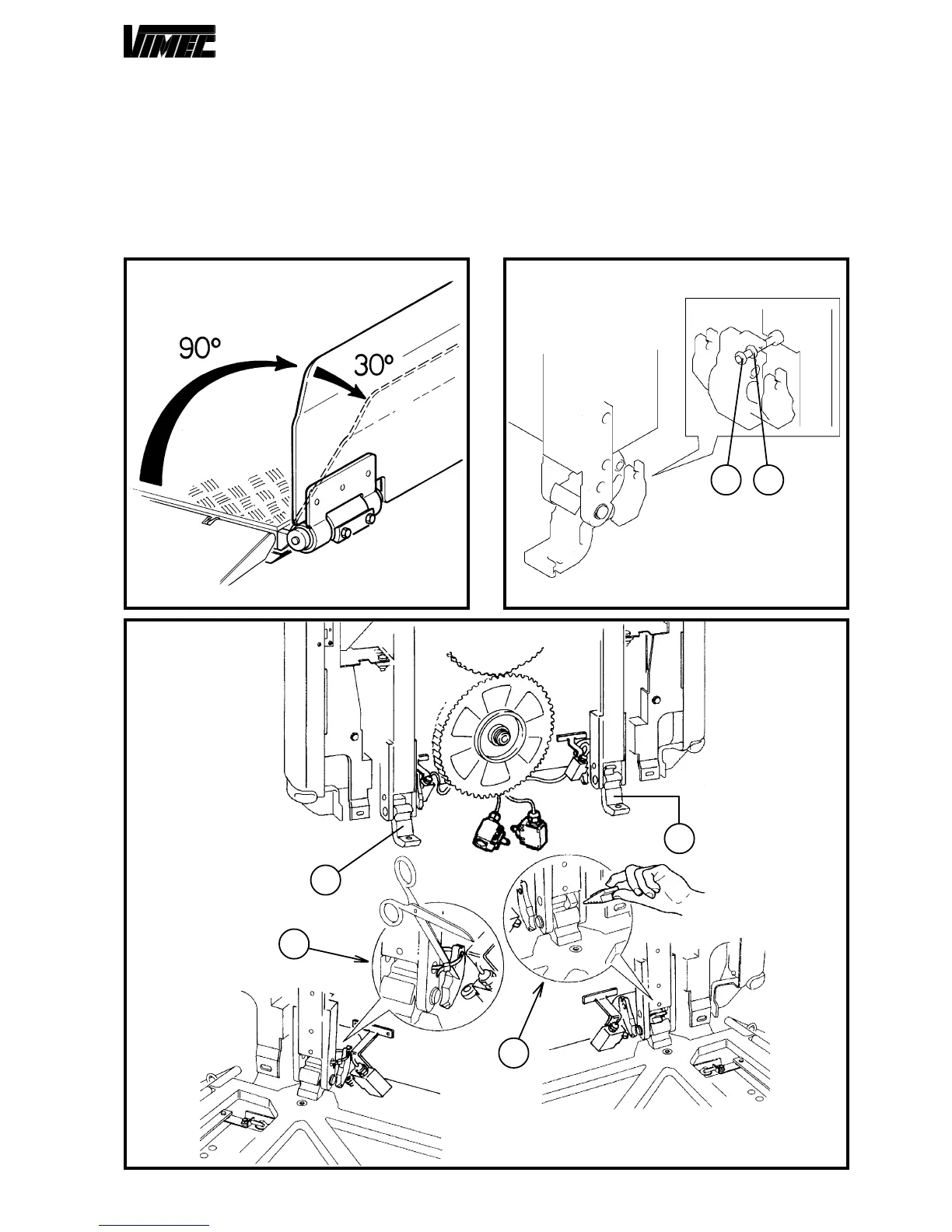

Proceeds to check the proper working of the front ac-
cess chute:
- Check the angle between the chute (in working posi-
tion) and the footboard is 90° (Fig. 35).
- Check the front access micro chute intervenes with a
maximum rotation of 30° of the same chute with respect
to the working position as in Fig. 35.
- If the guards are not opened or closed correctly, adjust
FIG.35
FIG.36
ab
to the specified position using the register fork (Fig.34/b).
g) Replace the top plate on the platform using the relati-
ve fixing screws.
h) Remove the wedge and the plastic clamp (Fig. 33/c/
d) used to keep the platform horizontal during the
adjustments from the platform supports.
i) Tighten with a driving torque of 4 daN ± 0,1the dowel,
the nut and the locknut (Fig. 36/a,b).
FIG.37
c
a
b
d
