vimec 7602030 - System Supply Condition

7602030
18

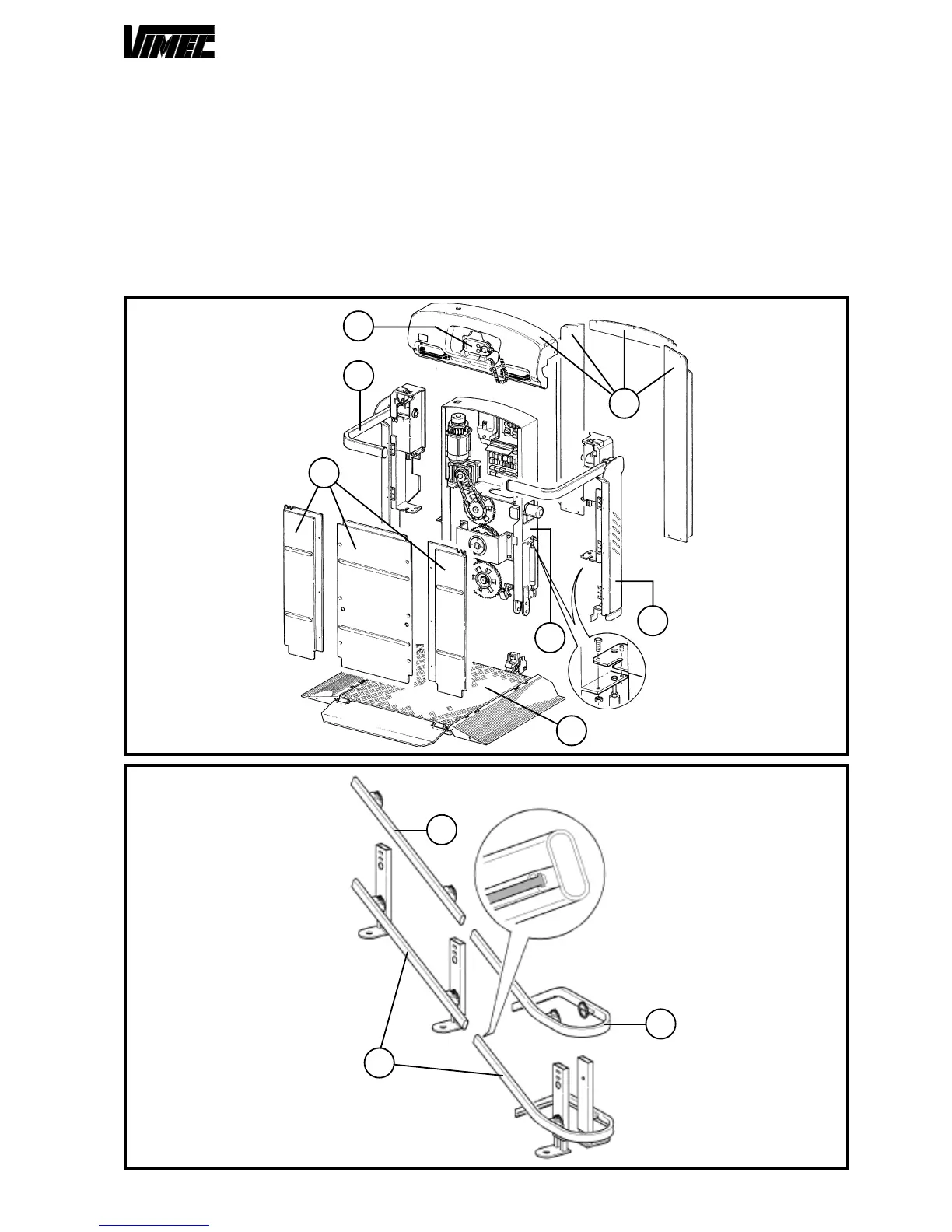

FIG.1
1) SYSTEM SUPPLY CONDITION
The stairlift is supplied subdivided into the following
components:
Lift structure (Fig. 1/a)
Complete with gear motor, drive components with safety
gear and electrical system.
Carrier platform (Fig. 1/b)
Complete with guard boards and sensor base with safety
microswitches.
Bars unit (Fig. 1/c).
Fixed, or retractile safety bars (optional).
CAUTION: Disassebmle the bars groups (Fig. 1/c)
before inserting the saddles in the guides.
Bonnet/Cover unit and inboard pushbutton (Fig. 1/d).
CAUTION: Disassemble the upper and rear bonnets
(Fig. 1/d) before inserting the saddles in the guides.
Rail unit (Fig. 2)
Comprising:
- Lower guide kitted with busway and support feet
(Fig. 2/a).
- Upper guide (Fig. 2/b).
- Securing fittings.
b
c
a
d
d
c
d
FIG.2
b
a
b
