VINCENT SA-32 - Connections and Wiring; Source Equipment Connection

30 Vincent
소
소스기기의
연결
CONNECTION OF THE SOURCE EQUIPMENT
후면의 입력단자 S1 ~ S5 에 아날로스 소스기기의 출력단자를 RCA 케이블로 연결하십시
오. XLR 단자도 2개 구비되어 있습니다.
Connect the outputs of the source appliances to the inputs “S1”...”S5” (9) of this preamplifier. You can connect up to four
devices with analogue RCA stereo high level output such as a CD player in order to provide the audio signals of your input
sources to the system. Two more inputs are equipped with XLR con-nectors. The output sockets on the source equipment are
usually indicated by “LINE OUT”, “AUDIO OUT”or “FRONT OUT”. You will find information about ways to connect source
equipment in their operating manuals. The four RCA inputs represent electrically equivalent standard high level inputs. They
have an identical function and differ only in name.
General hints:
참고 사항
턴테이블을 사용하려면 포노 프리앰프가 따로 필요합니다. 간혹 포노 프리앰프가 내장된 턴테이
블도 있습니다.
To use a record player you need a so-called phono preamplifier (also called an equaliser preampli-fier), which
is installed in the signal path between the record player and one of the high-level inputs.Some models of
record player already include this preamplifier and can be connected directly. Youwill find further
information in this appliance’s operating manual. The stereo sound of appliances that use output connectors
other than RCA (DIN plugs, jack plugs) can often also be used with the aid of adaptors.

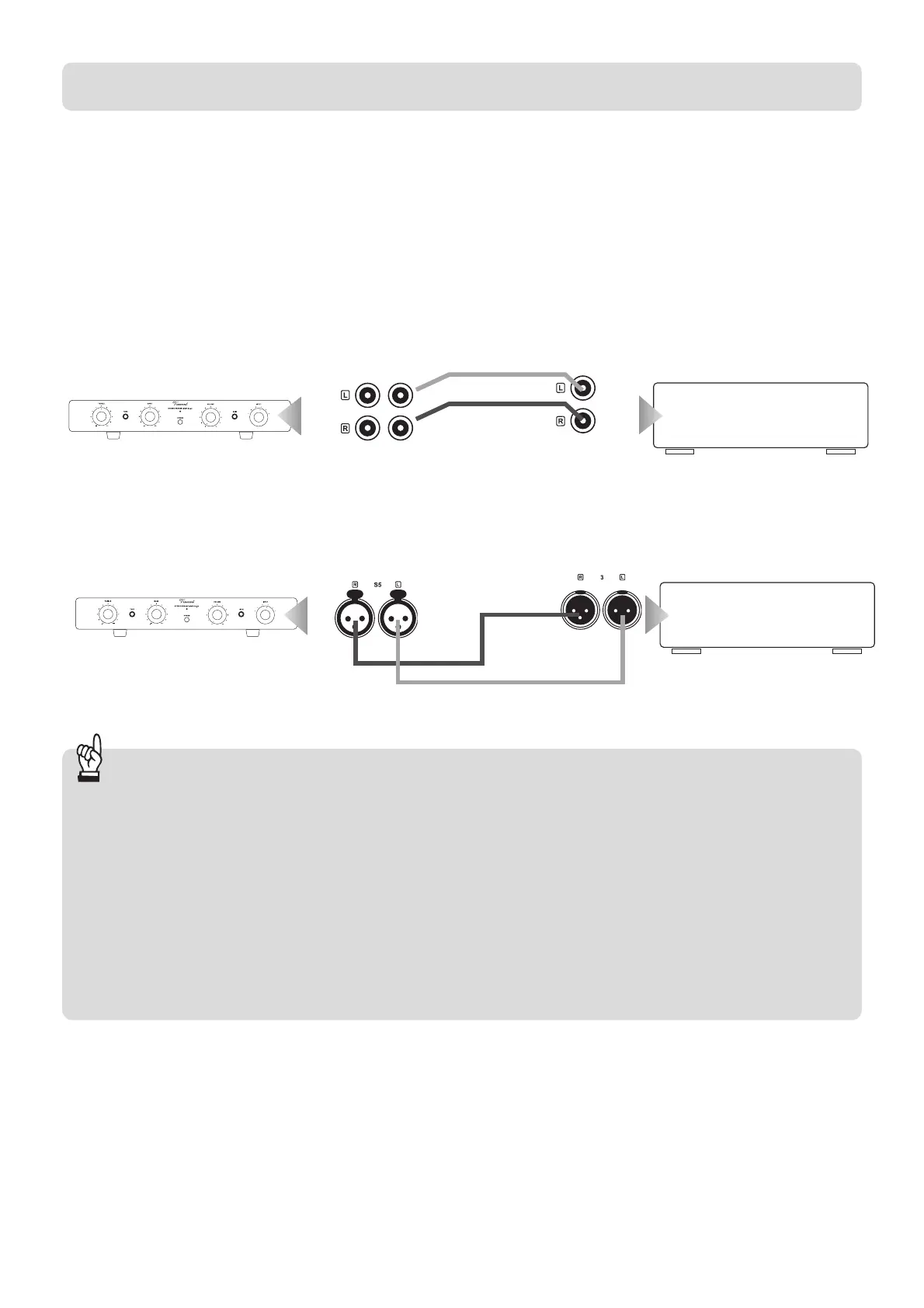

S1
S2
S3
S4
S5
S6
SA-32
CD-Player, Tuner,
DVD-Player, etc.
LINE OUT
RCA connection
S1
S2
S3
S4
S5
S6
SA-32
CD-Player, Tuner,
DVD-Player, etc.
XLR connection
XLR OUT
XLR IN
