VINCENT SA-32 - Rear Panel Connections; Audio Input;Output Ports; Power and Control Connectors

26 Vincent
9
9. 소스 입력단자
INPUT: Terminal for
stereo audio signalsof the source
equipment
Here you find five stereo RCA input sockets
forsource equipment with analogue stereo (line
level)audio output.
10. 녹음 출력단자
REC OUT: Output
connectors assigned toa recording device
If desired, you can connect a recording
devicelike a CD recorder or a tape recorder to
this out-put. The stereo signal of this output is
identical tothe output signal of the selected
audio source atone of the preamplifier inputs.
11. 밸런스 입력단자
XLR-IN
Here you find one stereo input sockets for
sourceequipment (1x XLR) with analogue stereo
(line level) audio output.
12. 프리앰프 출력단자
OUTPUT:
preamplifier outputs
With these two pairs of connectors you can
con-nect the preamplified stereo audio signal
of thecurrently selected source to the power
amplifierchannels.
13. 밸런스 출력단자
XLR-OUT
With these pair of connectors you can
connect the preamplified stereo audio signal of
the currently selected source to the power
amplifierchannels. The volume and mute
settings have effect on the signal at this output.
14. 전압 변경 셀렉터
Voltage
Selector:
The voltage selector behind the pane allows
swit-ching the voltage from 230 V to 110 V.
Refer tosafety instructions for further information
(p. 32).
15. 트리거 (원격 스위치)
POWER
CONTROL: ON/OFF controlThese jack
connectors (3.5 mm) provide theon/off
signal for the standby control (12VTrigger).
16. 전원코드 인렛
AC 220-240V:
Power Connector
To establish the power supply, connect the
plugsof the power cable to the device and to a
suitablewall outlet.
S1 S2
S3
S4
S5
9 10
14
16
15
11
12
13
XLR-IN
XLR-OUT

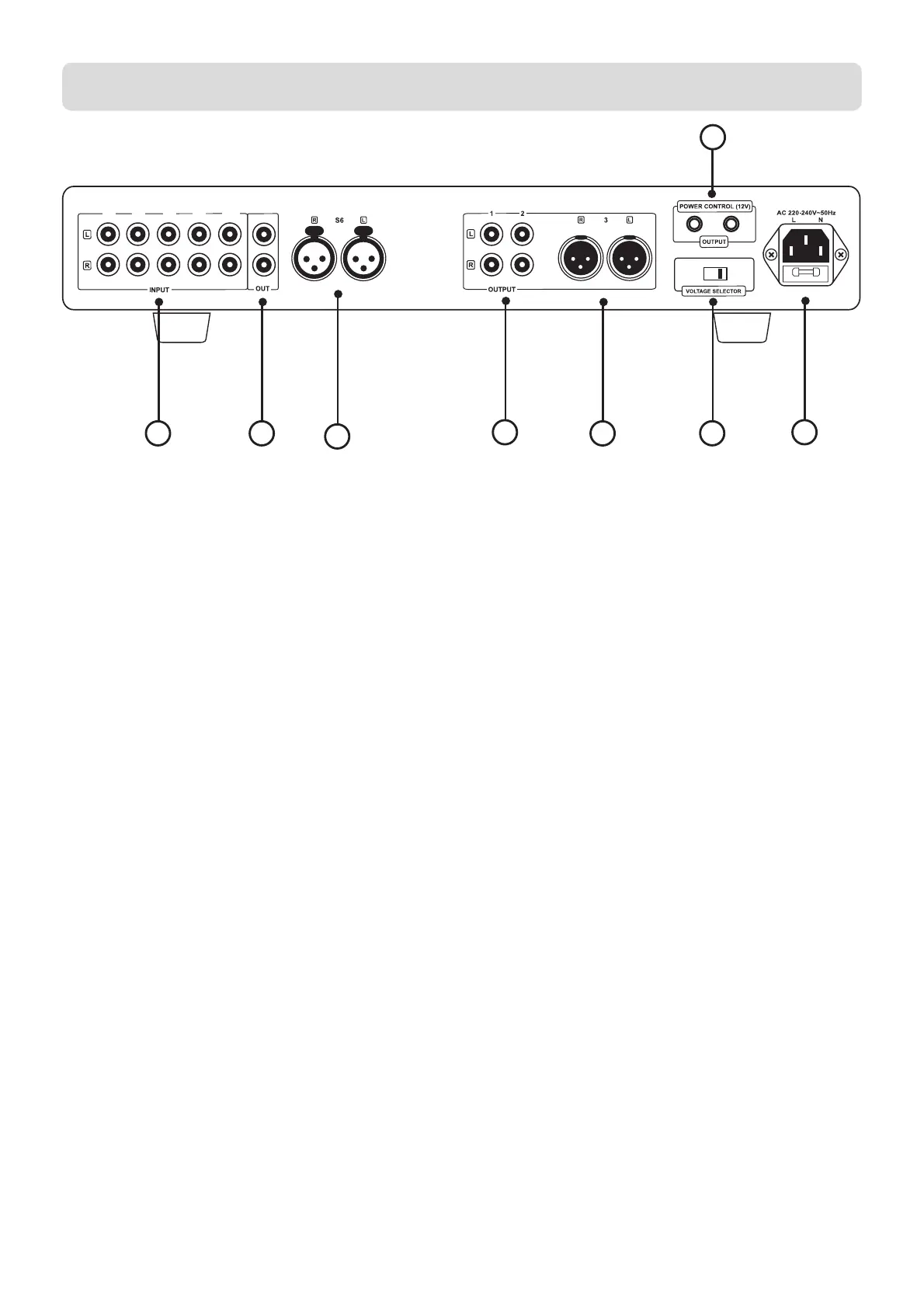

후면의 단자들
REAR VIEW
