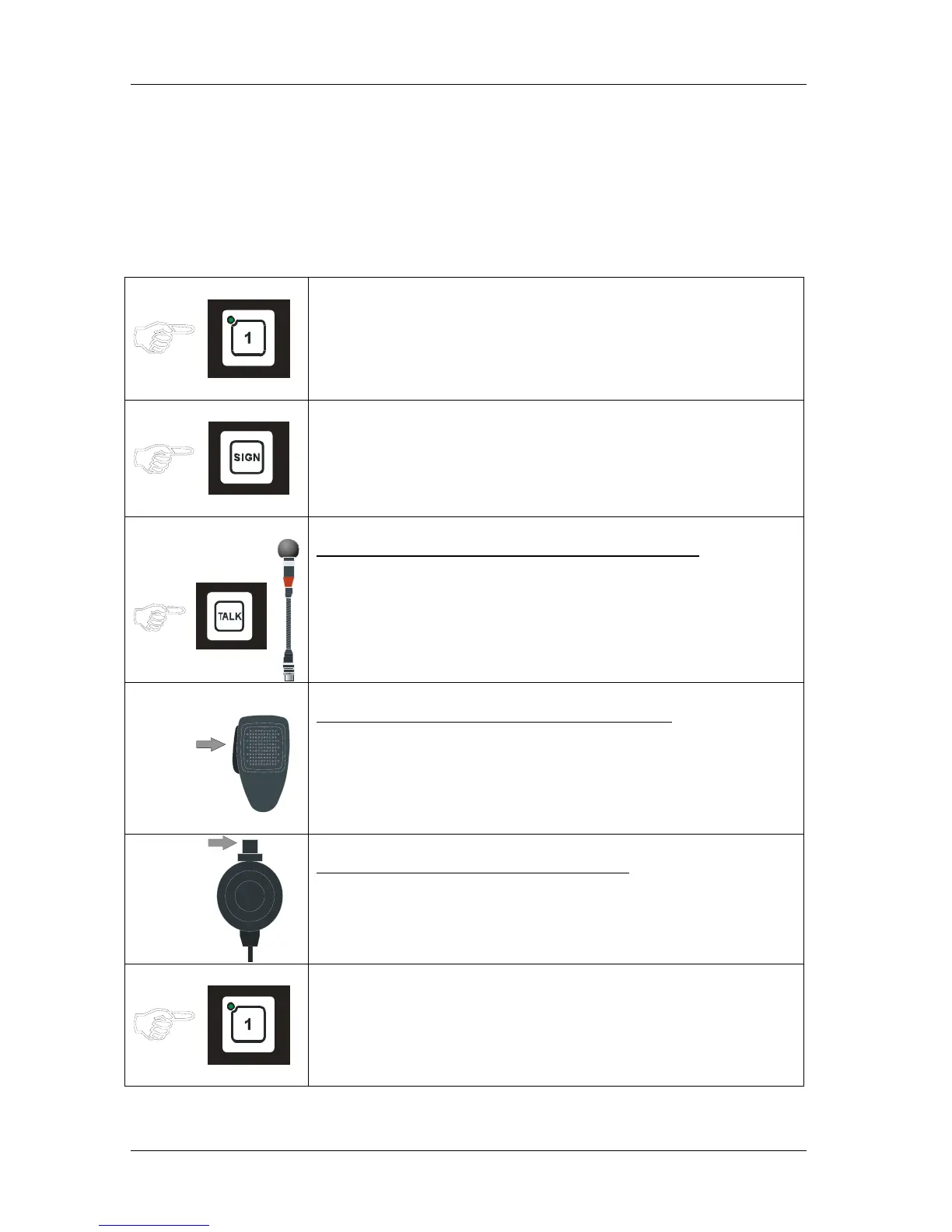

4.1.1 Make a call to an substation.
You can select the substation by pressing desired line push button.
Steady green LED will indicate activated selection.
If desired, the signal button SIGN may be pressed to give a tone signal to selected station. Talk from the operation
panel is performed every time TALK button is pressed. The operation panel unit will be in listening mode as soon
as a station is selected. When communication is finished, press again the selected station button to switch off. The
LED will be switch off to indicate that selected line is turned of.
Operation panel : CTB-10,CTB-20, CTB-10W_V01 or CTB-20W_V01
• Press the LINE button, the call is set up. Indicated by steady green LED
• Press the SIGN button
A tone signal will be given to selected station as long as the SIGN
button is kept pressed.
This will also activate extra signal devices, if connected (Se pos.4.1.5)
Operation panel with gooseneck microphone MB-30G
• Press the TALK button.
Speak clearly into the microphone. When the TALK button is released
the operation panel will be in listening mode, and you will hear the
communication from the selected station.
PTT SWITCH
ETC-1-TB
Operation panel with hand microphone ETC-1-TB
• Press the PTT SWITCH..
Speak clearly into the microphone. When the PTT SWITCH button is
released the operation panel will be in listening mode, and you will hear
the communication from the selected station.
PTT SWITCH
Operation panel with hand microphone P-66
• Press the PTT SWITCH..
Speak clearly into the microphone. When the PTT SWITCH button is
released the operation panel will be in listening mode, and you will hear
the communication from the selected station.
• Press the LINE button once more to end the call.
The LED will be switch off.
