Installation & User Manual System CTB-100V
5
2.4.5 All call
20
11
4
10
3
2

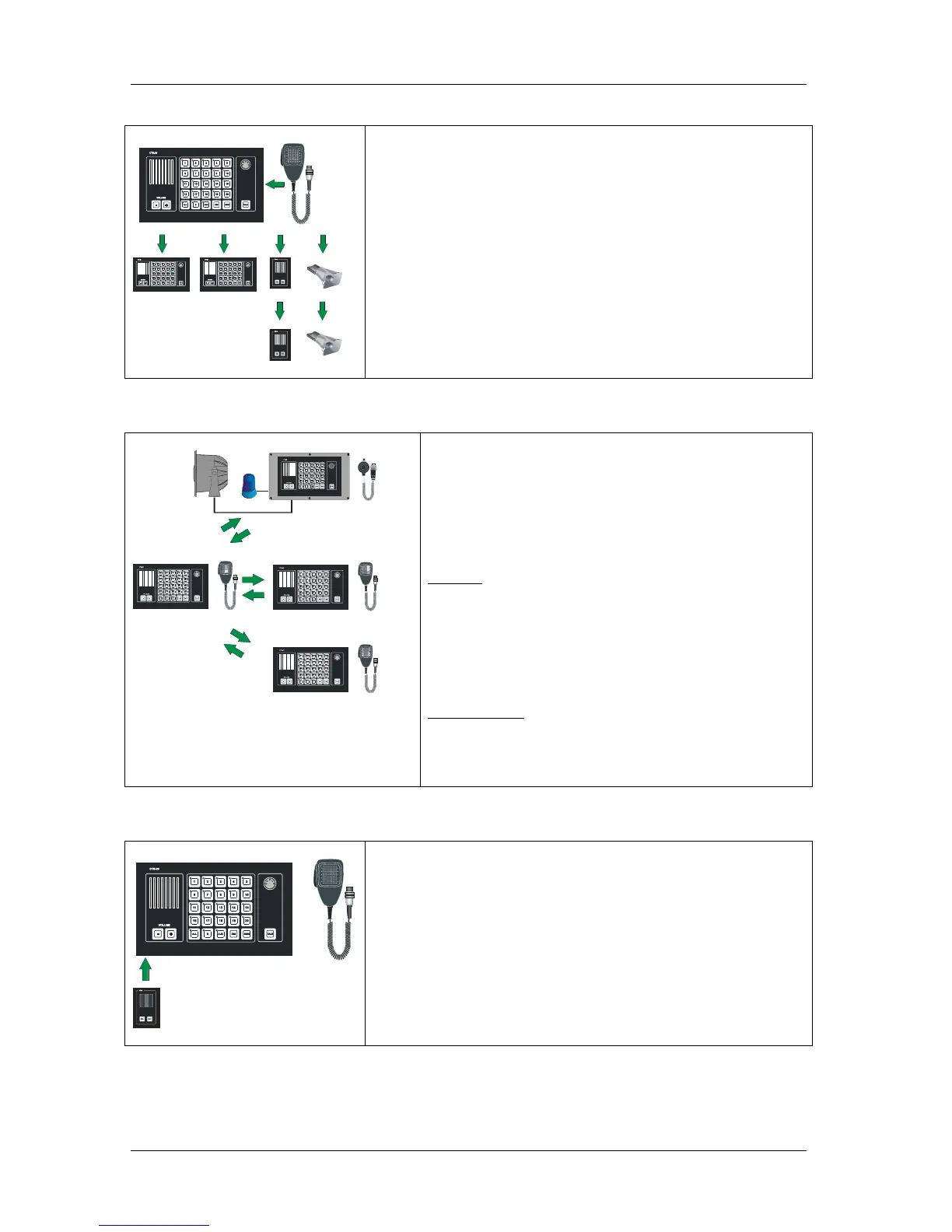

All call message can be distributed from any operation panel to all
substations and other operation panels.
All call message will also activate Public Address System if connected.
Indicated with steady green LED in the «ALL» push button.
2.4.6 Calls from and between Operation panels.
Up to 4 operation panels can be connected.
Calls can be made from any operation panel to substations.
And calls can be made from any operation panel to another by
pressing respective line button.
In this stage the called operation panel act as a substation.
Calls from one operation panel will be indicated in all operation
panels.
Priority:
One operation panel is always decided to be a master station
with highest priority.
The priority follows a hierarchy 1 to 4,
with operation panel 1 as highest priority.
It is a standard setting. With dip-switches in the central unit the
priority can be changed. (See chapter 3.5)
Type of panels:
CTB-10 Operation panel 10 line selection, indoor use.
CTB-10W/V01 Operation panel 10 line selection, WP.
CTB-20 Operation panel 20 line selection, indoor use.
CTB-20W/V01 Operation panel 20 line selection, WP.
2.4.7 Call from substations
Calls from a substation can be received in all operation panels.
Indicated with flashing green light in LED in respective line.
Preferred operation panels can be set to receive a call with an acoustic
signal in addition.
