AW8241
Technical data:
AW8241
Public Address Systems
Description:
OUTPUT LEVEL OVERL. ON
BASS TREBLE MASTER VOLUME POWER
0 0 5
10 +10 10 +10 0 10
dB +40 -6 0 +1
SERIES POWER AMPLIFIER
FUSE ~
V ~
IN A.P.T. LEVEL
230V ~ T 2.5 A 240W RMS 450 W
MA DE IN IT ALY
(260W) 24V COM. 8
Ω
LEVEL IN OUT
LEVEL TONE
16Ω 50V 70 V 10 0 V
REMOTE ALARM
1 2 3
CHIME
BASE BOOSTER
...
CAUTION: CAUTION:
TO REDUCE DISCONNECT POWER
THE RIS K SUPPLY CORD
OF FIRE BEFORE CHANG ING
REPLACE FUSE.
ONLY WI TH
SAME TYPE
FUSE.
POWER AMPLIFIER AW824 1
MAINS FUSE ~ RATING CONSUMPT.
482,6
132
AW8241

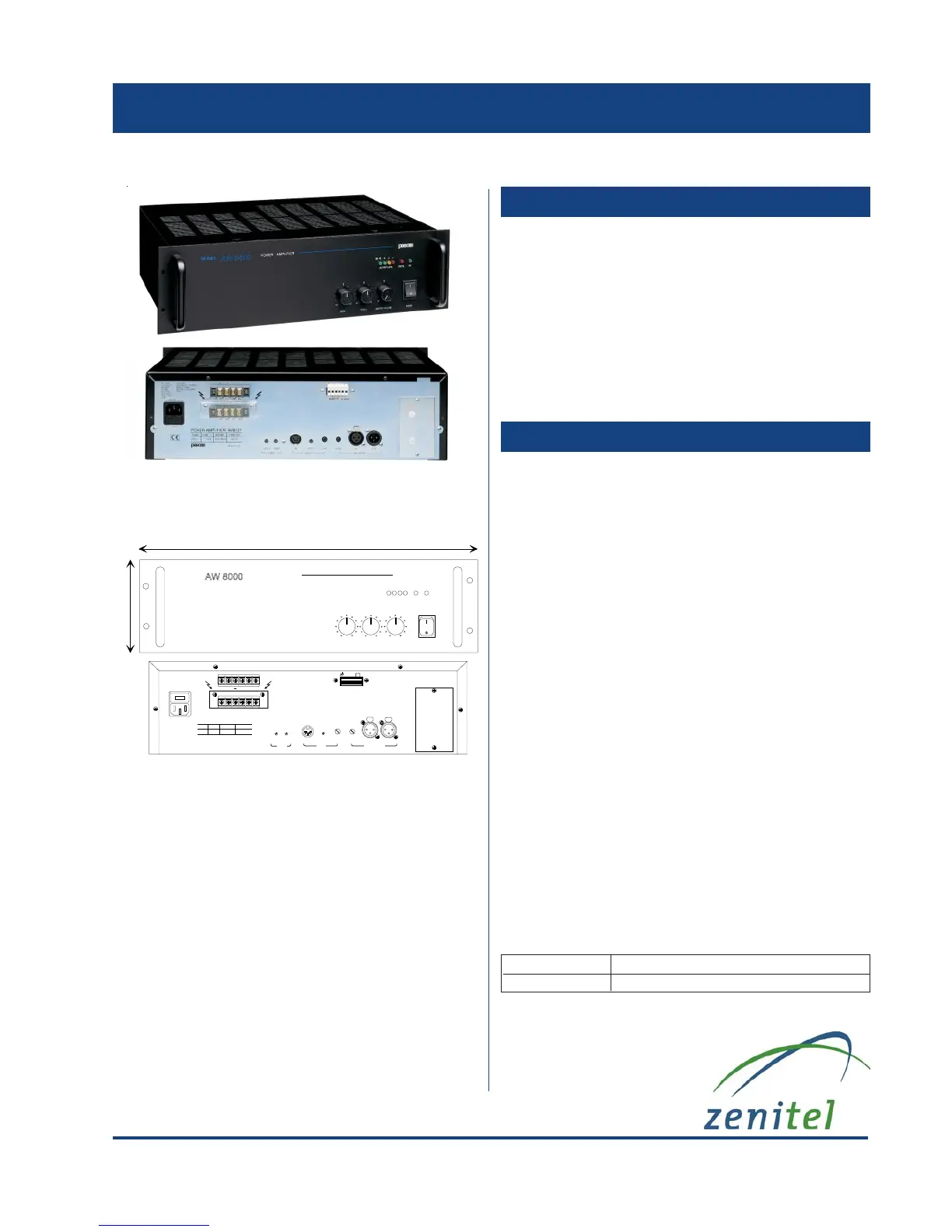

* 19” 3 HU 240 W power amplifier
* 230 Vac / 24 Vdc power supply
Manufacturer: Paso
Colour: Black
Power AC: 240 W
Constant voltage outputs: 100, 70, 50 V
Constant impedance
outputs: 16, 8 ohm
Distortion at rated power: < 1 %
Tones control: Bass ( 100 Hz ) +/- 10 dB
Treble ( 10kHz ) +/- 10 dB
Booster input:
Sensitivity / impedance: <1,1 V / 100 Kohm
S/N ratio: 80 dB
Frequency response: 40 - 20 000 Hz
Precedence attenuation: 55 dB
Amplified stand input:
Sensitivity / impedance: 220 mV / 10 Kohm
S/N ratio: 80 dB
Frequency response: 150 - 14 000 Hz
Weight: Approx. 17 kg
Debth: 340
Debth w/ carrying handle: 380
