Features
Document no.
Article no.
RS-3D_ds rev.00 2004.08.22

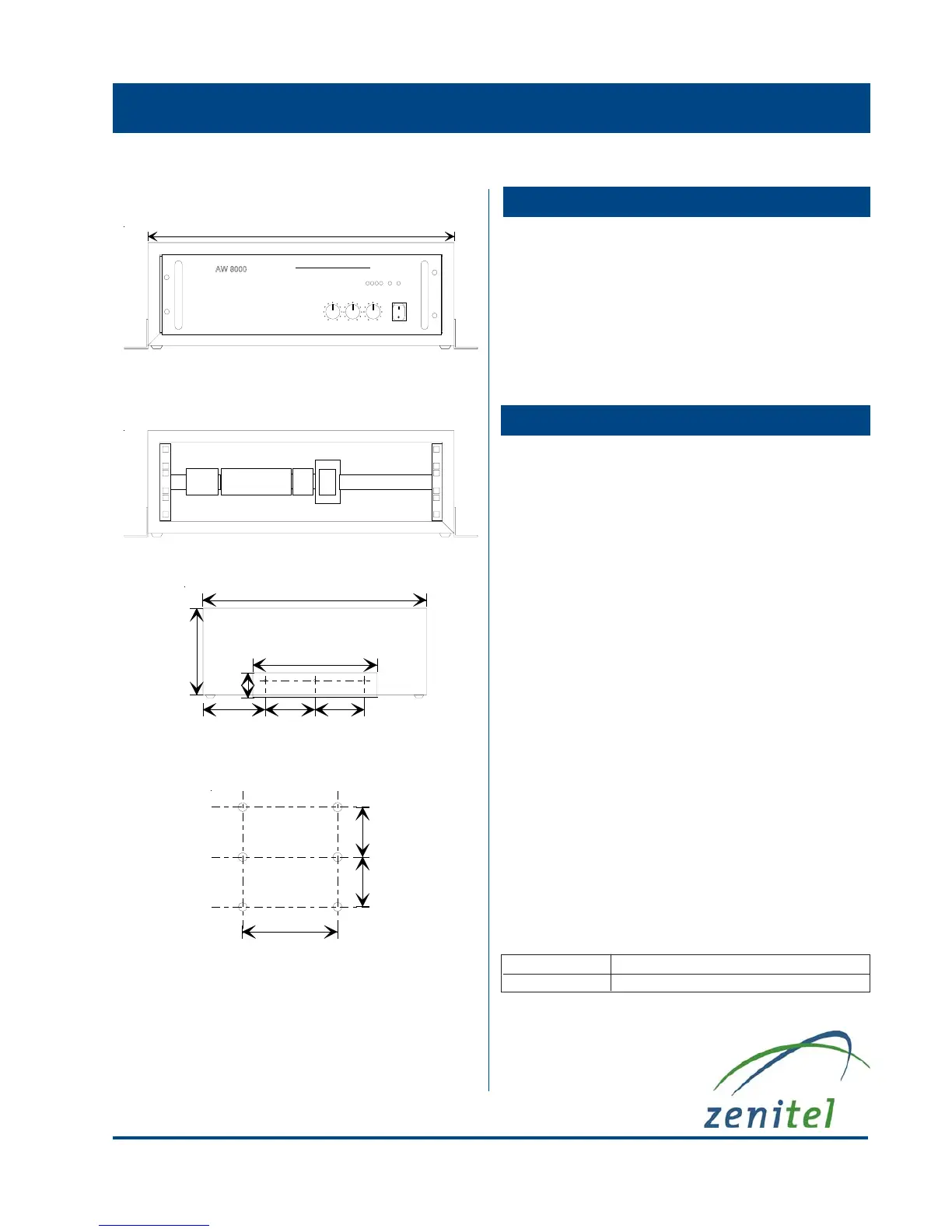

RS-3D
Integrated Communication System RS-3D
Description:
Technical data:
RS-3D
3 HU 19” cabinet, prepared for amplifier
AW8121, AW8241 and P-8501
with all necessary terminals for external 230 Vac /
24 Vdc in and out signals
Dimensions (WxHxD): 520 x 450 x 180
Mounting: 6x 5mm screws
Weight: Approx.6Kg.
Housing: Aluminium elox.
Colour: Black
Cable entry: Rear side
Connections: Screwterminals
Operation voltage: 24VDC or 230VAC
Options: Poweramplifers AW8121, AW8241 and P-8501
See separate datasheet.
TOP VIEW
450
180
125
50
100
100
250
570
1
0
0
1
0
0
FRONT VIEW
REAR VIEW
SIDE VIEW
MOUNTING HOLES Ø 5,2MM
www.zenitel.biz\Communication & Security Systems\Zenitel Marine
X2
X1
K1
1 2 3 4 5
1 2 3 4 5 6 7 8 9 10 11
1 2 3
X3
520
FRONT VIEW
520
OUTPUT LEVEL OVERL. ON
BASS TREBLE M ASTER VOLUME POWER
0 0 5
10 +10 10 +10 0 10
dB +40 -6 0 +1
SERIES POWER AMPLIFIER
