Features
CALL
3
144
134
144
134
Mounting holes Ø 4 mm
SIGN
Document no.
Article no.
STB-5GN_ds rev.03 2004.10.13

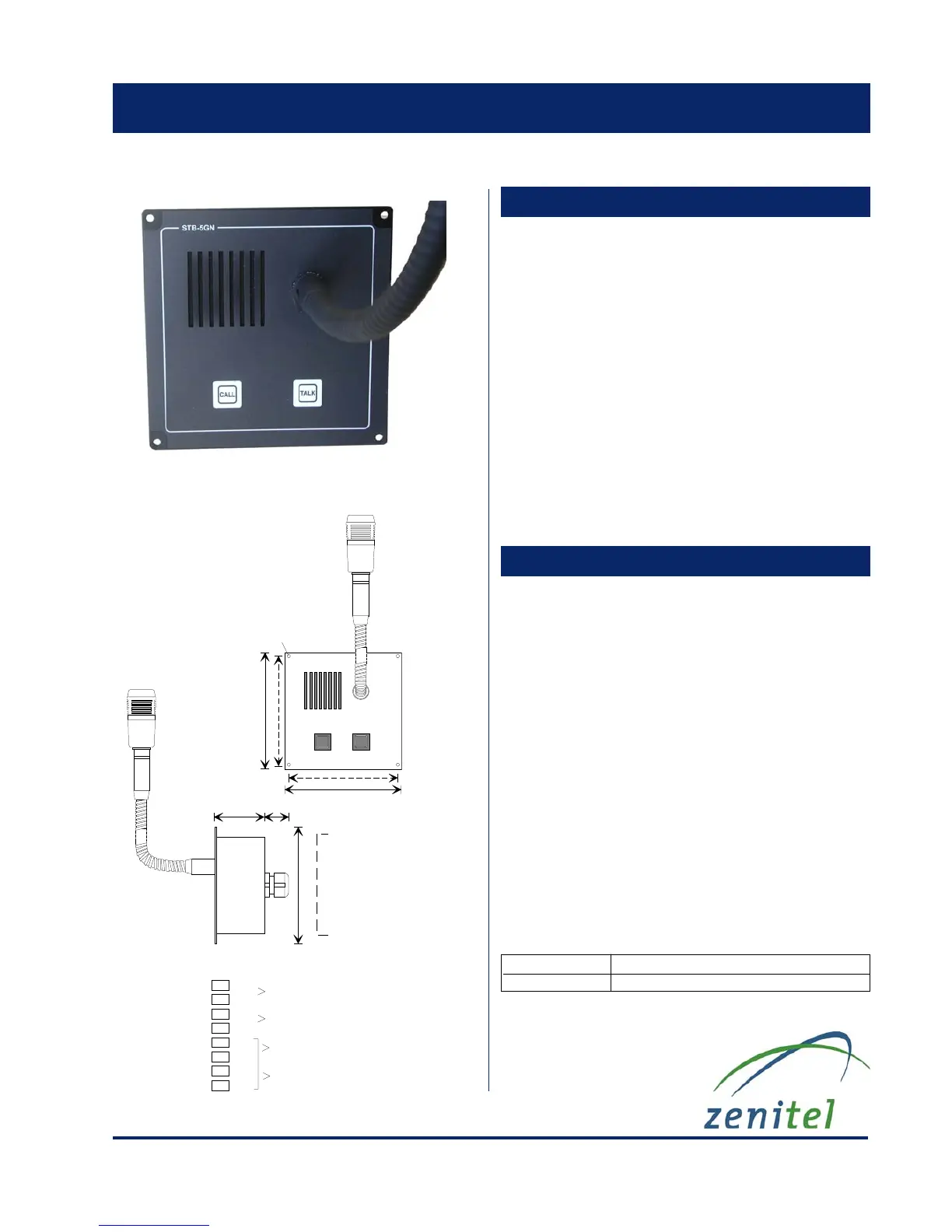

STB-5GN
Description:
Technical data:
STB-5GN
Talk-Back Systems
SS LINE
A
B
0V
+24V
0V
+24V
0V
+24V
SIGNAL DEVICE IN
EXTRA SIGNAL DEVICE
IN
OUT
SCREW TERMINAL
1
2
3
4
5
6
7
8
STB-5GN
· Talk-Back substation, designed for multipurpose indoor
use ( engine room )
· Delivered for flush or bulkhead mounting
· Call button for calling Master unit
· Built-in relay circuit for operating of external signalling
devices.
· Loudspeaker
· Gooseneck microphone
Accessories:
Box for bulkhead mounting ( see seperate datasheet )
Material / Colour: Aluminium / black
Connections: Screw Terminals
Loudspeaker: 3 W
Dimensions: See dwg. above
Weight: Approx. 0,9 kg
IP rating: IP-44
Gooseneck microphone M610:
Colour: Black
Length: 330 mm
Type: Uni-directional cardioid
microphone ( dynamic )
Freq. response: 50 - 16 000 Hz
Sensitivity: 1,5 mV
PG16
120
57 30
