20
Operation
Pedestal movement

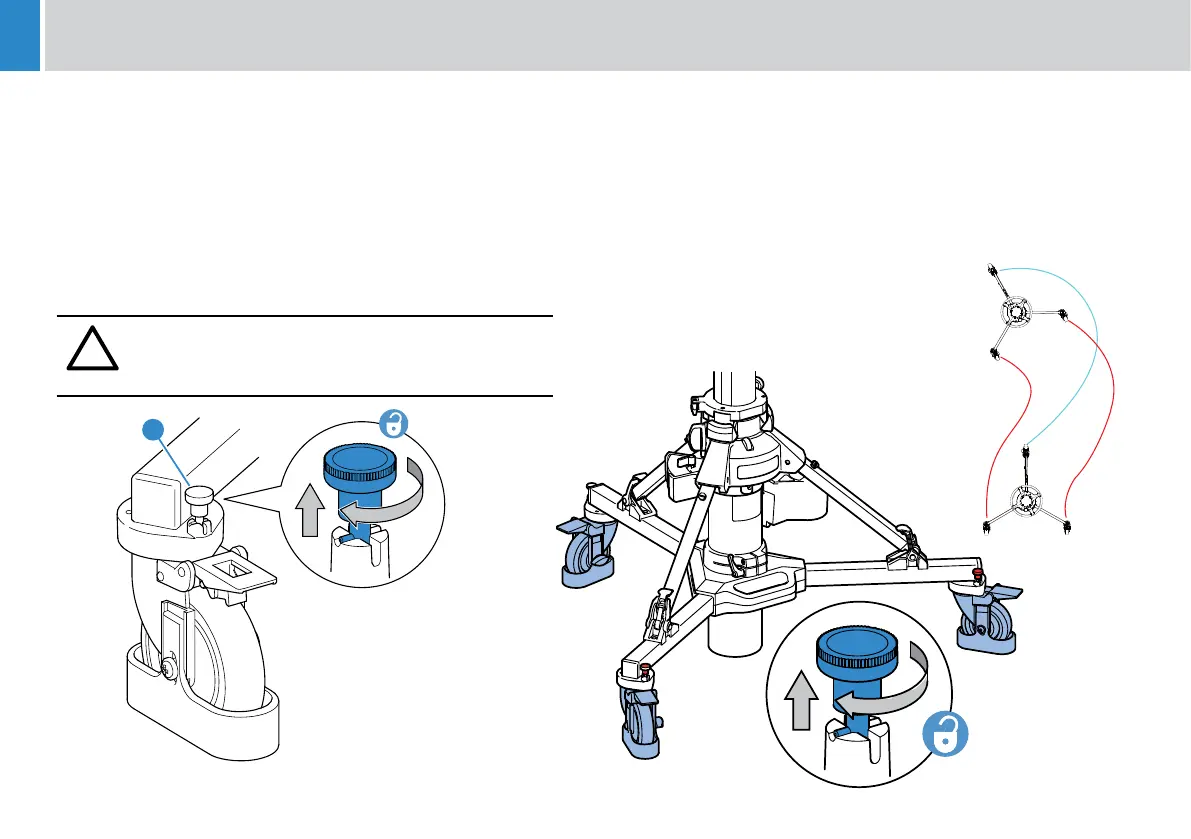

The wheels on the studio version of the skid can be locked in the
straight-ahead position or set to castor freely. The castor/lock
changeover is eected by spring-loaded track lock pins on each
wheel assembly. The pins on the folding legs have red knobs and
the pin on the xed leg has a grey knob. To engage or disengage a
pin(11), pull it up against the spring and turn through 90°.
The pin will only engage with the wheel when the wheel is properly
aligned. This arrangement provides castor, track and steer motion.
!
WARNING! To ensure maximum stability, particularly
when moving over uneven ground, reduce pedestal
height to a minimum.
Castor motion (Free Travelling)
For castor motion:
Disengage all three track locks.
The skid can now be moved freely in any direction.
11
x 3
All three wheels
with free rotation
