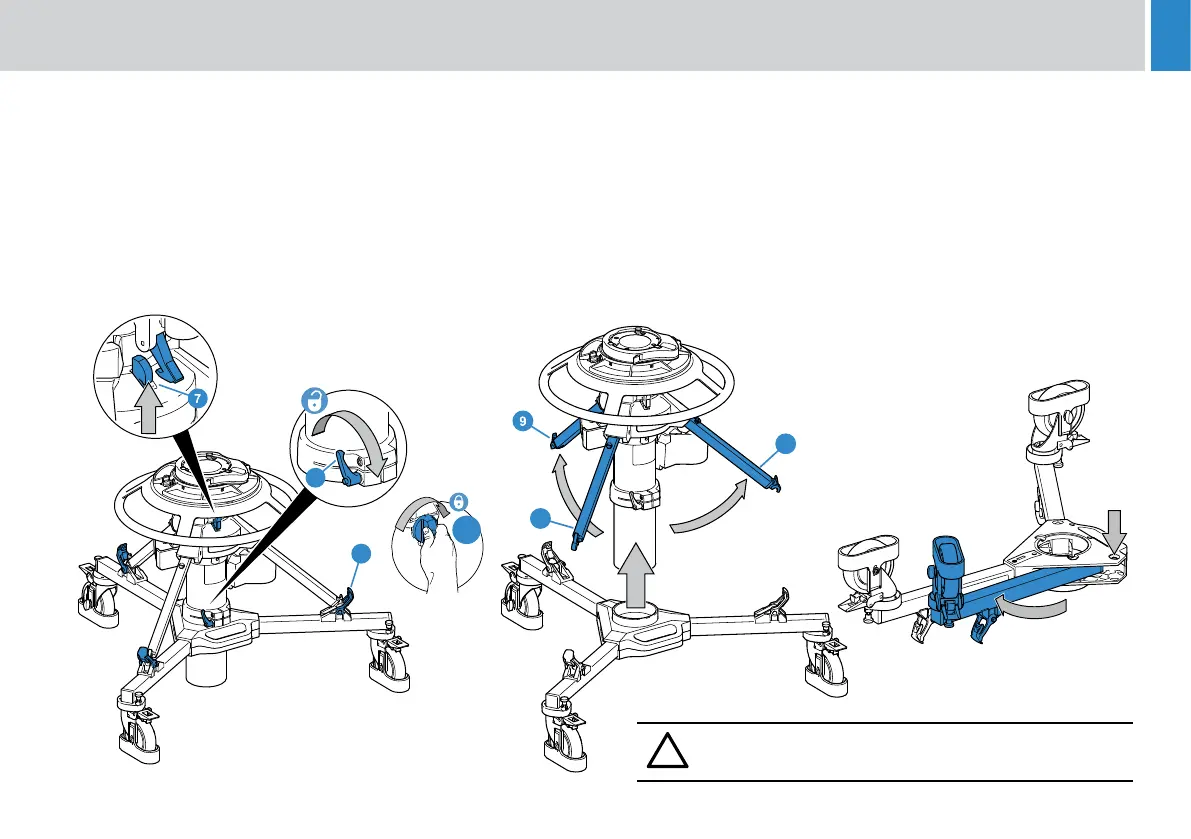

5. Set the safety catch slide (7) to ON (I) and fully depress both columns until the safety catch engages and tighten the bottom clamp (3).
6. Release the skid clamp (13).
7. Release the three rubber foot straps (14) from the struts.
8. Raise the struts which will remain raised when released. Lift the complete column vertically o󰀨 the skid.
9. Turn the skid over, depress the locking plungers and fold the skid legs, ensuring that the plungers lock in the closed position.
!
WARNING! The column will be unstable if stood on its
base or on the folded struts.
