27
Maintenance
Strut Payload / Force Part No.
Factory Fitted 30-55 kgs / 450N 3328--305
Supplied loose with Pedestal 55-70 kgs / 600N 3328-385
Available to purchase 0-30kgs / 270N 3328-307
18
23
24

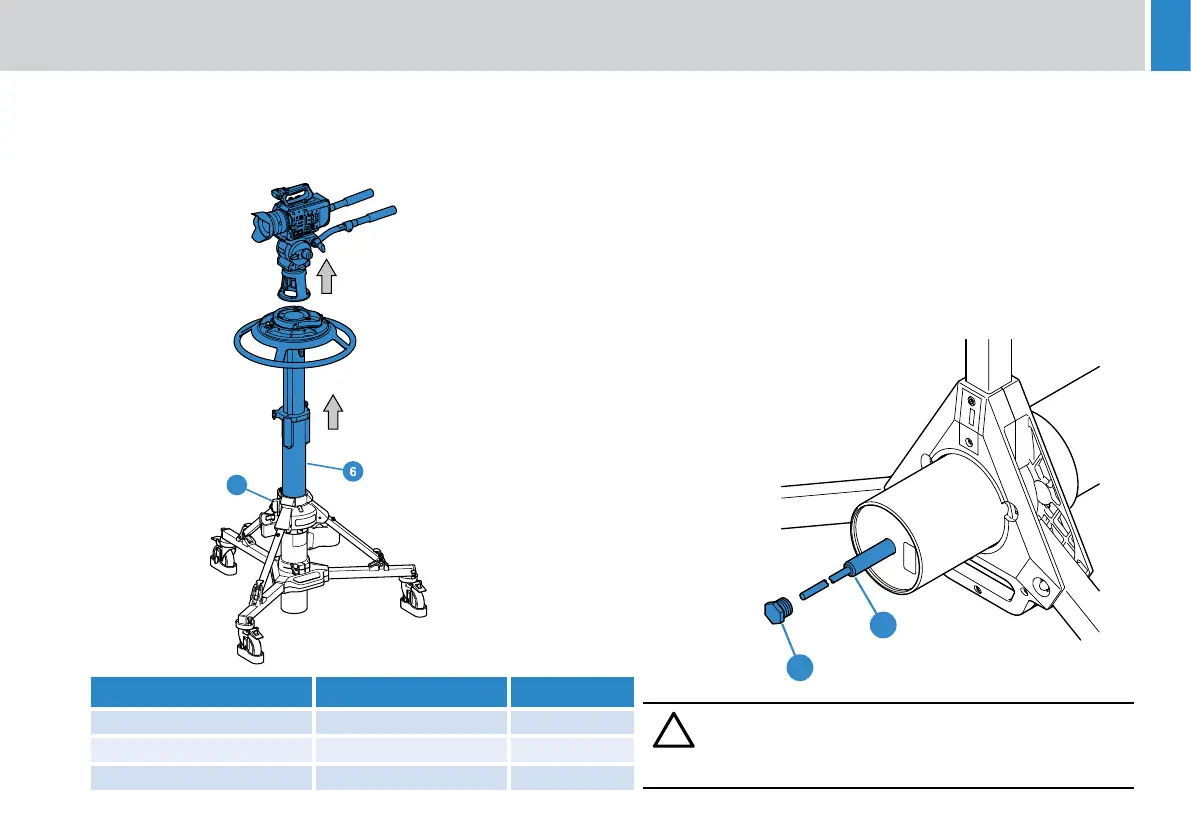

2. Remove the payload, release the bottom clamp (18), raise the
bottom stage (6) to its maximum height. Both stages must be
fully extended and the payload removed.
3. Tip the pedestal over and carefully lay it on its side.
4. Unscrew and remove the centre end plug (24) from the base of the
telescopic column.
5. Withdraw the gas strut (24) from the column.
6. Fit the new gas strut, cylinder end rst, carefully guiding it up
through the column until it is fully engaged.
7. The strut is correctly tted when the thread on the end plug (23)
can be started in the column without compressing the strut.
8. Tighten the end plug (23).
9. Carefully stand the pedestal upright.
WARNING! Make sure that the pedestal is at it’s
maximum height before tipping it over and removing the
centre plug. If not do not attempt to remove the nut (23)
as the strut will be ejected under pressure.
