Adjustments
10 After considerable use the platform slide clamp or pan and tilt brakes may require adjustment.
Platform slide clamp adjustment
11 The platform slide clamp should be set so that, in the up or clamped position it prevents the platform
slide from being moved, while in the down or released position it allows free adjustment of the slide. To adjust
the clamp, proceed as follows (Fig 4.3):
11.1 On the right-hand side of the platform, carefully remove the self-adhesive label (2) to reveal the
slotted shaft (1).
11.2 Pull the slide clamp lever (4) fully upwards.
11.3 Slacken the clamp screw (3).
11.4 Using a torque screwdriver, turn the slotted shaft (1) fully clockwise to a torque of 4.0 Nm
(35 lbf in.).
11.5 Tighten the clamp screw (3).
11.6 Move the lever over its full range and ensure that, in the clamped position, it prevents the slide
from being moved, while in the released position it allows free adjustment of the slide. Re-adjust if
necessary.
11.7 Replace the self-adhesive label (2) in the recess in the platform.

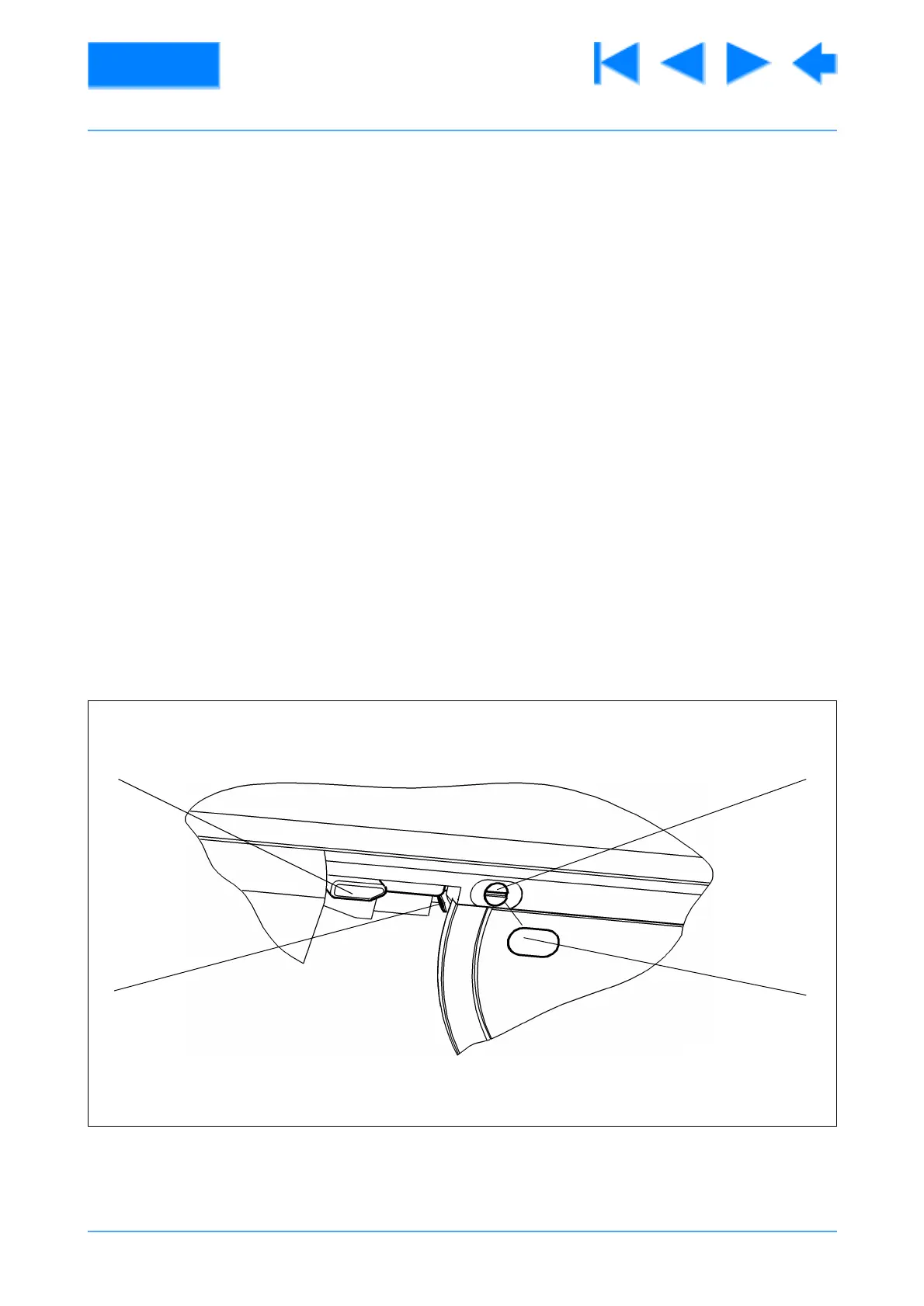

Fig 4.3 Platform Slide Clamp Adjustment
(3)
(4)
(2)
(1)
V70_CLAM
