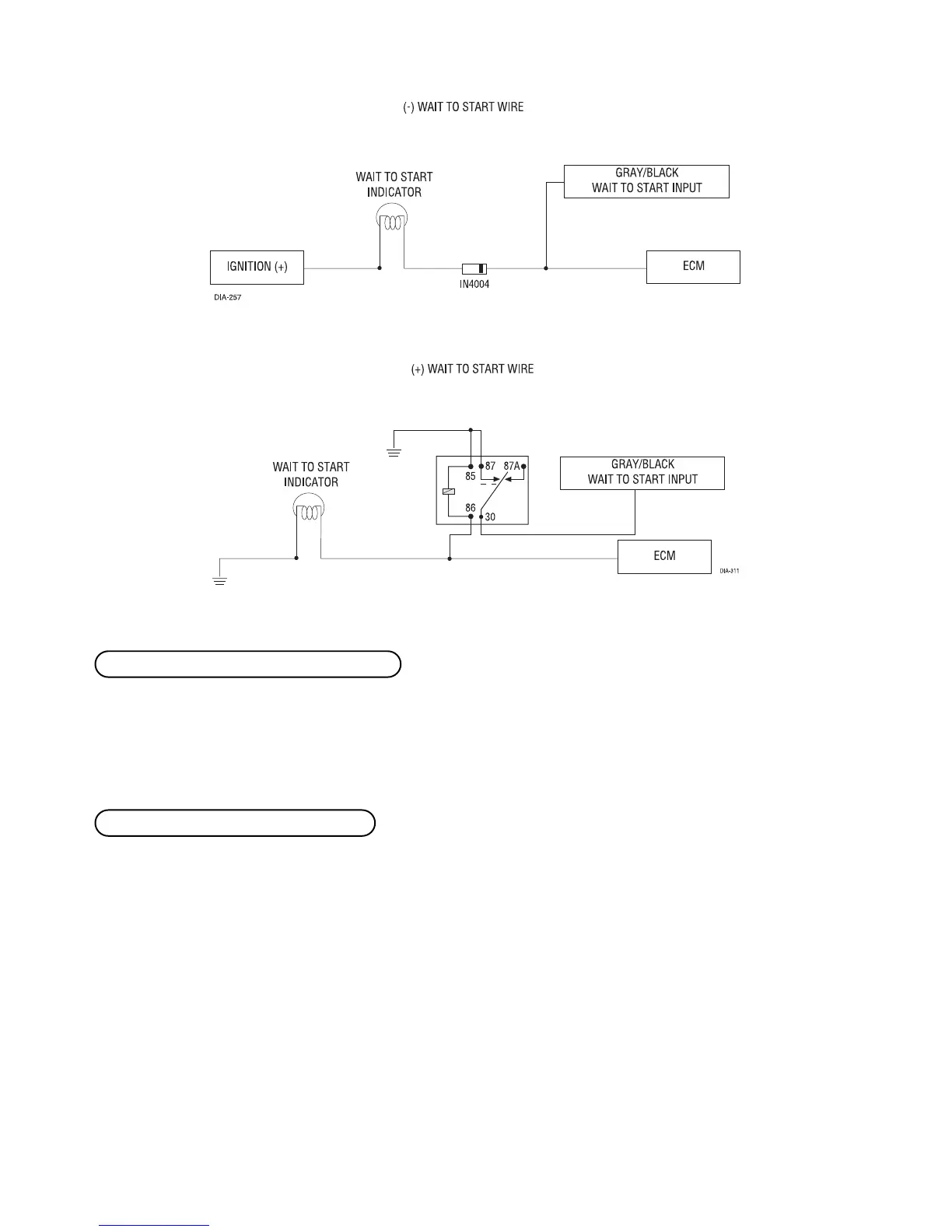

Viper 771XV - Secondary Harness (H2) Wire Details; H2;3 GREEN;WHITE (-) Factory Alarm Rearm; H2;4 VIOLET;BLACK Channel 4 Output

© 2005 Directed Electronics—all rights reserved
2233
This wire sends a negative pulse every time the remote start shuts down or the doors are locked. This can be
used to pulse the arm wire of the vehicle's factory anti-theft device. Use a relay to send a (-) or (+) pulse to the
arm wire.
This wire provides a (-) 200mA output whenever the transmitter button(s) controlling Channel 4 is pressed. This
output can be programmed to provide the following types of outputs (see also the
Feature Menus section):
■
VVaalliiddiittyy::
Output that will send a signal as long as the transmission is received.
■
LLaattcchheedd::
Output that will send a signal when the Channel 4 button(s) is pressed and will continue until the
same button(s) is pressed again.
■
LLaattcchheedd,, rreesseett wwiitthh iiggnniittiioonn::
Similar to the latched output, this type of output turns on the first time the
Channel 4 button(s) is pressed and turns off the next time the same button is pressed. This type of output
additionally stops and resets whenever the ignition is turned on and then off.
■
3300--sseeccoonndd ttiimmeedd::
Output that will send a continuous signal for 30 seconds.
HH22//44 VVIIOOLLEETT//BBLLAACCKK cchhaannnneell 44 oouuttppuutt
HH22//33 GGRREEEENN//WWHHIITTEE ((--)) ffaaccttoorryy aallaarrmm rreeaarrmm
