This wire supplies a 200mA output during engine cranking for additional starter wire(s).
This wire supplies a 200mA output when remote start ignition is active.
rreemmoottee ssttaarrtt sseeccoonnddaarryy hhaarrnneessss ((HH33)) wwiirree ccoonn--
nneeccttiioonn gguuiiddee

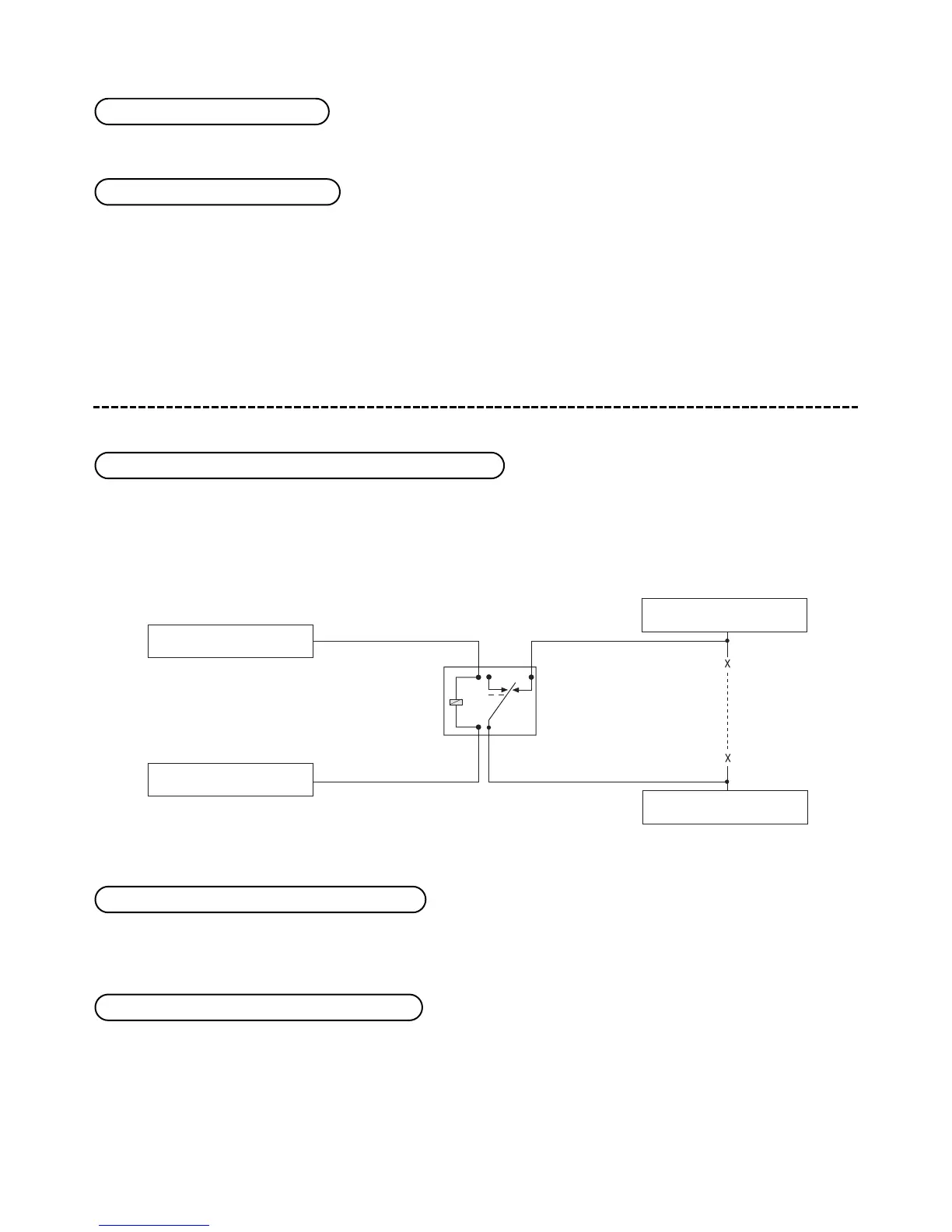

This wire supplies a 200mA output as soon as the module begins the remote start process. It can be used with
a relay to disconnect a sensor from the system as shown below. This wire can also be used as a rear defogger
trigger. This output can be programmed as a pulsed output.
This wire MUST be connected to hood pinswitch. This input will disable or shut down the remote start when the hood
is opened. It will also trigger the security system if the hood is opened while the system is armed and report Zone 6.
This wire MUST be connected to the vehicle's brake light wire. This is the wire that shows (+) 12V when the brake
pedal is depressed. The remote start will be disabled or shut down any time the brake pedal is depressed. This
wire will also trigger the security system if the brake pedal is pressed while the system is armed and will report
Zone 1.
HH33//33 BBRROOWWNN ((++)) bbrraakkee sswwiittcchh iinnppuutt,, zzoonnee 11
HH33//22 GGRRAAYY ((--)) hhoooodd ppiinnsswwiittcchh iinnppuutt,, zzoonnee 66
HH33//11 BBLLUUEE//WWHHIITTEE ((--)) ssttaattuuss//ddeeffooggggeerr oouuttppuutt
PPIINNKK ((--)) 220000mmAA 33
rrdd
iiggnniittiioonn oouuttppuutt
PPUURRPPLLEE ((--)) 220000mmAA ssttaarrtteerr oouuttppuutt
