MACHINE DESCRIPTION

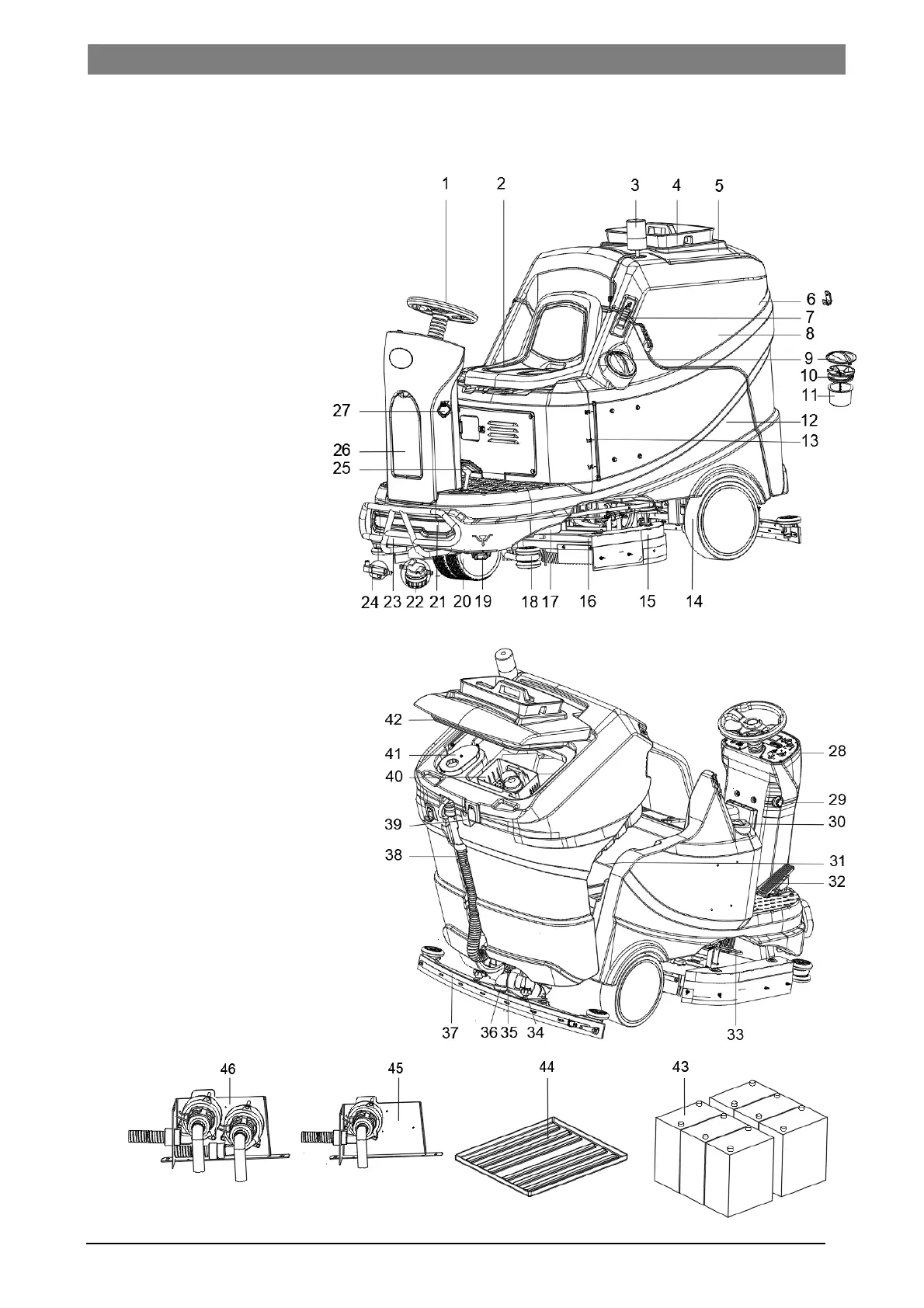

MACHINE STRUCTURE *--optional
1. Steering wheel
2. Seat, adjustable
(with safety switch)
3. Warning light
4. Utility caddy (*)
5. Recovery tank lid
6. Hook
7. Latch(x2)
8. Recovery tank
9. Filter cover
10. Filter hose holder
11. Filter support
12. Solution tank
13. Water level tube
14. Drive wheels (with
mechanical brake)
15. Side splashguards
16. Brush assembly
17. Pump
18. Bumper wheels
19. Solution tank drain cover
20. Front wheels
21. Front lights
22. Solution filter
23. Front bumper
24. Solution shut-off valve
25. Mechanical brake pedal
26. Internal storage cover
27. USB charging port
28. Control panel
29. Emergency switch
30. Cup holder
31. Recovery tank support cable
32. Accelerator pedal
33. Brush/Pad driver installation stop
34. Squeegee knobs
35. Squeegee angle adjusting knob
36. Squeegee vacuum hose
37. Squeegee
38. Recovery water drain hose
39. Squeegee hook
40. Debris collection box
41. Vacuum intake filter
42. Tank cover gasket
43. Batteries (N/A)
44. Battery tray (*)
45. Vacuum system
46. Dual vacuum system (*)
Figure 2
Figure 1
