INSTRUCTION FOR USE ENGLISH
14
9. Place the protective cap on each terminal, then connect the battery connector to machine.
10. Assemble the whole recovery tank assembly in the reverse order of disassembly.
11. Carefully lower the recovery tank.

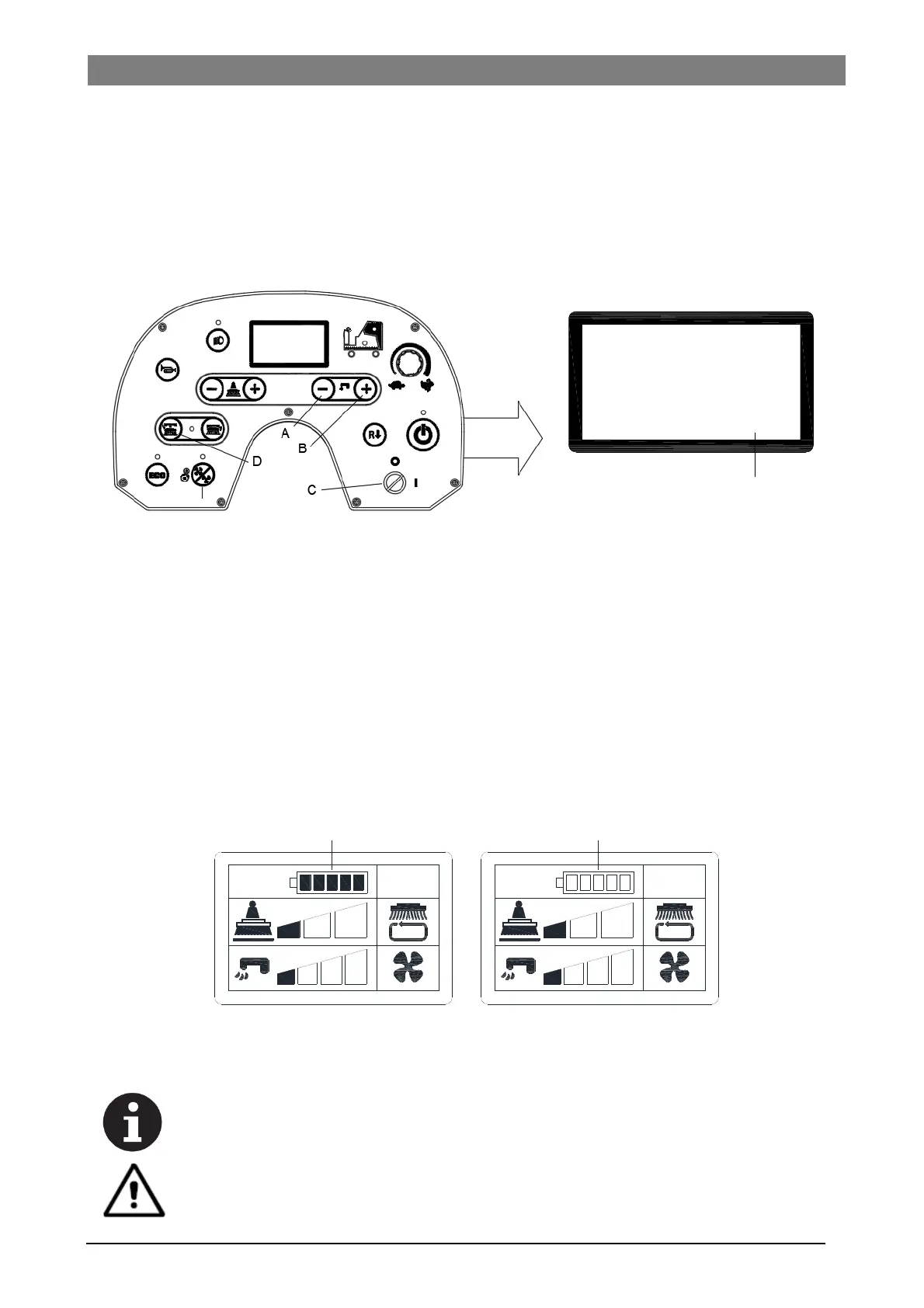

Battery type setting (WET/GEL/AGM/DIS/ENE)
Access to select battery mode
According to the type of batteries (WET/GEL/AGM/DIS/ENE), set the machine as follows:
1. Press water flow button "-"(A, Figure 6) and "+"(B, Figure 6) at the same time.
2. Insert the ignition key (C, Figure 6) and turn it to "I".
3. Several seconds later enter to the screen of selecting battery mode (Figure 6).
4. Press water flow button "-"(A, Figure 6) and "+"(B, Figure 6) to select battery mode (H, Figure 6).
5. Press the release button (D, Figure 6), 3 seconds later show " Update OK" means setting succeeds, restart
machine. (C, Figure 6).
Battery charging
Fully charge the batteries (see the procedure in Maintenance chapter).
Battery discharge
When the batteries pattern is full (G, Figure 7), the batteries are fully charged. When the batteries pattern is low (H,
Figure 7), the batteries must be charged. A few seconds after the low battery pattern shows, the brush motors are
automatically turned off, while the drive system stays on. Drive the machine to the appointed recharging area imme-
diately.
BRUSH/PAD-HOLDER INSTALLATION AND REMOVAL
NOTE
Install either the brush (A, Figure 8) or pad-holder (B and C, Figure 8) according to the type
of floor to be cleaned.
CAUTION
!
Before installation or removal of brush or pad-holder, make sure all the switches on machine
are in off position and the squeegee is lifted off the floor. The operator must be equipped with
suitable personnel protection devices, such as gloves to reduce the risk of accidents.
AGM
0000.H
G
AGM
0000.H
H
Value:
Access to select battery mode
Panel Setting
1 Battery Type
Cust
H
AGM
Figure 6
Figure 7
