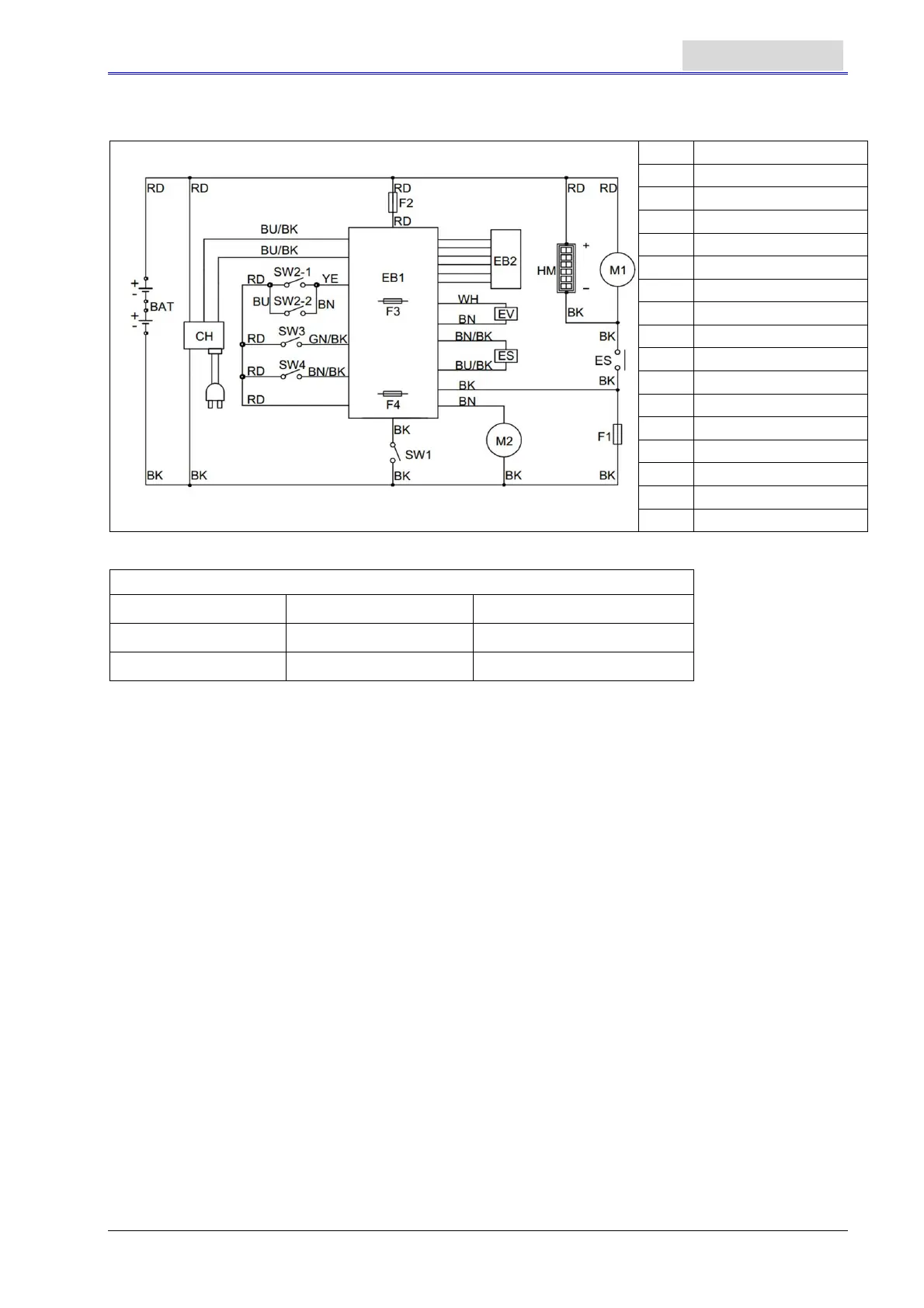

CIRCUIT FIGURE OF AS430B AND AS510B
BAT
Battery
CH
Charger
EB1
Control circuit board
EB2
LED board
ES
Contactor
EV
Solenoid valve
F1
Brush motor fuse
F2
Vacuum motor fuse
F3
Control circuit board fuse
F4
Solenoid valve fuse
M1
Brush motor
M2
Vacuum motor
SW1
Power switch
SW2
Brush motor switch
SW3
Vacuum motor switch
SW4
Solenoid valve switch
HM
Timer (Only for AS510B)
COLORS CODES
RD: Red BN: Brown BU/BK : Blue /Black
BU: Blue YE: Yellow GN/BK: Green/Black
BK: Black WH: White BN/BK: Brown/Black
