SQUEEGEE ASSEMBLE INSTALLATION AND REMOVAL
CAUTION!
It is advisable to wear protective gloves when installation and removal the squeegee assemble because there
may be sharp debris.
1. Push the machine to a level floor.
2. Ensure that the machine is off.
3. Lower the brush/pad-holder deck (12, Figure 1) by lifting the pedal (36), Brush on the floor.
4. Place squeegee in the place between brush deck and front wheel.

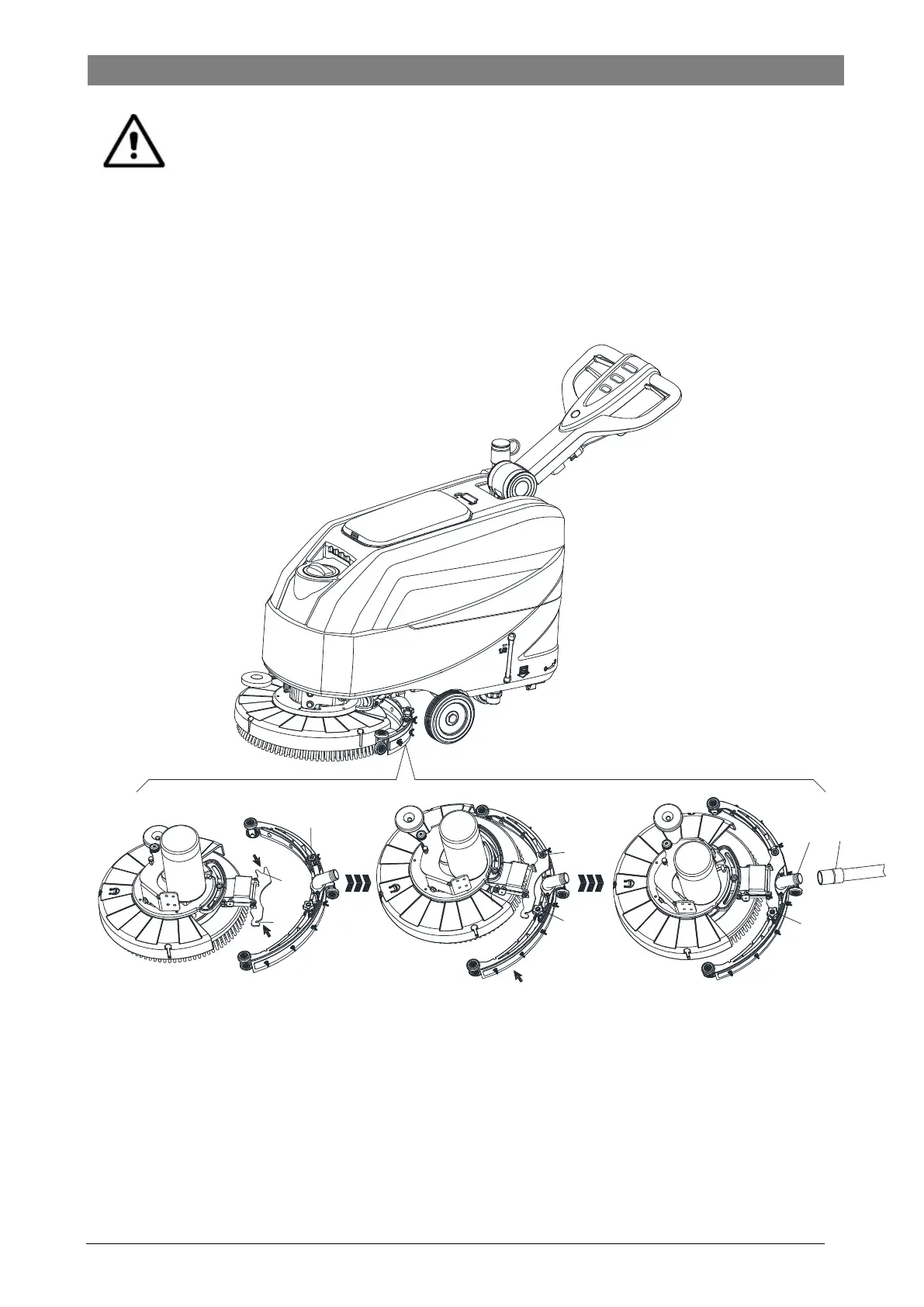

5. Fix stud A to the openg B, then fix another screw C to the open D, fasten squeegee knob and connect recovery water drain hose F
to the connector E (Figure 4).
6. Disconnect the squeegee in the reverse order of disassembly.
A
D
D
E
Figure 4
A
B
F
C
Figure 4
