Maintenance
13

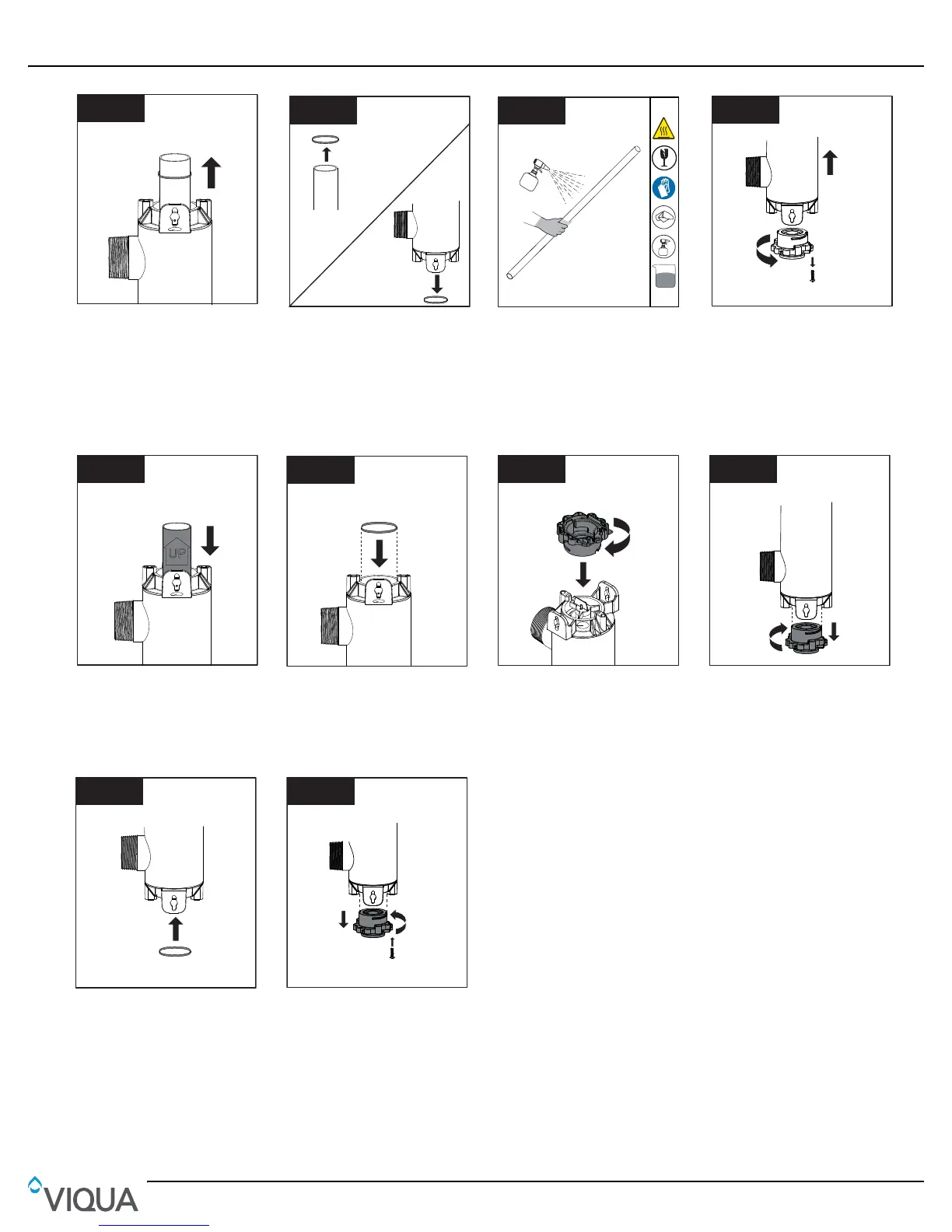

Note: After replacing the UV lamp or sleeve perform the disinfection procedure, refer to Section 3.2.
5
• Remove the sleeve.
6
• Remove O-ring from top of
the sleeve.
• Remove O-ring from bottom
of the chamber (it may fall
during sleeve removal
process).
7
Mild
Acid
• Clean the sleeve with a cloth
soaked in CLR, vinegar or
some other mild acid and
then rinse with water.
Note: If sleeve cannot be
cleaned completely or it is
scratched or cracked, then
replace the sleeve.
8
3
1
2
• Connect the sleeve bolt at the
bottom of the sleeve
assembly.
9
• Reinstall the sleeve with
arrow pointing up.
Note: DO NOT rotate sleeve
and touch glass with bare
hands.
1010
• Reinstall the new lubricated
O-rings over the top end of
the sleeve.
1111
2
1
• Connect the sleeve bolt to the
top of the sleeve assembly.
12
12
1
2
• Remove the sleeve bolt at the
bottom of the sleeve
assembly.
1313
• Reinstall the O-ring at the
bottom of the sleeve.
1414
3
2
1
• Connect the sleeve bolt at the
bottom.
• When service is complete,
assemble the prerequisites in
the reverse order of
disassembly.
