Installation
9
Note: After installing the UV lamp or sleeve perform the disinfection procedure, refer to Section 3.2.
3.2 Disinfection Procedure
UV disinfection is a physical disinfection process and does not add any potentially harmful chemicals to the water. As UV
does not provide a disinfection residual, it is imperative that the entire distribution system located after the UV be chemically
disinfected to ensure that the plumbing system is free from any bacteriological contaminants. The disinfection process must
be performed immediately after the UV unit is installed and repeated thereafter whenever the UV is shut down for service,
without power, or inoperative for any reason. The procedure for sanitizing the plumbing system is readily accomplished as
follows:

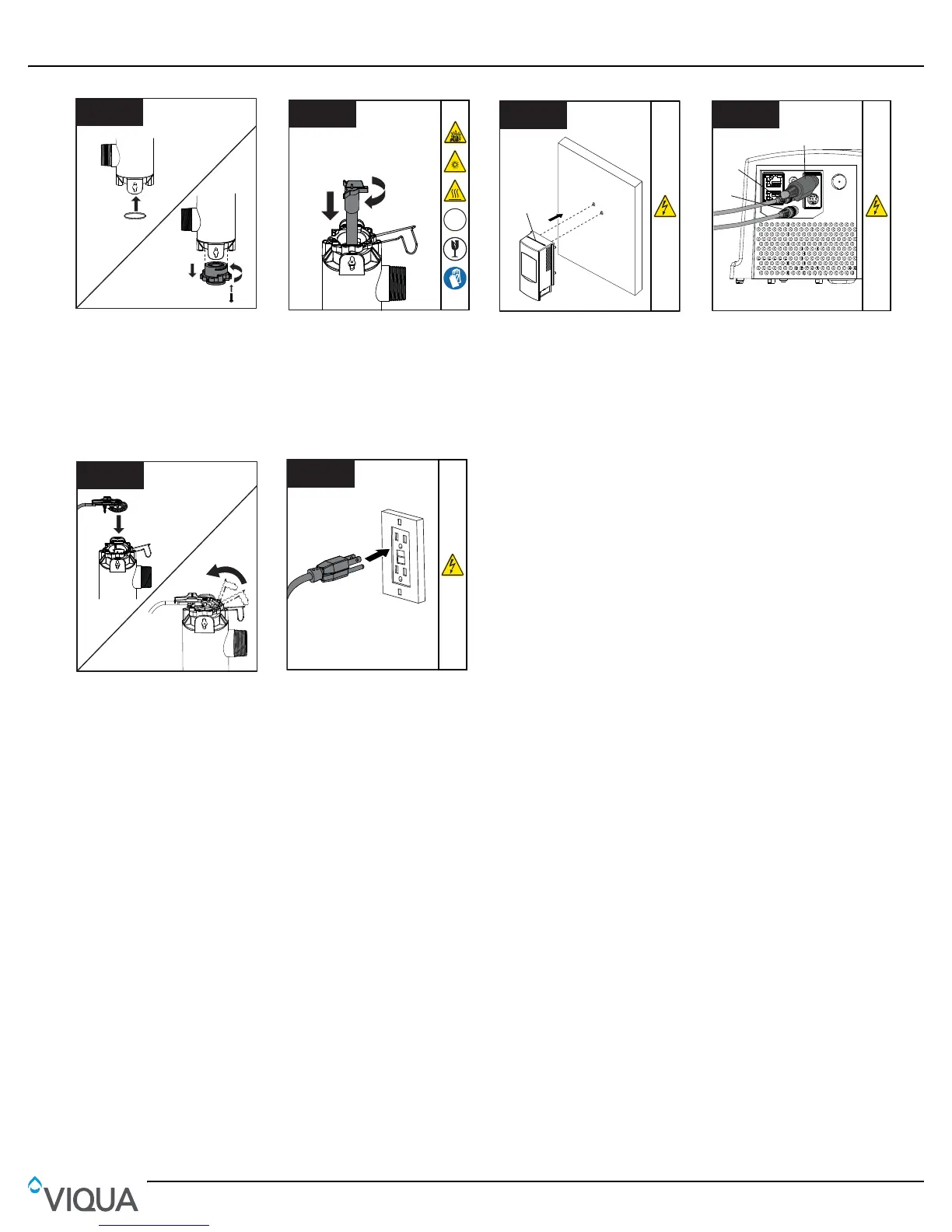

• Wet O-ring with water then
place over bottom end of
sleeve.
• Reconnect the sleeve bolt
and install screw.
10
2
1
Hg
UV
• Install and rotate the lamp
into the sleeve assembly.
Ensure to rotate the lamp
completely.
Note: Do not touch glass with
bare hands.
11
4¹⁄16“
(10.4cm)
• Install the controller unit to
the wall. Ensure that the
controller is installed higher
than the chamber and away
from all water sources.
• Connect UV sensor into blue
jack (For PRO and Plus
models only).
• Connect Flow meter sensor
into green jack (For PRO10,
20, 30 only).
• Connect CoolTouch™ fan
into either receptacle.
13
• Install lamp harness onto
chamber.
Notes: 1) Ensure lamp
harness ground is inserted
into chamber ground
terminal.
2) Ensure magnet on top of
chamber aligns with proximity
sensor on lamp harness.
• Lock wire form into position.
14
• Connect controller to power
outlet.
Note: Lamp ignition may take
up to 25 seconds.
• Allow water flow to one faucet
or other water outlet, then
close the outlet and inspect
for leaks.
Note: Outlet must be
protected by a Ground Fault
Circuit Interrupter (GFCI).
