Viscount Physis OrgansReference Manual
models with 12 or 20 audio outputs
models with 4 audio outputs
9.11 REGULATING THE VOLUME OF THE REAR OUTPUTS (EXT. OUT
VOLUME function)
The external sound configuration can be customized further by regulating the volume of the rear outputs.

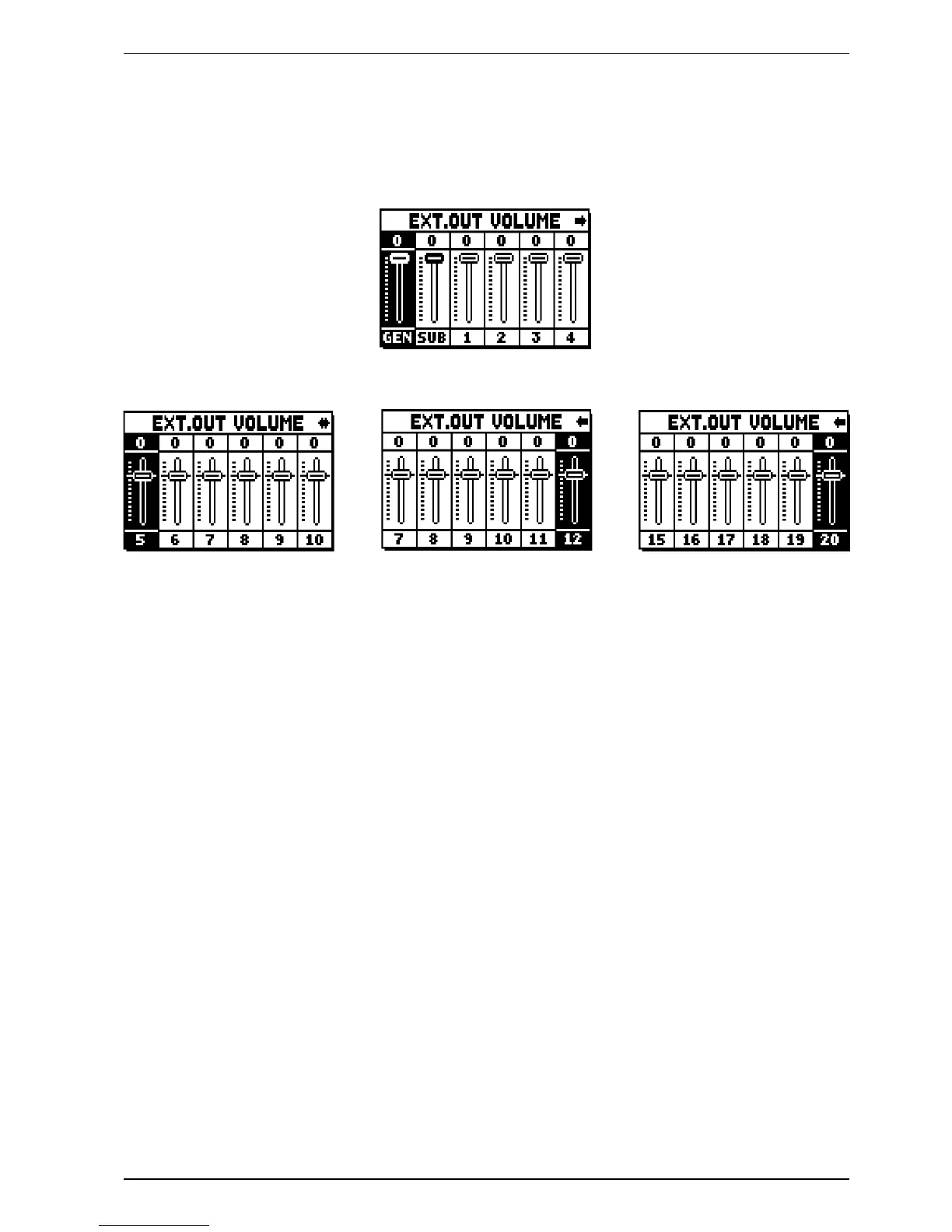

To access these options, select the EXT. OUT VOLUME field. The following screen will appear.
The options available are:
o GEN (general): general volume of the PROG. OUT outputs. It can be also adjusted through the [MASTER
VOLUME] potentiometer (to do so, see Programmable Functions, par. 9.5).
o SUB (general sub): volume of the low frequencies output, [GEN. SUB] connector.
o 1 – 4 / 1 – 12 / 1 – 20: general volumes of the line signal, from the respective output connectors.
