Vision Max Pro User Manual156
© 2015 Vision Engraving Systems

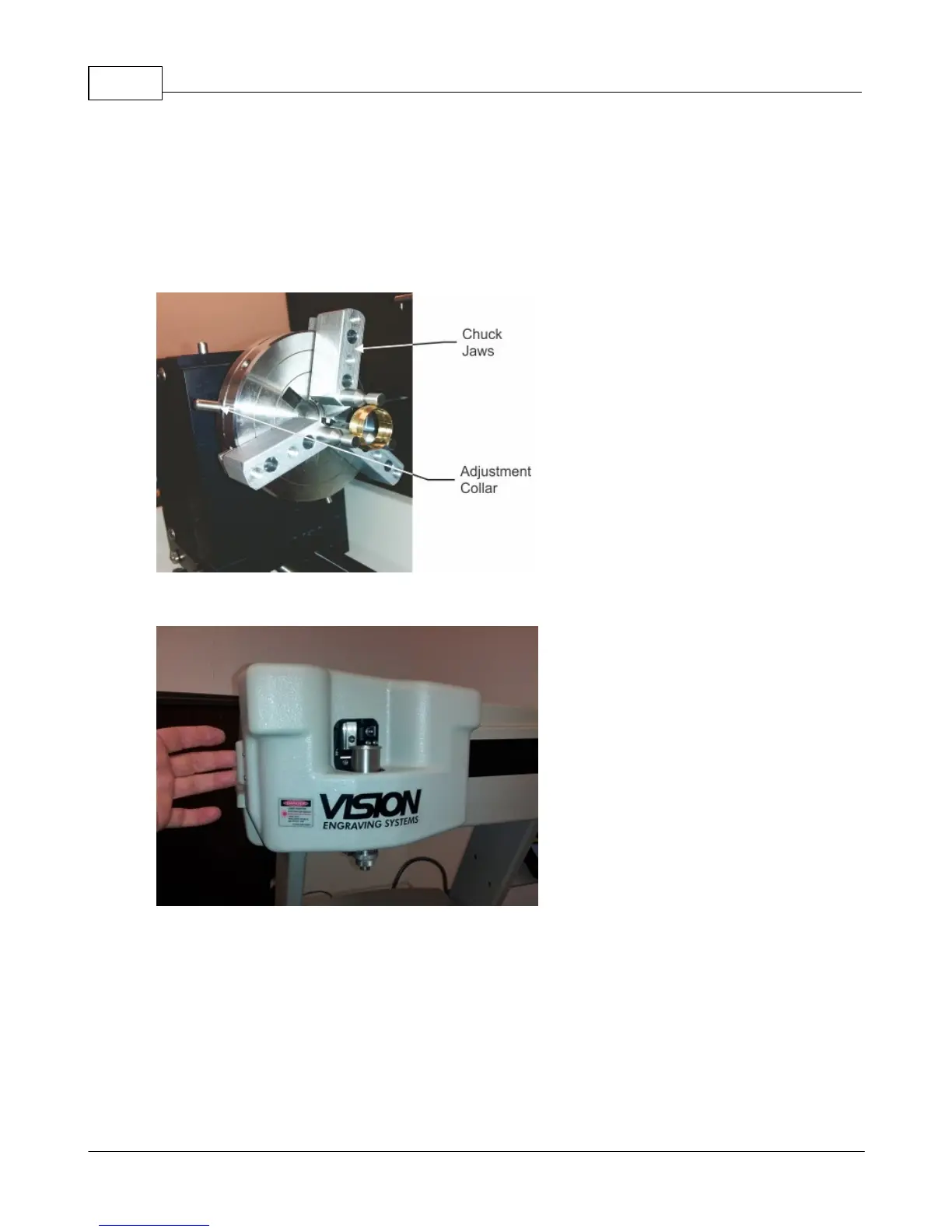

Install the item to be engraved with the pins on the inside if the outside will be engraved, or on the
outside of the item if the inside will be engraved. Turn the adjustment collar to tighten the jaws of the
chuck against the item. The item must be held in place firmly. Be careful to not over-tighten the chuck,
as this may distort or damage more delicate items. NOTE: If engraving more than one ring of the same
style, the positioning of each ring in the chuck will need to be consistent. It is recommended to select
the locating pins that allow rings to be positioned in the same location each time. Otherwise, the
procedure below will have to be performed for each individual ring.
Open the spindle cover by pulling on the left side of the cover.
