Vision Max Pro User Manual170
© 2015 Vision Engraving Systems

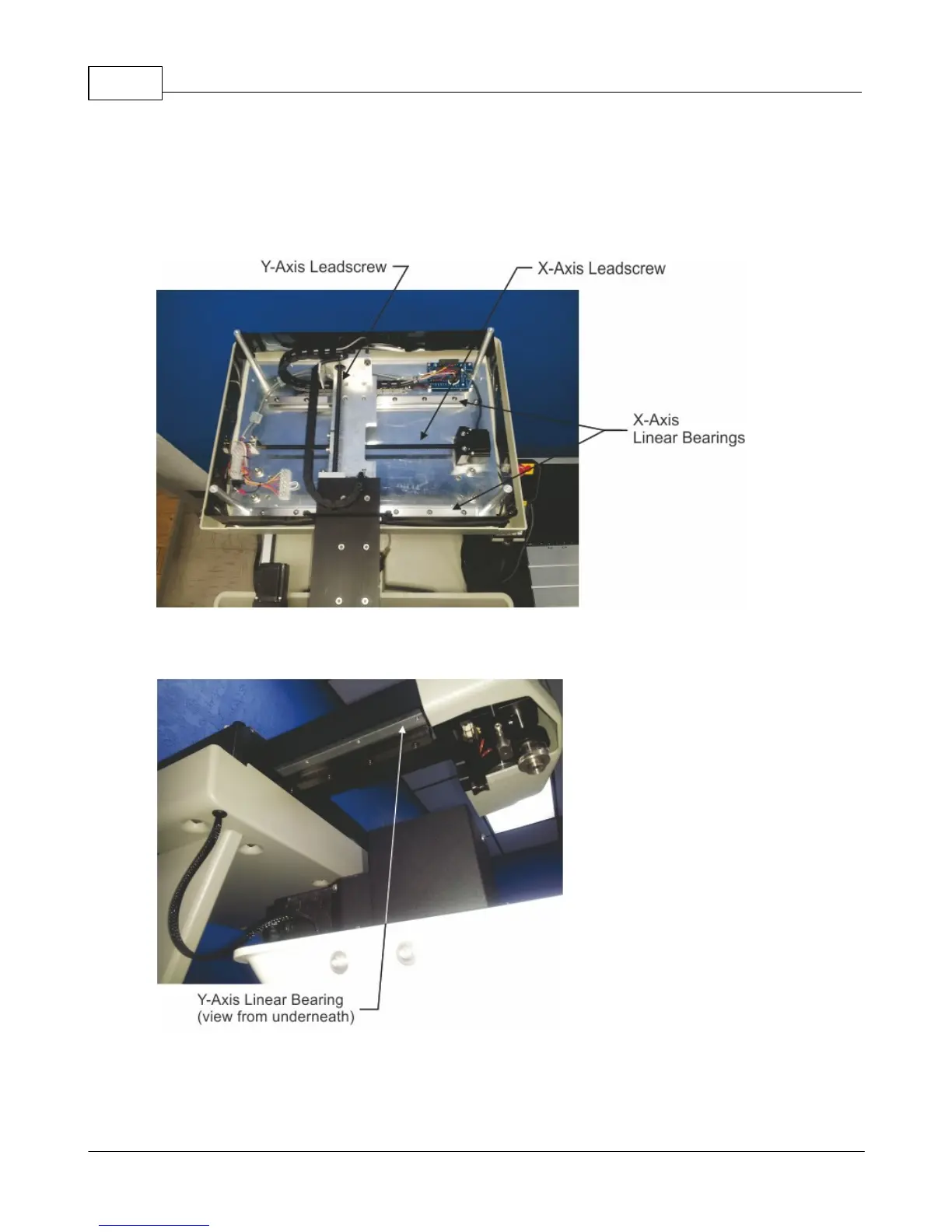

Inside the cover, the X and Y-axis Leadscrews and the X-Axis Linear Bearings are easily accessible.
Clean the Linear Bearings by wiping them down with a clean cloth. The Leadscrews will likely have
lubricant residue on them. Clean the Leadscrews by using a brush or a clean cloth to remove any large
debris.
The Y-Axis Linear Bearing can be accessed by moving the spindle forward (in the Y-Axis). The bearing
is under a cover, but accessible from underneath the cover. Clean this bearing with a cloth.
