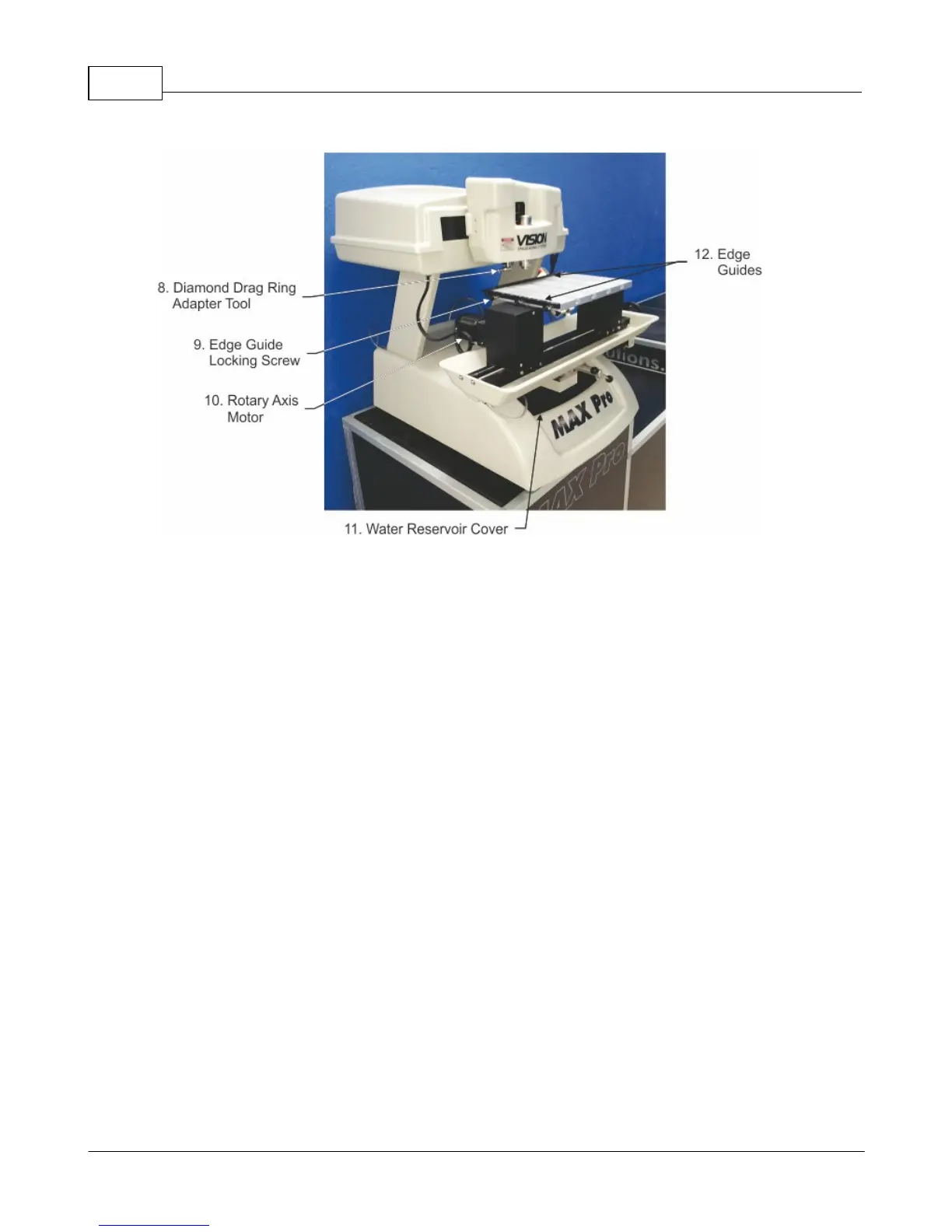

8. Diamond Drag Ring Adapter Tool - This tool allows access to the interior of rings or cylinders for
internal engraving.
9. Edge Guide Locking Screw - There are 3 locking screws on each edge guide to allow the guides to
be raised or lowered depending on the thickness of the material to be engraved on the T-Slot table.
10. Rotary Axis Motor - This motor rotates the rotary axis.
11. Water Reservoir Cover - Water is held in the lower portion of the machine under this cover. The
water is recirculated via a water pump, water supply nose cone, water catch tray and return line.
12. Edge Guides - These guides can be used to position items on the T-Slot table. They can be raised
or lowered depending on the thickness of the material being engraved.

Vision MAX Pro Specifications

General

Brand	Vision
Model	MAX Pro
Category	Engraver
Language	English
