Operation 47
© 2015 Vision Engraving Systems

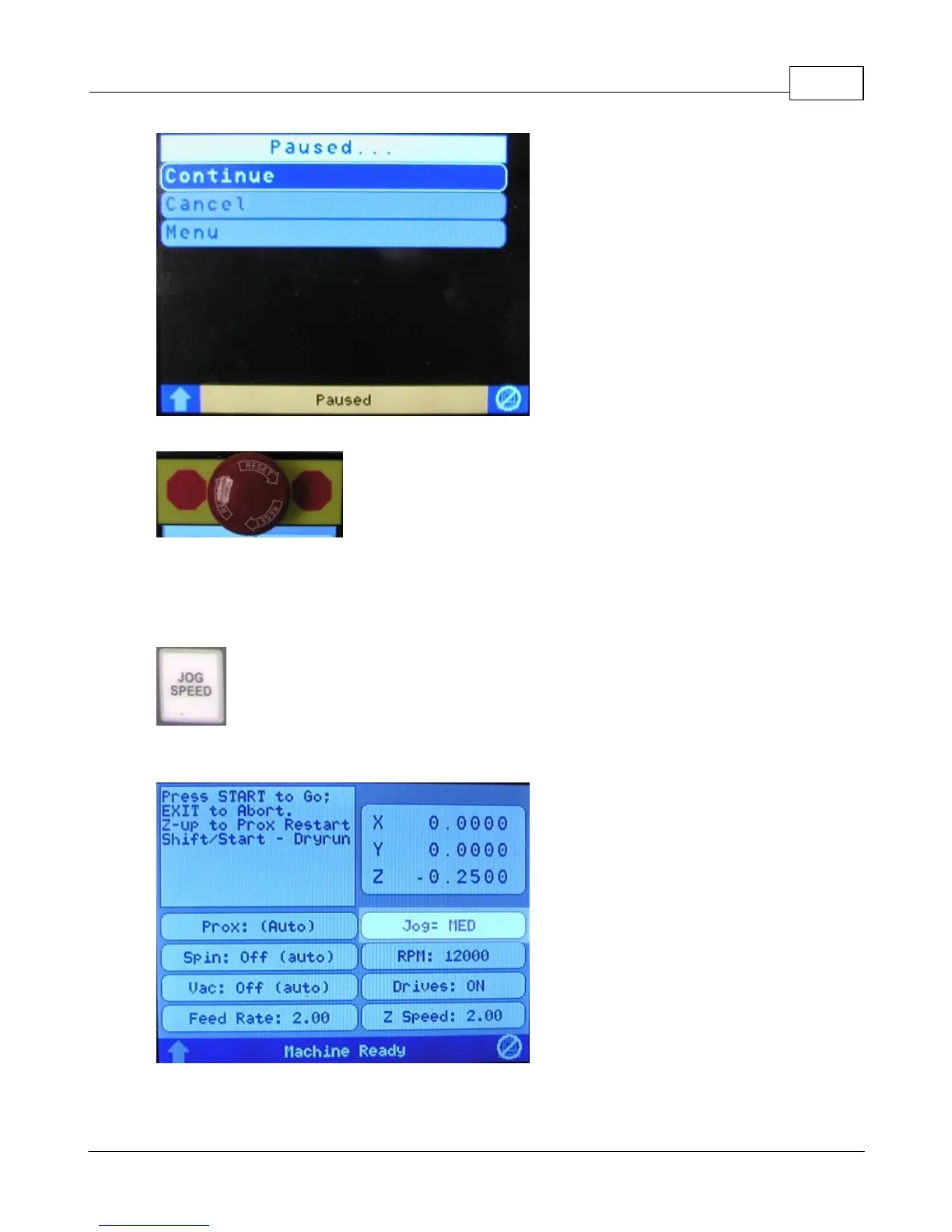

Emergency Stop Button - This button will stop engraving immediately, leaving
the cutter in the down position and will power off the X, Y and Z stepper motors and also shut off the spindle motor and
auxiliary. Once you have pushed the Emergency Stop Button, you must twist the knob clockwise to release it.
Press the Goto Home button to power up the machine and move the spindle back to the home position.
The job you were running will be canceled. To run a job, send it to the machine again.
Jog Speed Button - The Jog Speed button will toggle the machine's jog speed between
Fast, Medium and Slow. The current jog speed can be seen on the Pendant screen as highlighted
below.
