Edge Guides: The t-slot table edge guides need to be adjusted to the thickness of material that you are
engraving. If they are higher than the material's surface, the nose cone may ride on top of the edge
guides and the machine may not engrave characters completely.

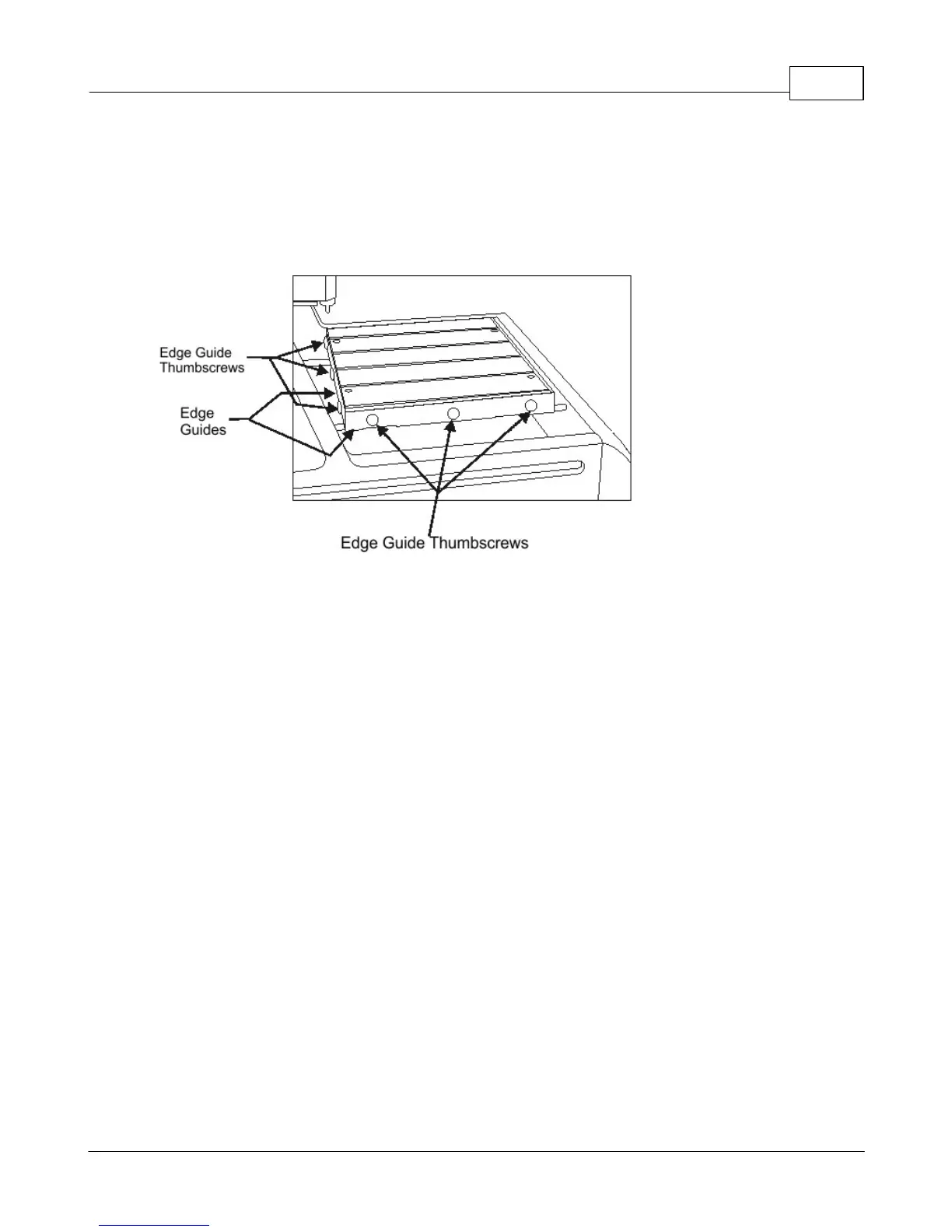

Edge Guides (Side View)
To adjust the edge guides, loosen the edge guide thumbscrews and raise the edge guides above the
surface of the T-slot table, then tighten the thumbscrews. Place the material on the table, then loosen
the edge guide thumbscrews and lower the edge guides until they are even with (or just below) the
material surface. Tighten the edge guide thumbscrews. This process should be repeated any time
materials of different thicknesses are to be engraved.
