6

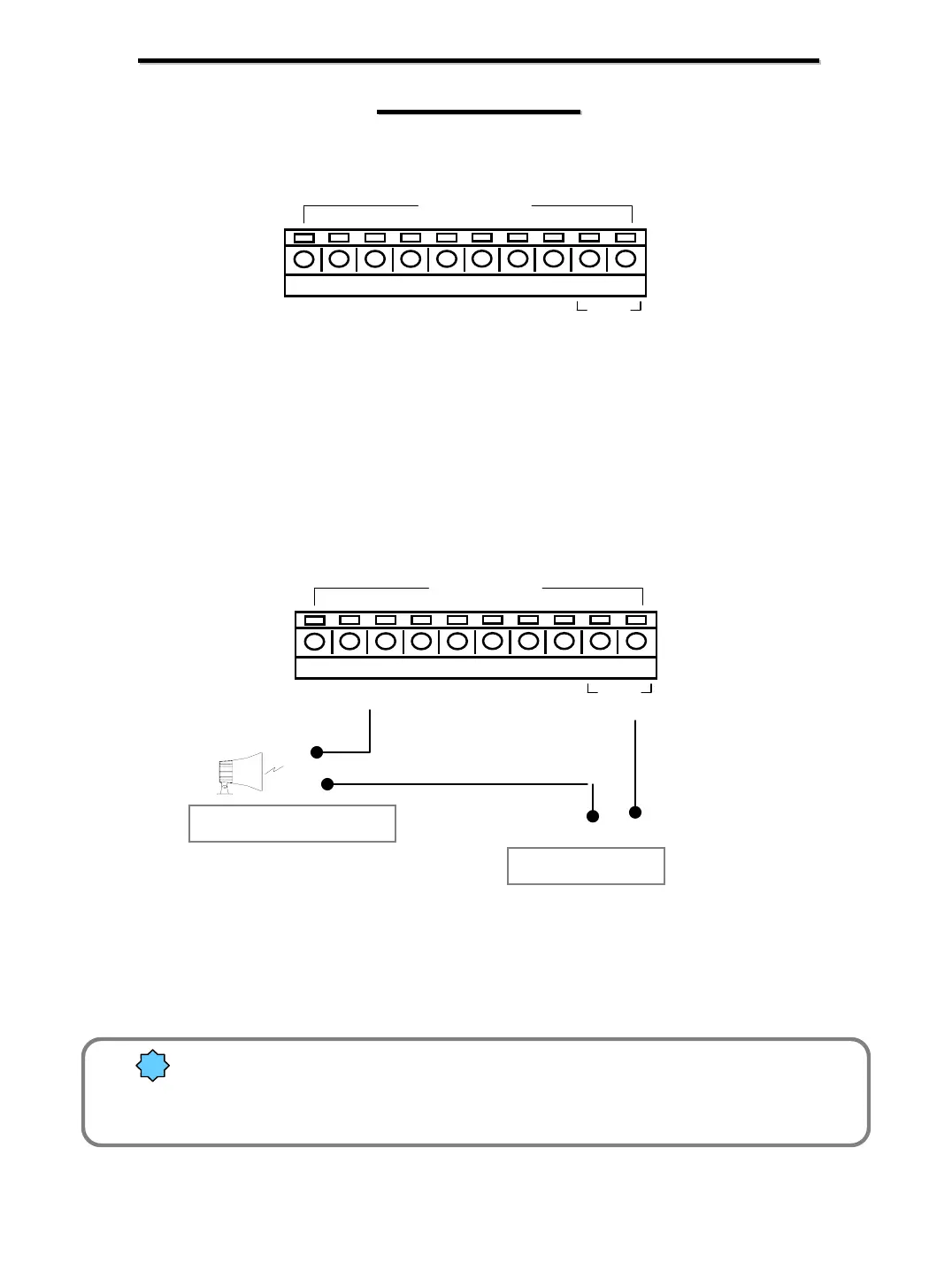

8 SENSOR INPUTS & 8 CONTROL
8 SENSOR INPUTS & 8 CONTROL
OUTPUTS
OUTPUTS
1
2
3
4
5
6
7
8
COM
SENSOR
One line of signal line from sensors such as infrared rays, heat perception, magnetic etc,
should be connected to COM connector and the other line is connected to any available
sensor 1-8 connector.
1
2
3
4
5
6
7
8
COM
CONTROL
()()
Alarm, Siren, relay etc.
Power (DC 12V)
!
¾ The power of the adapter should be no more than 12V and 300mA.
¾ An additional external relay should be used to control any higher current
device.
