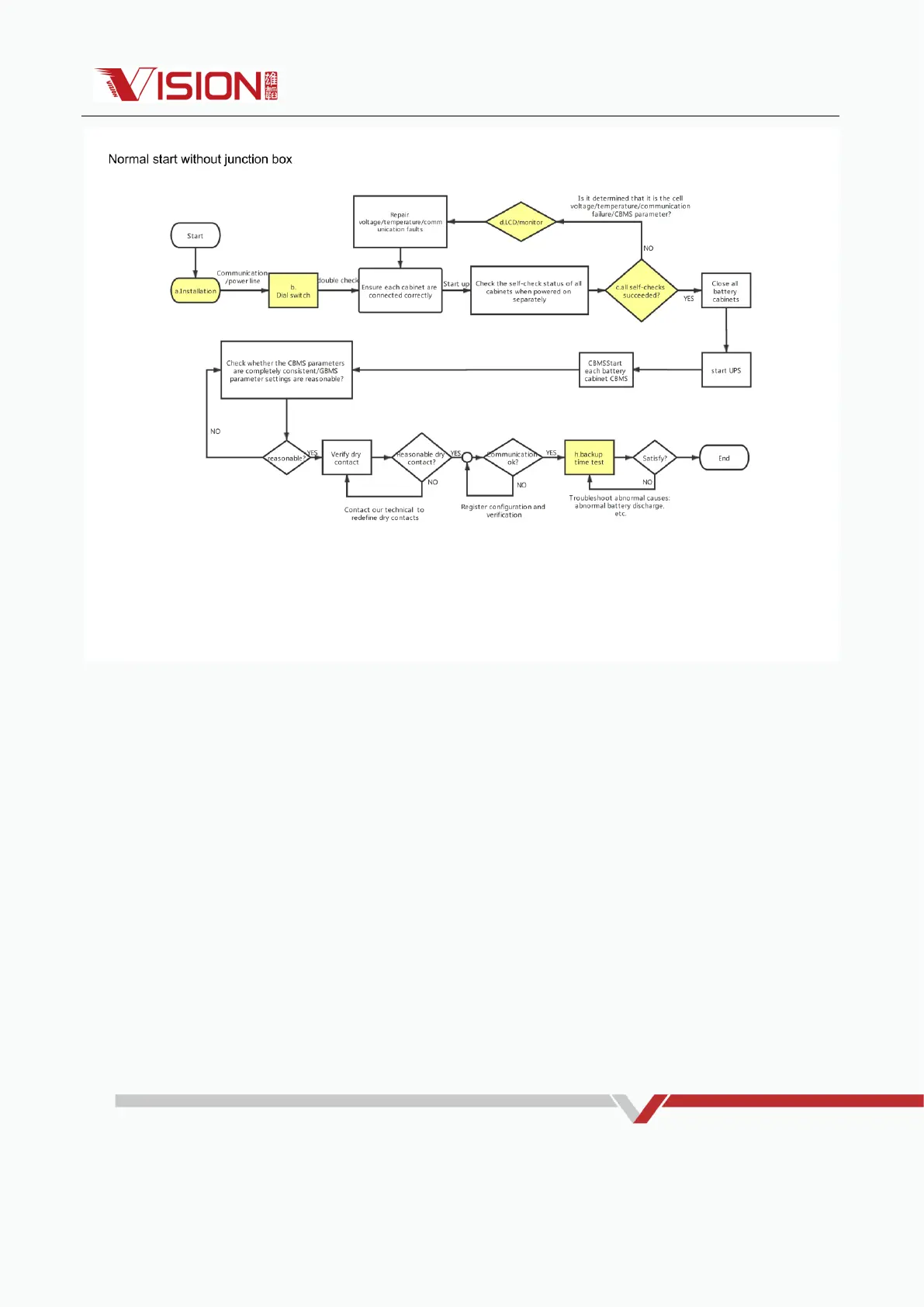

Figure 11.1-2 Normal start without junction box
Step 1: Start installing batteries, ensure the battery power cables are correctly connected
and the communications cables have an anti-freeze mechanism. Connect the cables
according to COM1/COM2.
Step 2: Before starting the system, set the DIP codes of CBMS and GBMS. Dip rules have
been put in the manual.
Step 3: Double check the connection of cabinets are corrected
Step 4: Start the cabinets. Check the self-check status of all cabinets when powered on
separately.
Step 5: When the self-test is successful, a sound will appear, and the indicator light will turn
green and keep on. Proceed to step 6.
