Visiosat VISIODATA - System Reset Procedure; Resetting All Device Settings

General reset
This function can reset all settings of clusters and attenuators to zero.

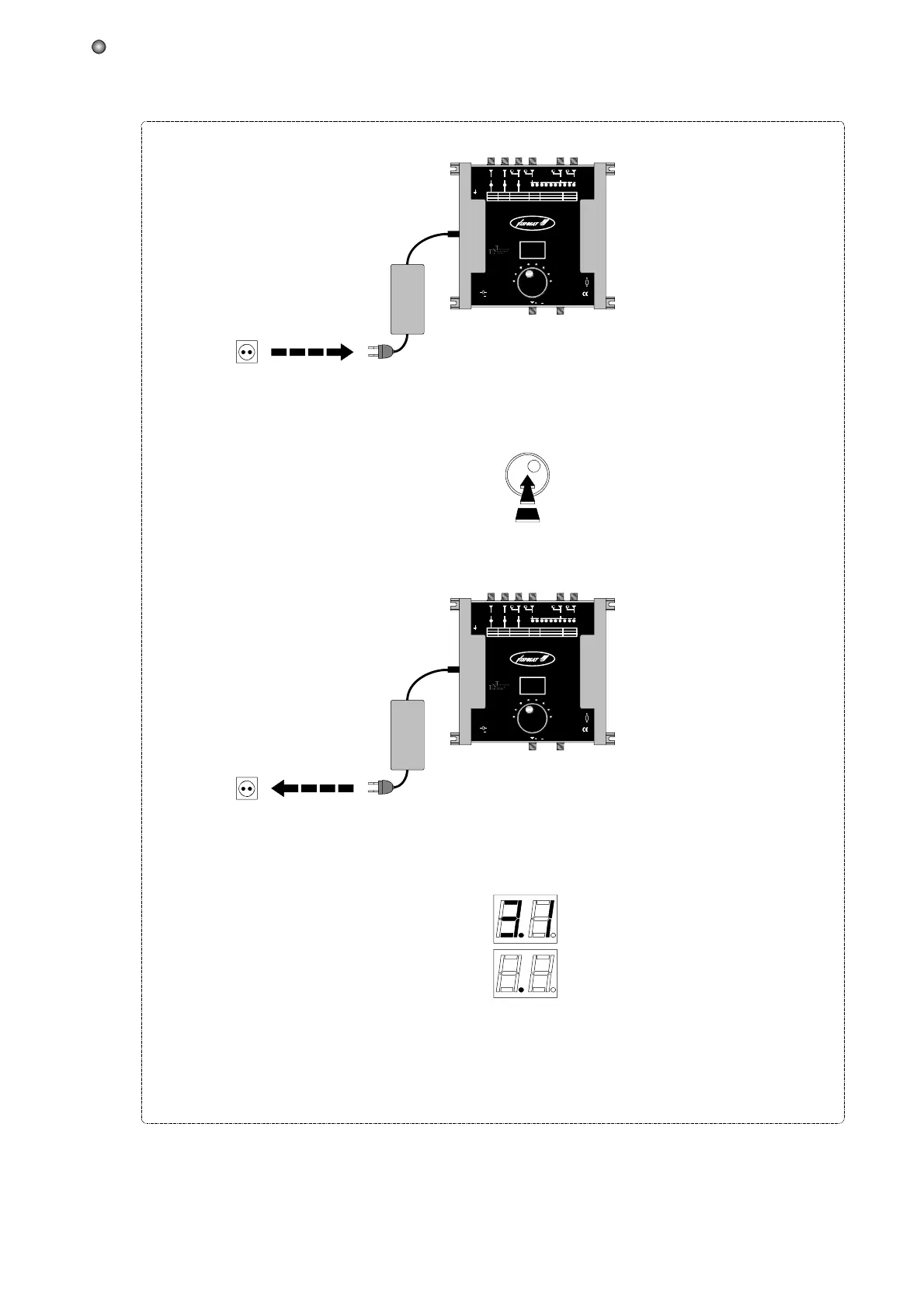

- Disconnect the mains power.
- Keep on pressing the button,
- until the mains is connected again.
- Release the button.
The software version is now displayed
followed by a dot.
