Visiosat VISIODATA - Configuring Cluster Channels

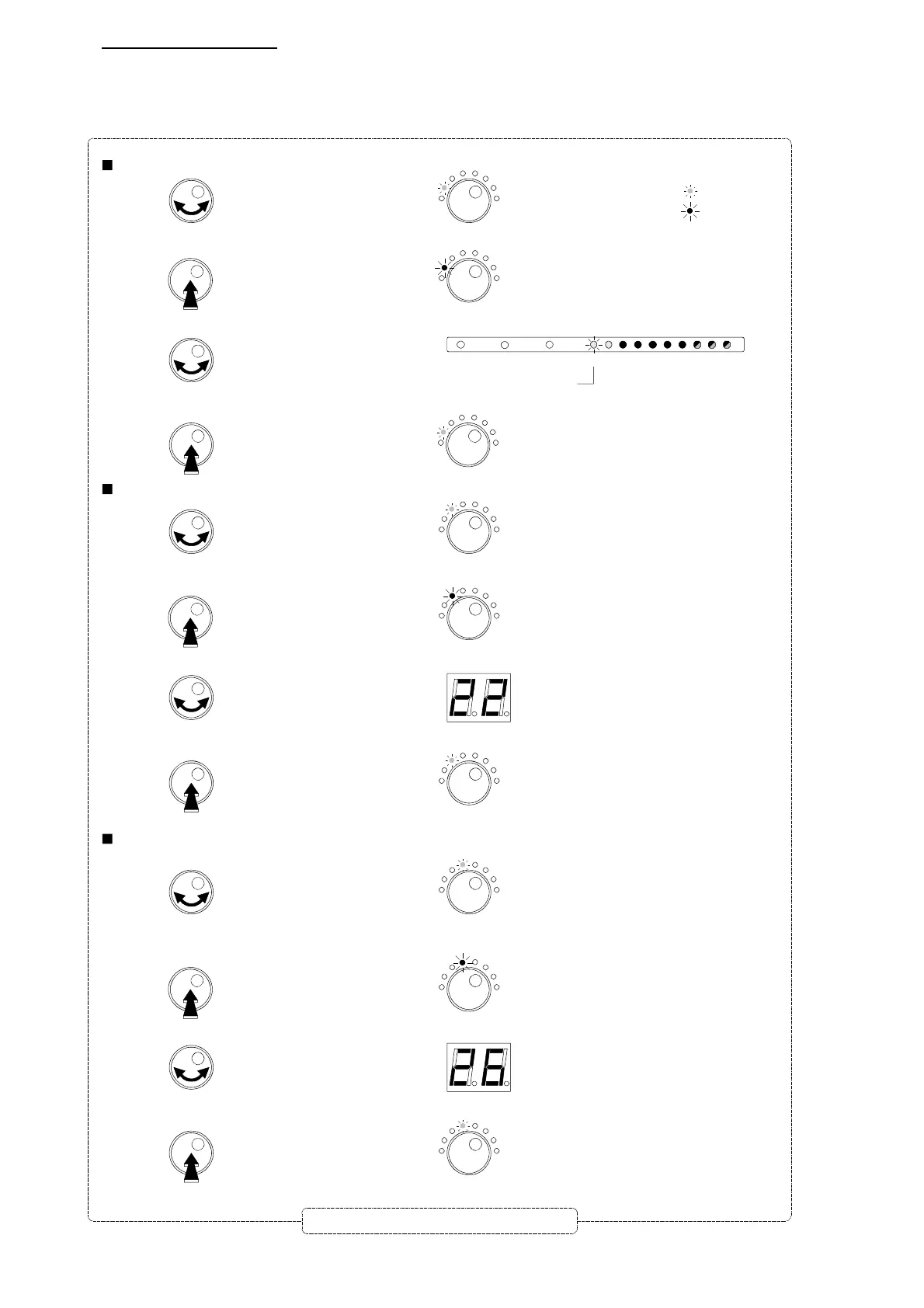

Setting channels / clusters
- Turn the button to select the Select Filter mode.
- Push the rotary button to enter the selected mode.
- Inside the mode, turn the button to select the cluster to be set.
Mode is indicated with
a GREEN colored LED.
The LED is now RED colored.
Display
= green LED
= red LED
Repeat this section to set all clusters
Each cluster has a bandwidth which can be programmed from 1 to 7 channels :
To set the channel(s) per cluster :
Select Filter
Select Filter
1 2 3 4 56 7 8 9 10
UHF Clusters
I-II III VHF-UHF
- Turn the button to select the Start Channel mode.
- Push the rotary button to enter the selected mode.
The LED is now RED colored.
Start Channel
Start Channel
- Turn the button to select the start channel
Display
- Turn the button to select the Stop Channel mode.
- Push the rotary button to enter the selected mode.
The LED is now RED colored.
Stop Channel
- Turn the button to select the stop channel
Stop Channel
Select Filter
- Push the button to confirm.
- Push the button to confirm.
Start Channel
LED n° 1
The LED is green.
The LED is green.
The LED is green.
The LED is green.
- Push the button to confirm.
The LED is green.
Stop Channel
In the following example cluster 1 is set for channel 22 to channel 26.
25
