4.2.4 Enroll/Delete Keyfob Transmitters
(Not evaluated by UL).
Keyfob transmitters are multi-button wireless CodeSecure™
transmitters. Eight system users use them for better,
quicker and safer control over various system functions.
Note: For UL installations, if MCT-234 keyfob is used
the PowerMax+ voice/speaker shall be enabled.
To enroll / delete keyfob transmitters, refer to figure 4.2.
4.2.5 Enroll/Delete Wireless Commander
(Not evaluated by UL).
The Wireless Commander (MCM-140+) is a remote control
unit that enables the user to remotely control the system.
To enroll / delete up to 8 wireless commanders, refer to
figure 4.2 (Enroll WL 1-way KP).
4.2.6 Enroll/Delete 2-Way Keypad
(Applicable for PowerMax+ revision B and above).
The 2-way keypad, type MKP-150, enables the user to
remotely control the system and also to receive data from
the system (status, alarm and trouble data). To enroll up to
two 2-way keypads, refer to figure 4.2.
4.2.7 Enroll/Delete Wireless Siren
The wireless siren is a remote siren that is activated upon
predefined events by the PowerMax+ system. To enroll /
delete up to 2 wireless sirens, refer to figure 4.2.
4.3 DEFINING ZONE TYPES, NAMES & CHIME ZONES
This mode allows you to assign one of 12 zone types to
each of the system's 30 (wireless & wired) zones. In
addition, it also allows you to assign a name to each zone
and determine whether the zone will operate as a chime
zone (only while the system is in the disarmed
or Home
arming state). When a chime zone is triggered, chime
melody or zone name is heard (there are 3 selectable
chime modes - Melody chime, Zone Name Chime or Chime
Off).
A list of factory defaults is printed on table 1. You may fill
out the blank columns even before you start and proceed
to program according to your own list.
Remember!
A delay zone is also a perimeter zone by definition.
Zone types are fully explained in Appendix D.
For UL installations, hard wired zones are not intended
to be used as FIRE zones.
Selectable Zone Names
Dining room
Downstairs
Emergency
Fire
Front door
Garage
Garage door
Guest room
Hall
Kitchen
Laundry room
Lving room
Master bath
Master bdrm
Office
Upstairs
Utility room
Yard
Custom 1
Custom 2
Custom 3
Custom 4
Custom 5
Attic
Back door
Basement
Bathroom
Bedroom
Child room
Closet
Den
31 zone names can be selected, 26 fixed names and 5
custom names (defined by the installer - see chap. 4.8):
Zxx: CHIME
Zone name-chime
(**)
OK
OK
ZONE No
: - -
Zxx: TYPE -
[Zone No.] (e.g. 05)
OK
NEXT
1. Inter-follow
2. Perimeter
OK
Melody-chime
Chime off
Zxx: NAME - -
NEXT
OK
Attic
Back door
Basement
Bathroom
Bedroom
Child room
Closet
OK
OK
OK
(*)
(*)
(*)
4. Delay 1
5. Delay 2
6. 24h silent
7. 24h audible
8. Fire
9. Non-alarm
10. Emergency
3. Perim-follow
(see list above)
OK
OK
OK
11. Gas
12. Flood
13. Interior
(First display is READY
or NOT READY)
3. DEFINE ZONES
READY 00:00
NORMAL MODE
NEXT
[installer code]
USER SETTINGS
ENTER CODE
2.
ENROLLING
5.
DEFINE COMM
INSTALLER MODE
NEXT
NEXT
NEXT
NEXT
OK
NEXT
NEXT
NEXT
<OK> TO EXIT
10. DIAGNOSTICS
NEXT
8.
DEFINE OUTPUTS
NEXT
9. RECORD SPEECH
11. USER SETTINGS
12. FACTORY DEFLT
13. SERIAL NUMBER
14. START UL/DL
NEX
T
NEX
T
NEXT
NEXT
NEXT
NEXT
6.
DEFINE GSM
NEXT
7.
DEFINE PWRLNK

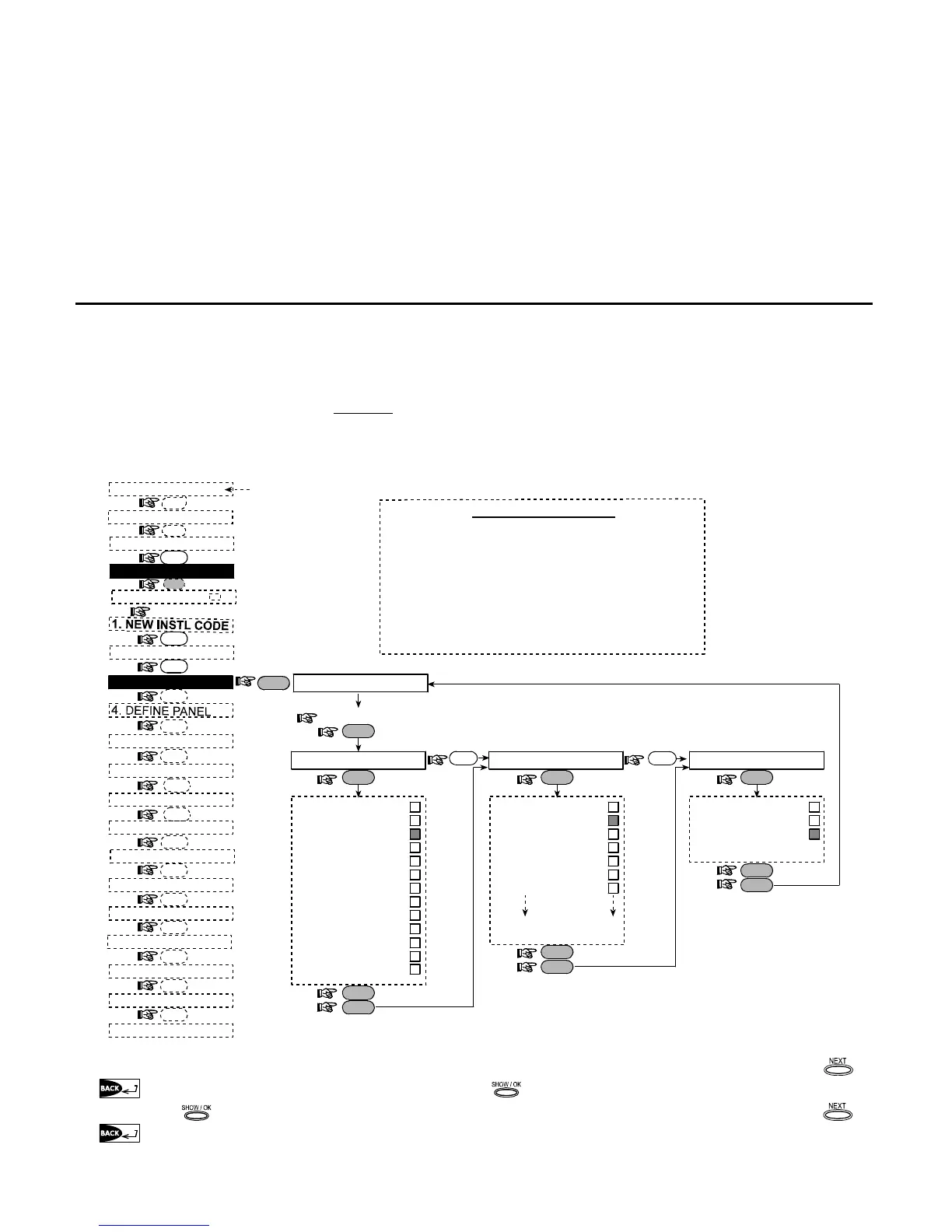

Figure 4.3 - DEFINE ZONES Flow Chart
