Visonic POWERMAX+ Installer's Guide

30 DE5467IP
C. MCT-100 Wireless Adapter for Wired Detectors
(not UL-Listed) MCT-100 is a PowerCode
device used mainly as a wireless adapter
for 2 regular magnetic switches installed on
2 windows in the same room. It has two
inputs, behaving as separate wireless
transmitters with different PowerCode IDs.
Each input sends (or does not send) a
“restored“ message to the alarm system,
depending on the setting of an on-board
“DIP” switch.
MCT-100
D. Wireless Smoke Detector
MCT-430 (UL-listed). A
photoelectric smoke detector
equipped with a PowerCode-type
transmitter. If enrolled to a fire zone,
it initiates a fire alarm upon
detection of smoke.
MCT-430
E. Glass Break Detector MCT-501
(not UL-Listed). An acoustic detector
equipped with a PowerCode-type
transmitter. Since it restores automatically
after detection, this unit does not send a
restoral message to the control panel.
MCT-501
E2 PowerMax+ Compatible Transmitters
Note: Each transmitter is packed with its own instructions
for battery installation and use. Be sure to pass these
documents on to the “Master User“ of the alarm system.
The PowerMax+ system is compatible with multi-button
and single button key-ring and hand-held transmitters that
use PowerCode and CodeSecure coding methods.
Multi-button PowerCode transmitters transmit the same
code each time the same button is pressed. They can be
used for emergency signaling, for activating the PGM
output or for controlling appliances via X-10 units. They
can not be used for arming / disarming.
CodeSecure transmitters are of the rolling code type - they
transmit a new code each time the same button is pressed.
This provides a higher security level, especially in arming /
disarming applications, because the code can not be
copied (“grabbed”) by unauthorized people.
Following are the basic details of several compatible
transmitters. The possible applications for each push-
button are indicated in each drawing.

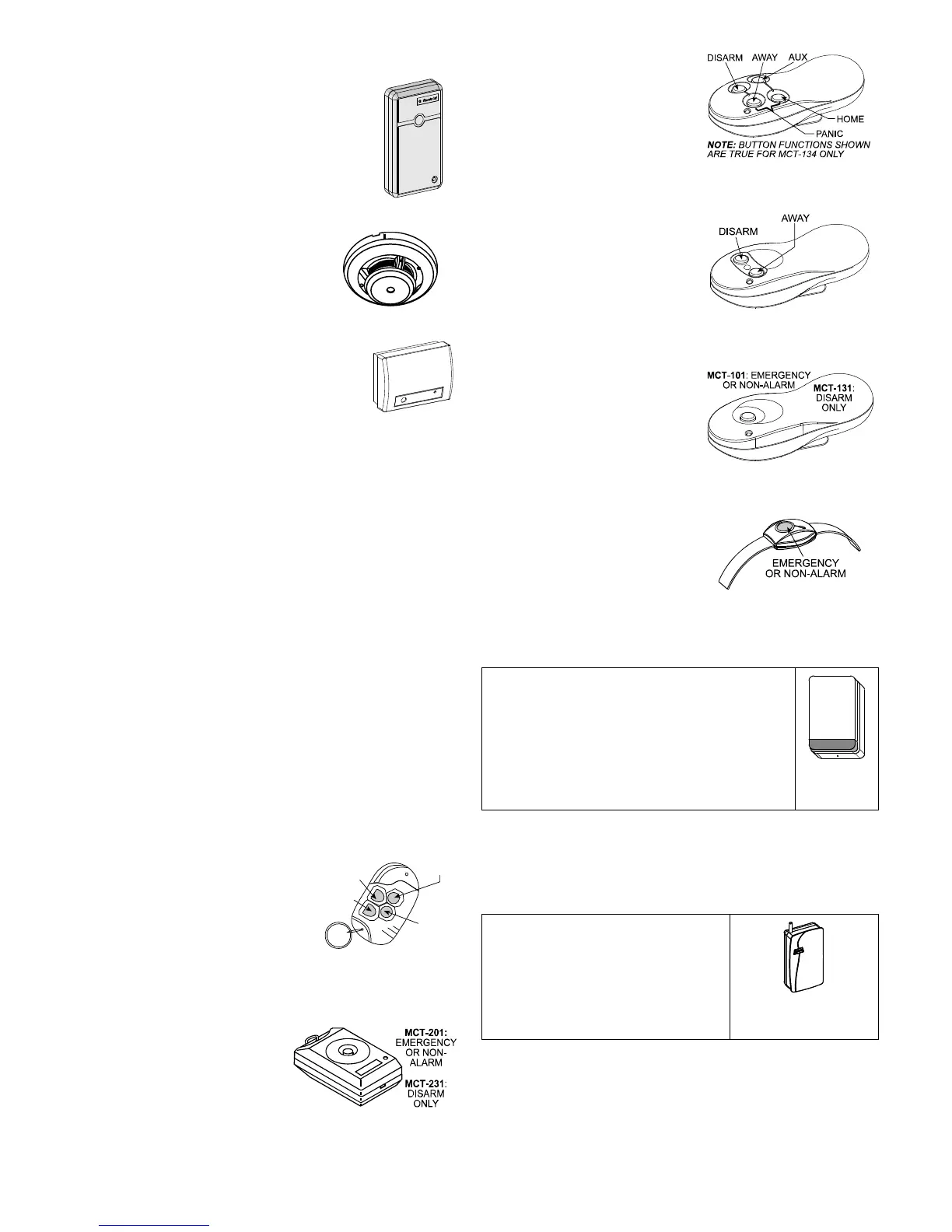

A. MCT-234
‘Keyfob’ transmitter - one unit is
supplied with PowerMax+. You
can program the AUX (auxiliary)
button to perform various tasks,
in accordance with the user’s
needs.
Pressing AWAY and HOME
together for 2 sec. initiates
PANIC alarm. Pressing AWAY
twice within 2 sec. initiates
Latchkey arming.
DISARM
AWAY
AUX
HOME
MCT-234
B. MCT-231 / 201*
(N.A. in North America)
Single-button pendant units.
The MCT-231 (Code-
Secure) and the MCT-201
(PowerCode) can be enrolled
to perform functions as
shown. Both units look alike.
MCT-231 / 201
* Not UL listed.
C. MCT-134 / 104*
(N.A. in North America)
4-button hand-held units. MCT-
134 (CodeSecure) can replace
the MCT-234 keyfob. MCT-104
(PowerCode) can perform
emergency and non- alarm
functions. Both units look alike.
MCT-134 / 104
D. MCT-132 / 102*
(N.A. in North America) 2-
button units. MCT-132
(CodeSecure) can perform
functions as shown.
MCT-102
(PowerCode) can perform
emergency and non-alarm
tasks. Both units look alike.
MCT-132 / 102
E. MCT-131 / 101*
(N.A. in North America) Single-
button units. The MCT-131
(CodeSecure) and the MCT-
101 (PowerCode) can be
enrolled to perform functions as
shown. Both units look alike.
MCT-131 / 101
F. MCT-211*
Water-proof,
wrist-worn Power
-Code transmitter. Can be
enrolled to perform
emergency or non-alarm
functions.
MCT-211
* Not UL-listed - not to be used in UL-listed systems
E3 PowerMax+ Compatible WL Siren
The MCS-700 (*) wireless siren can be
integrated with the PowerMax+ in areas in
which wiring action is difficult or impossible.
The MCS-700 is a fully supervised, 2-way
communication device (it includes a receiver,
to receive activation commands from the
alarm system, and a transmitter to periodically
transmit its status signal to the alarm system).
Wireless
Siren
When an identifiable activation command is received from
the PowerMax+, the siren activates its sounder and the
flash light (strobe light every 1.5 seconds).
* Not UL-listed - not to be used in UL-listed systems
E4. PowerMax+ Compatible GSM Modem
The GSM modem enables the
PowerMax+ system to operate over
a cellular network. For details
regarding the GSM modem
features and connections, refer to
the GSM Modem installation
instructions.
GSM Modem

Visonic POWERMAX+ Specifications

General

Type	Wireless Security System
Zones	30
Communication	PSTN
Keypad	Yes
Siren	Built-in
Remote Control	Yes
Wireless Frequency	868 MHz
Keypads	Up to 8
Humidity	Up to 85% non-condensing
