16 DE5467IP
(See note)
Note
The currently saved options
are displayed with dark box
at the right side of the display.
To review the options,
repeatedly click NEXT or
BACK until the desired option
is displayed, then click OK (a
dark box will be displayed at
the right side).
NEXTNEXT
OK
22: PAGER TEL #
xxxxxxxxxxxxxxxx
(Enter Tel. No.)
OK
OK
23: PAGER PIN #
xxxxxxxxxxxxxxxx
(Enter PIN No.)
OK
24: REPORT PAGER
all
alarm +alert
all (-op/cl)
trbl + op/cl
trbl
op/cl
disable report
NEXT
NEXT
NEXT
NEXT
NEXT
OK
13: SEND 2WV CODE
send
don’t send
OK
(See note)
11: REPORT CNTR
OK
all - o/c
*
backup
all
*
all
all - o/c
*
all - o/c
all - o/c
*
o/c
all (-alrt)
*
alrt
alrm
*
all (-alrm)
disable report
all
*
backup
OK
(See note)
NEXT
NEXT
NEXT
NEXT
NEXT
07: 2ND CNTR TEL
OK
xxxxxxxxxxxxxxxx
(Enter Tel. No.)
OK
(See note)
08: 2ND ACCOUNT #
xxxxxx
(Enter account No.)
(See note)
(See appendix .- code list)
OK
09:REPORT FORMAT
contact ID
SIA
4/2 1900/1400
4/2 1800/2300
Scancom
OK
(See note)
10: 4/2 PLS RATE
OK
10 pps
20 pps
33 pps
40 pps
OK
(See note)
21: TEL ACKNWLDGE
single ack
all ack
OK
OK
20: REPORT PRVT
all
all (-op/cl)
all (-alerts)
alarms
alerts
op/cl
disable report
OK
19: PRVT ATTEMPTS
1 attempt
2 attempts
3 attempts
4 attempts
OK
OK
18: VOICE PRVT
enable two-way
disable two-way
OK
NEXT
NEXT
OK
2 attempts
4 attempts
8 attempts
12 attempts
16 attempts
16: DIAL ATTEMPTS
OK
(See note)
OK
1 minute
3 minutes
5 minutes
10 minutes
15: RINGBACK TIME
OK
(See note)
OK
time out 10 s
time out 45 s
time out 60 s
time out 90 s
time out 2 m
ring back
disable
14: VOICE C.S.
OK
(See note)
NEXT
17: SET PRVT TEL#
OK
1st private tel#
2nd private tel#
3rd private tel#
4th private tel#
OK
xxxxxxxxxxxxxxxx
(Enter Tel. No.)
OK OK
NEXT
NEXT
12: RPRT CNF ALRM
enable report
disable report
(See note)
enable + bypass
NEXT
06: 1ST ACCOUNT #
OK
xxxxxx
(Enter account No.)
OK
(See note)
NEXTNEXT
OK
05: 1ST CNTR TEL
xxxxxxxxxxxxxxxx
(Enter Tel. No.)
(See note)
OK
NEXT
OK
02:AUTOTST CYCLE
OK
01: AUTOTEST TIME
OK
Test time 12:00 P
(Enter test time)
OK
OK
03:AREA CODE
OK
04: OUT ACCESS No
OK
xxxx
(Enter tel. area
code, up to 4-digit)
x
(Enter ext. tel. line
access code, 1-digit)
OK
OK
OK
OK
OK
OK
OK
NEXT
NEXT
25: RECENT CLOSE
OK
recent cl. on
recent cl. off
OK
OK
27: MAST. DL CODE
OK
26:REMOTE ACCESS
rem. access on
rem. access off
OK
28: INST. DL CODE
OK
30: ZONE RESTORE
OK
report restore
don’t report
OK
NEXT
32: DIAL METHOD
tone (dtmf)
pulse
OK
OK
OK
31: UPLOAD OPTION
when system OFF
any time
OK
NEXT
35: SYS INACT REP
disable
rep after 7d
34: UL/DL TEL #
OK
OK
OK
OK
rep after 14d
rep after 30d
rep after 90d
xxxxxxxxxxxxxxxx
(Enter Tel. No.)
NEXT
NEXT
OK
OK
OK
33: LINE FAIL REP
don’t report
immediately
OK
OK
5 minutes
30 minutes
60 minutes
180 minutes
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
test every 1d
test every 5d
test every 7d
test every 14d
test every 30d
test OFF
xxxx
downl. code AAAA
(Enter 4-digit code)
(”0000” is not valid)
xxxx
downl. code BBBB
(Enter 4-digit code)
(”0000” is not valid)
4. DEFINE PANEL
NEXT
5. DEFINE COMM
NEXT
<OK> TO EXIT
NEXT
USER SETTINGS
NEXT
ENTER CODE
1. NEW INSTL CODE
NEXT
2. ENROLLING
NEXT
3. DEFINE ZONES
NEXT
OK
INSTALLER MODE
[inst. code] (see
note
)
NEXT
READY 00:00
NORMAL MODE
OK
Note
For Control Panel that has
installer code
&
master
installer code
,
the following
functions are available only if
the MASTER INSTALLER
code is entered:
05: 1ST CNTR TEL
06: 1ST ACCOUNT #
07: 2ND CNTR TEL
08: 2ND ACCOUNT #
09: REPORT FORMAT
10: 4/2 PLS RATE
11: REPORT CNTR
12: RPRT CNF ALRM
13: SEND 2WV CODE
14: VOICE C.S.
15: RINGBACK TIME
16: DIAL ATTEMPTS
27: MAST. DL CODE
OK OK
NEXT
36:RING BACK COD
OK
xxxxxx
(Enter 6-digit code)
OK
NEXT
37:RECEIVER #
OK
xxxx
(Enter 4-digit number)
OK
NEXT
Applicable for USA only
Not applicable
in the USA
38:AMBIENT LEVEL
OK
OK
Applicable for USA only
high
low
NEXT

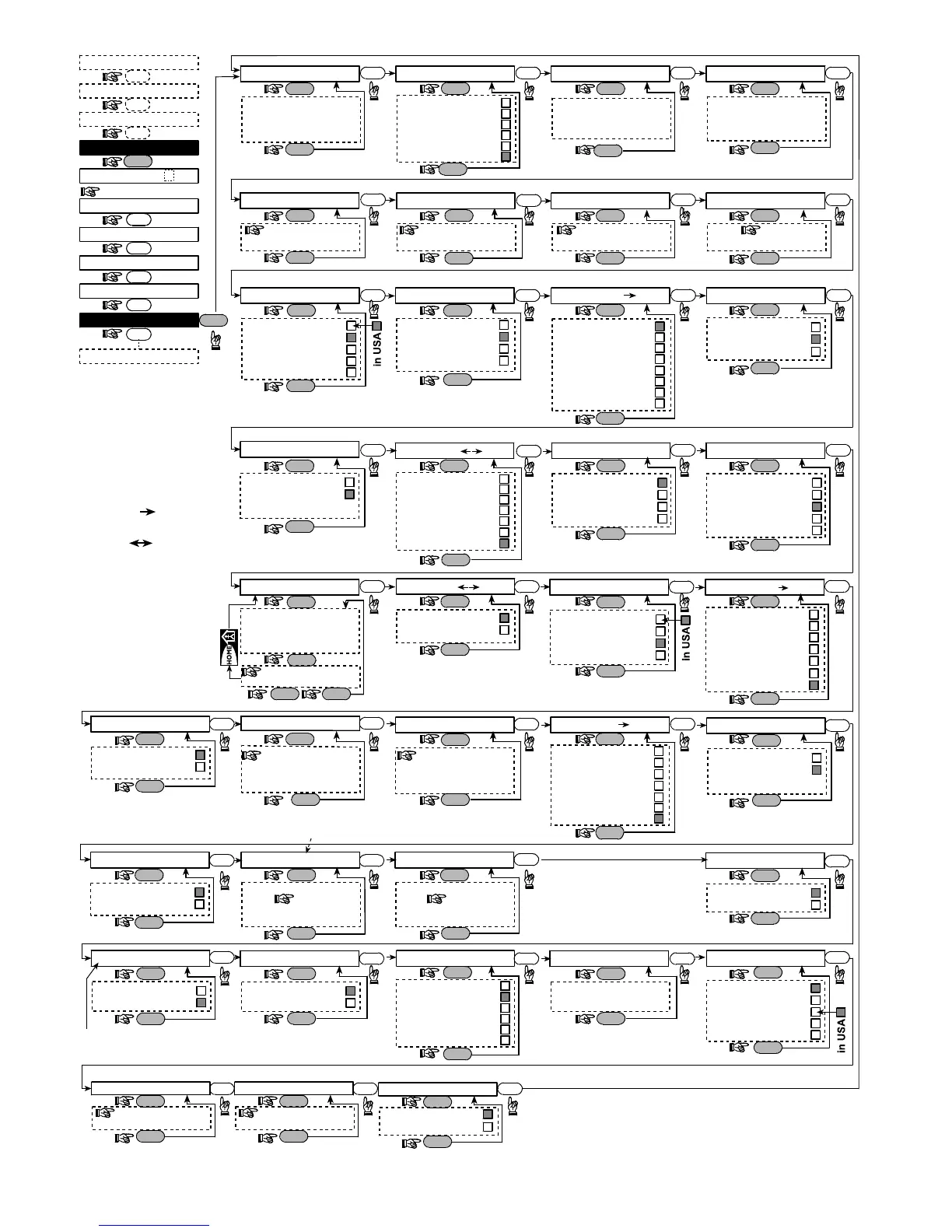

Figure 4.5 - DEFINE COMM Flow Chart
